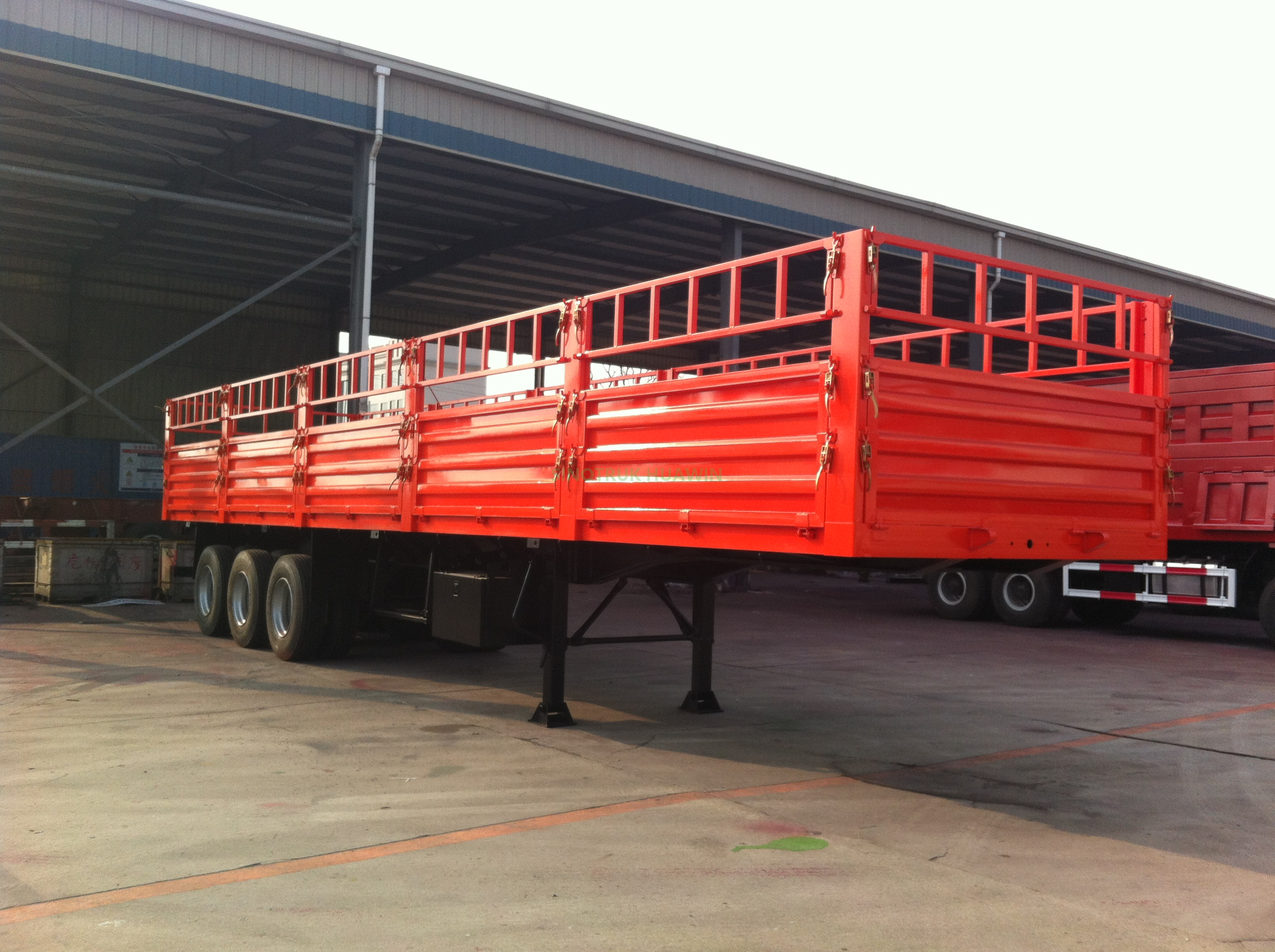

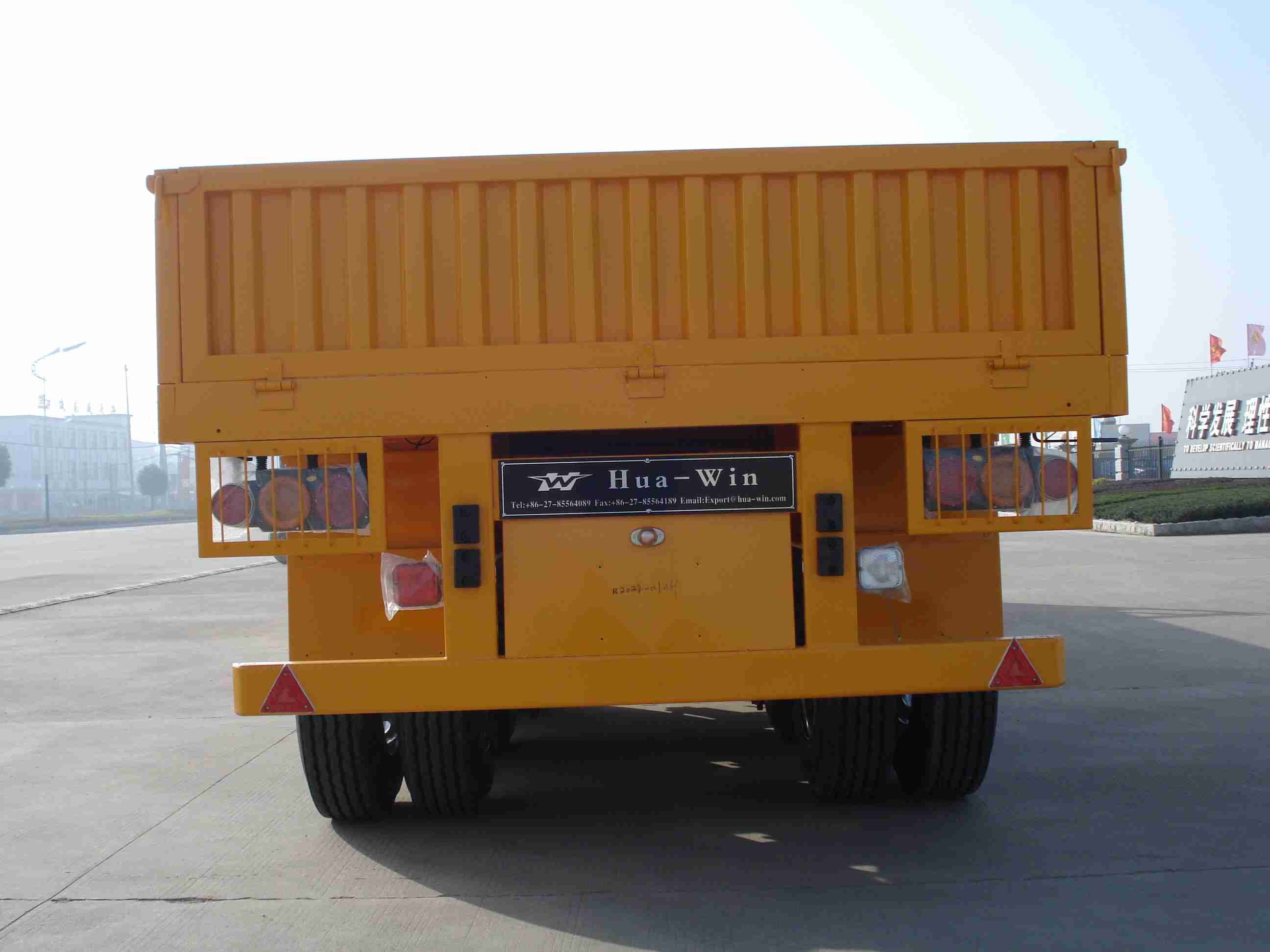

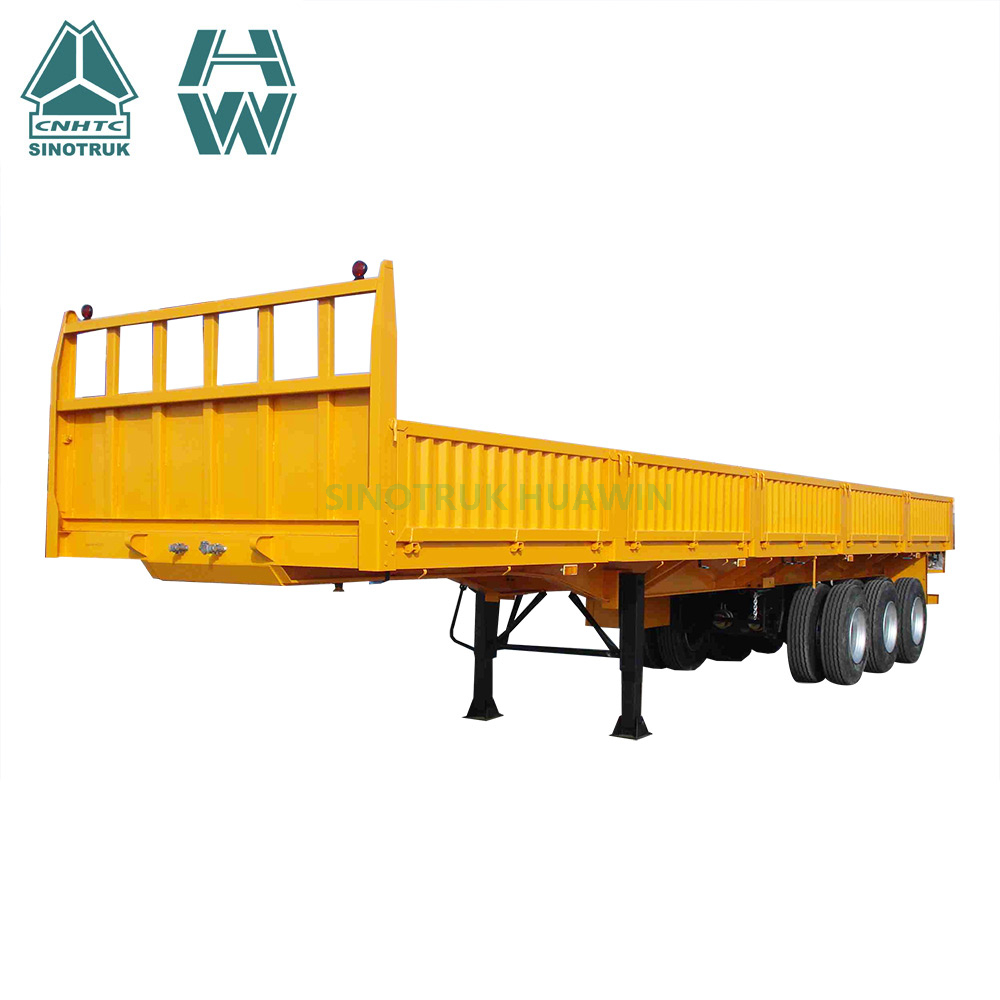

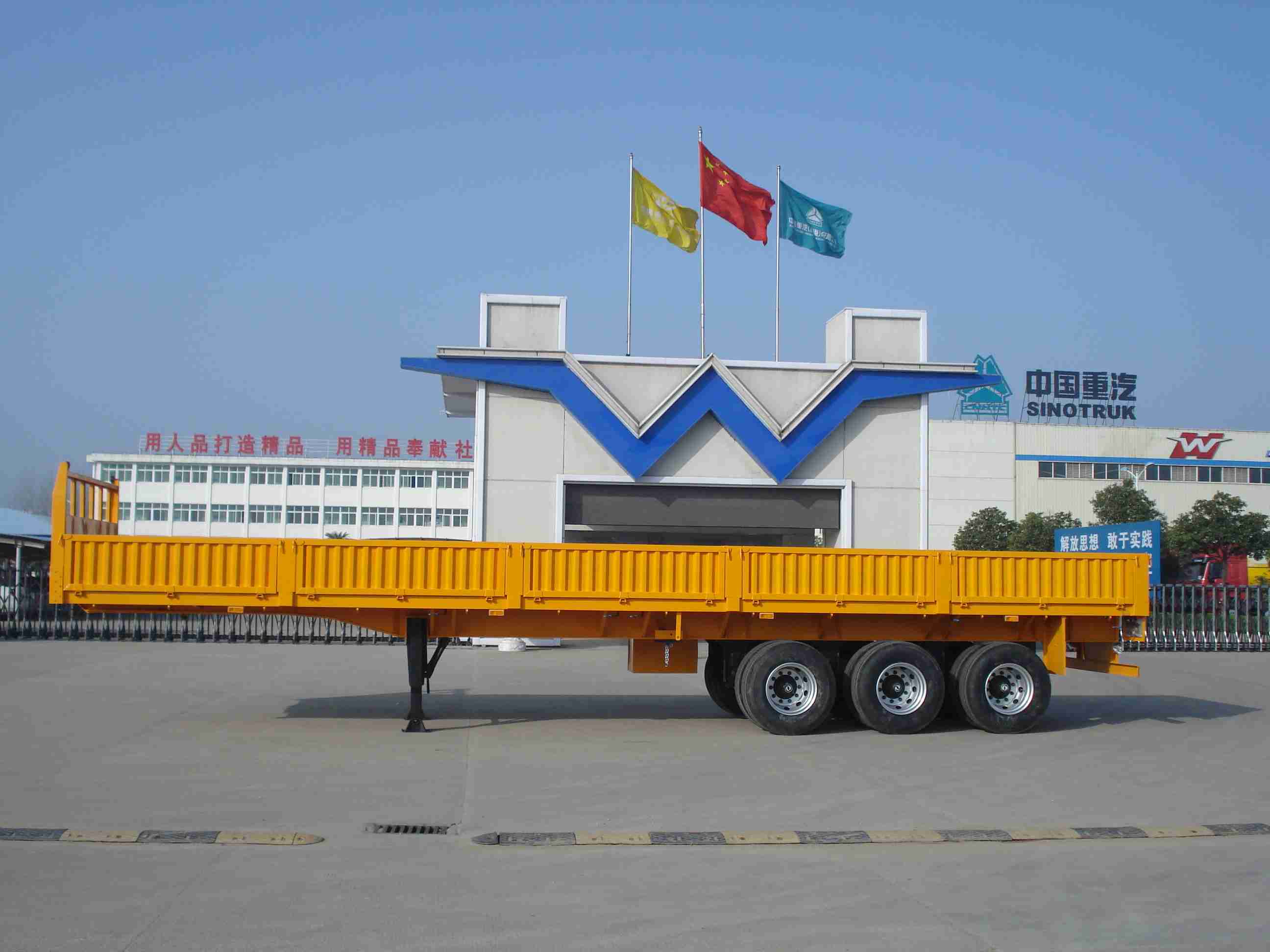

SINOTRUK 40FT 3 Axles Wall Side Semi Trailer

Sinotruk utility 40FT 3 axles side wall semi trailer with heavy duty and extra durability designed I beam is your best choice for long and short distance logistics.40FT 3 axles side wall semi trailer special used in logistic industry, with high loading capacity, light self-weight, it's a high cost effective product.
Availability:
Quantity:
  • SGZ
  • Sinotruk
Specifications for the trailer

DIMENSIONS

Tare  Weight 8500kg
Overall  Length 12400mm
Overall  Width 2480mm
Payload 45000kg
SPECIFICATIONS


I Beam& Chassis

Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B,

welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm;

Middle Flange 6mm,Height 500mm, Bottom Flange 16mm,width 140mm.


Axle

3 axles
BPW/ FUWA/HJ/L1 Brand 12 ton
Suspension Heavy duty mechanical suspension
Floor 3mm checker plate
Leaf Spring 13 piece Leaf spring for heavy loading
King Pin JOST brand 2” Bolt-in King Pin
Landing Gear JOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim 9.0-22.5 wheel rim ,13 pieces
Tire  12R22.5 tire with one spare tire, 13 pieces
Twist Lock

12 nos. of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container,

the retractable central locks can be laid down.

Spare Tire One set of spare tire including a carrier
Braking System WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories One standard tool box

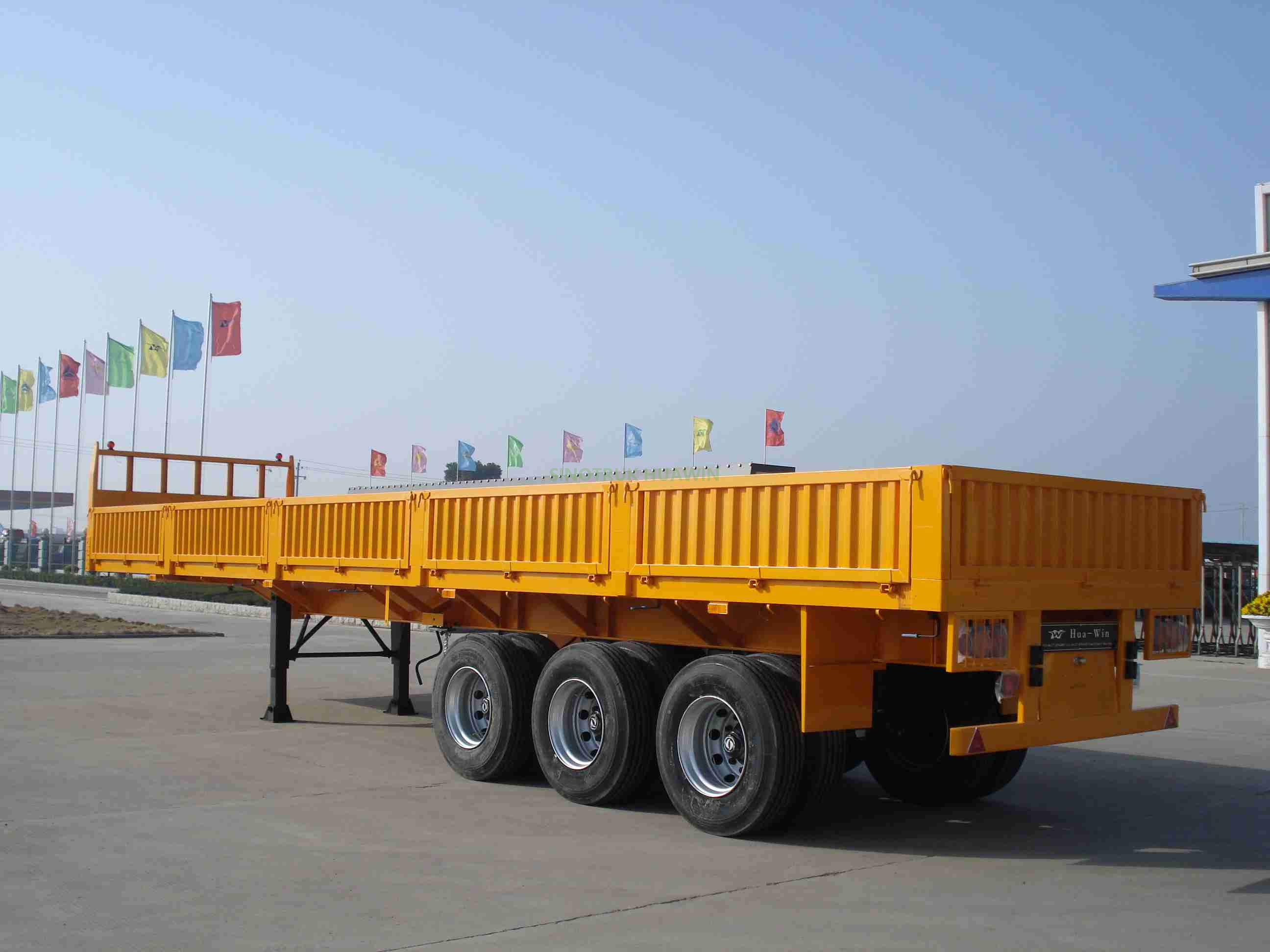

3-Axle Wallside Semi Trailer(3)

Our Advantage

1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers


Warranty

1. One year quality guarantee for three key parts axles, engine, transmission or within 100000km, which comes the first.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);

5.Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.
