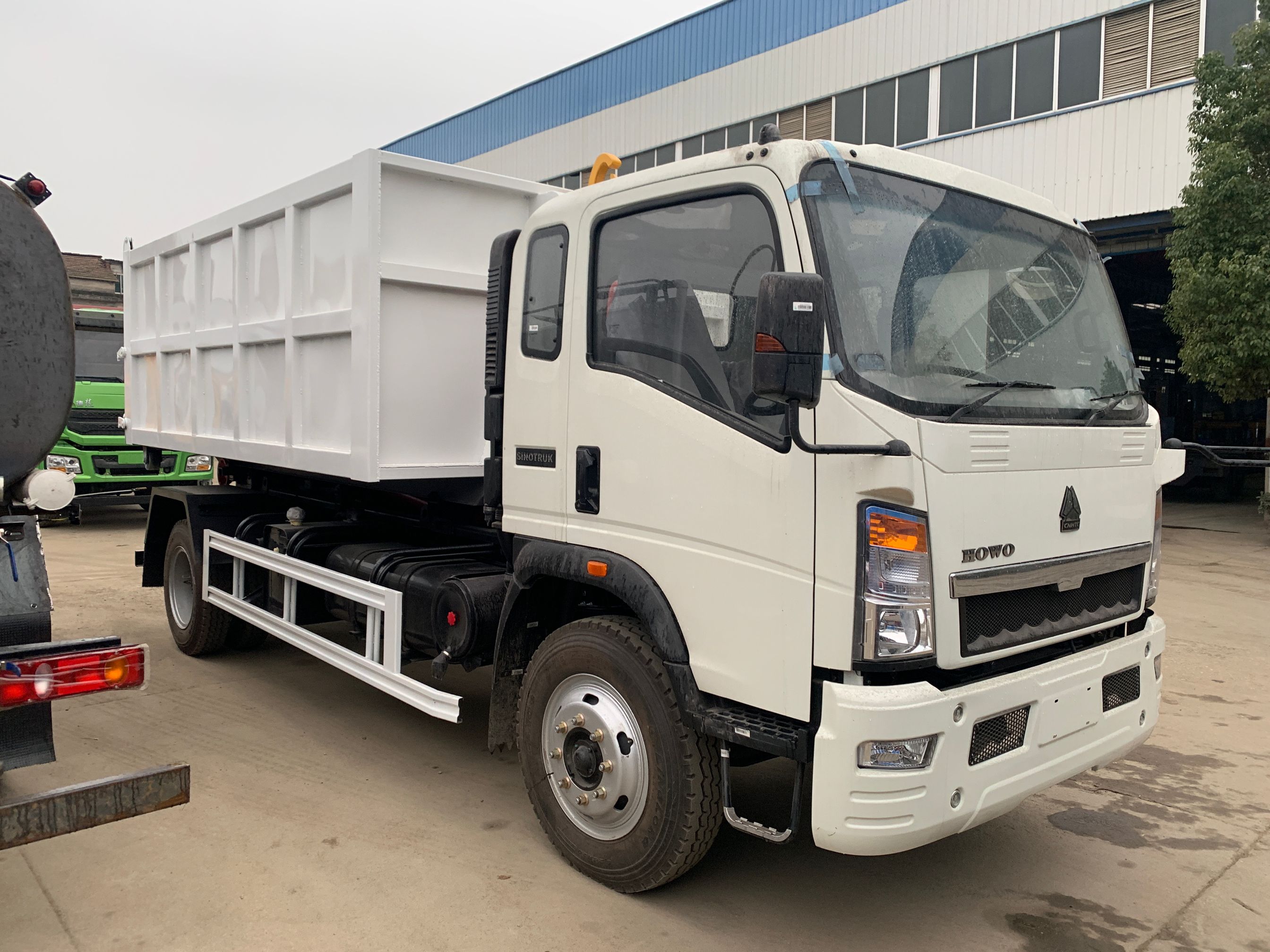

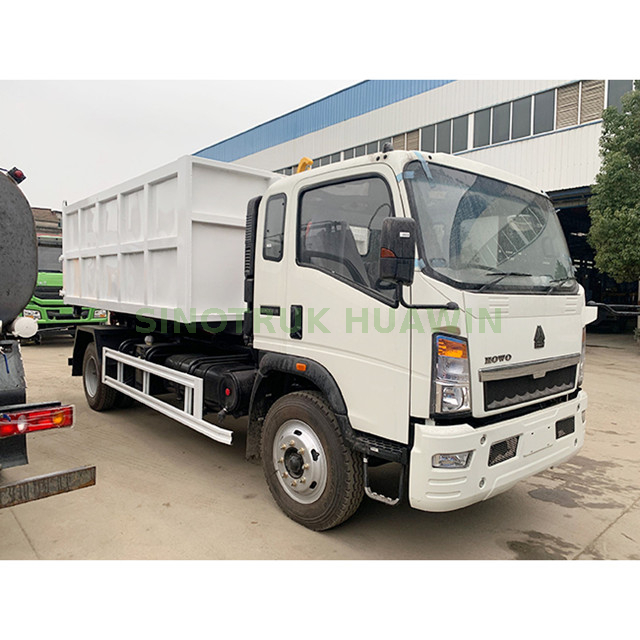

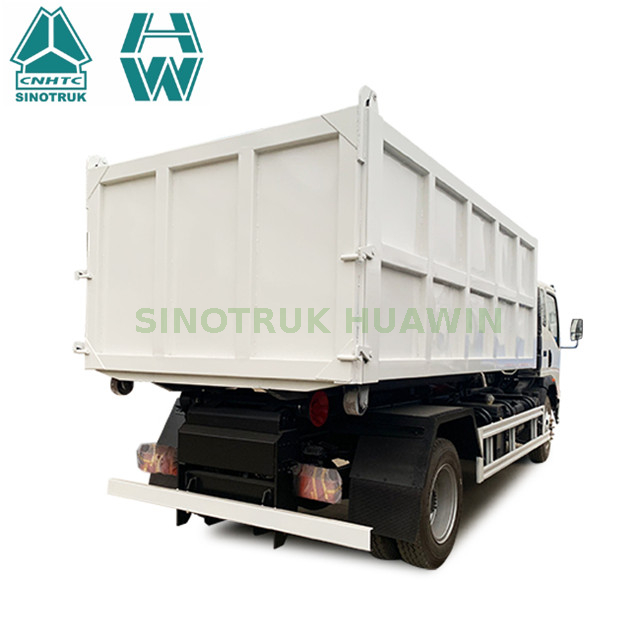

SINOTRUK 4X2 Hook lift Arm Garbage Truck

SINOTRUK hook lift garbage truck is mainly suitable for garbage collection and transportation of coal mines,It can work in municipal sanitation, property management, large factories, industry and other places. The overall length of the truck is 6900 mm, and the tare weight is 4.8 ton.
The full hydraulic control operating system is adopted which can completely separate the garbage from the chassis. The patented technology of the utility model can realize the combined operation of one vehicle and multiple garbage carriages, circular transportation, and fully improve the transportation capacity of the vehicle. One truck can carry multiple boxes, which is efficient, energy-saving and cost-saving. It can be equipped with several garbage transfer boxes according to user's requirements. The transfer box can be used as a simple, beautiful and environmentally friendly garbage transfer station, which maximizes the efficiency of the vehicle.
Quantity:

SINOTRUK 4X2 Hook Lif Arm Garbage Truck

Cabin

Driving type 4x2 LHD

1880mm width cabin with 2seats, and one bed

With A/C

70°tillable to the front. as attached photo for ref only


Vehicle Main Dimensions

Overall size (L x W x H)mm

6900x2500x3350

Wheel base (mm)

3360

Weight in KGS

Tare Weight

4800

payload

5000

Front axles loading capacity

1x3200

Rear axles loading capacity

1x7200

Engine

Brand

YUNEI

Model

YN4102QBZL

Type

Diesel, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

116HP

Emission standard

Euro II

Gearbox

WLY6T46 gear box, with 6 forward and 1 reverse

Steering Gear

Power steering

Clutch

Booster clutch

Oil tank

120L

Tire

7.00R16 radial tires ,7pcs including 1 spare tire.

Hool lift

Hook lift arm with hydraulic lifting system for 10 tons

Dust bin

Carbon steel dust bin size: 6900X2600X2360


Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.


Our Advantage


1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers


Warranty


1. Six months quality guarantee for three key parts axles, engine, transmission or within 50000km, which comes first.

2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);

5.Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.
