| Quantity: | |
|---|---|
ZZ4257N3247
SINOTRUK HOWO

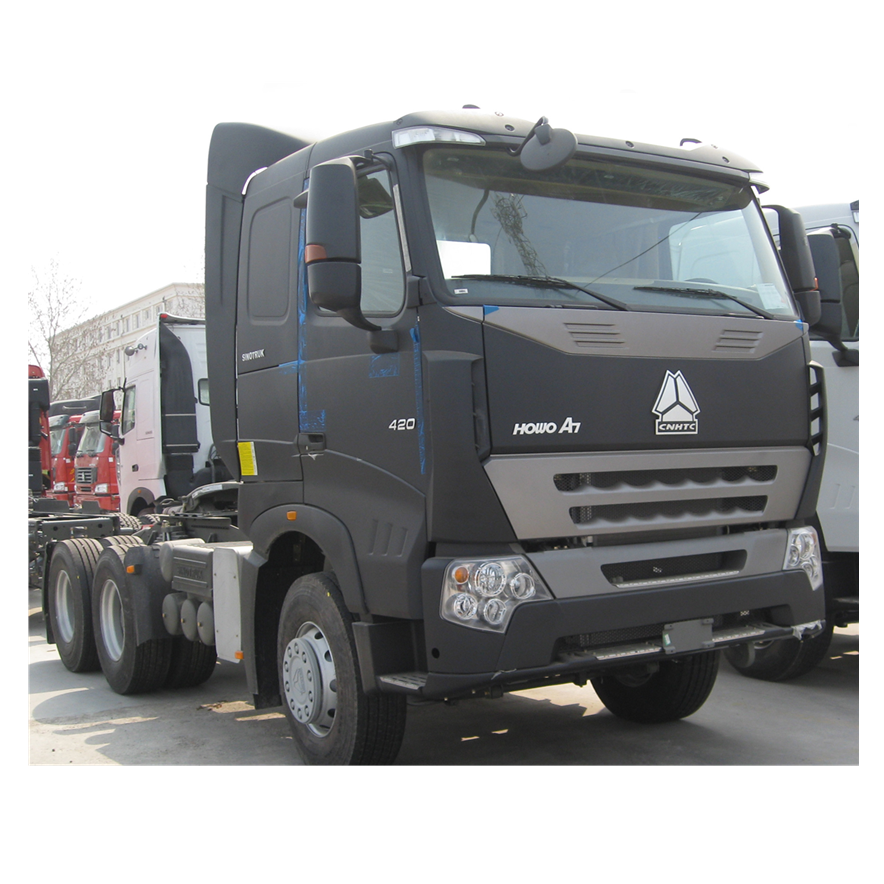

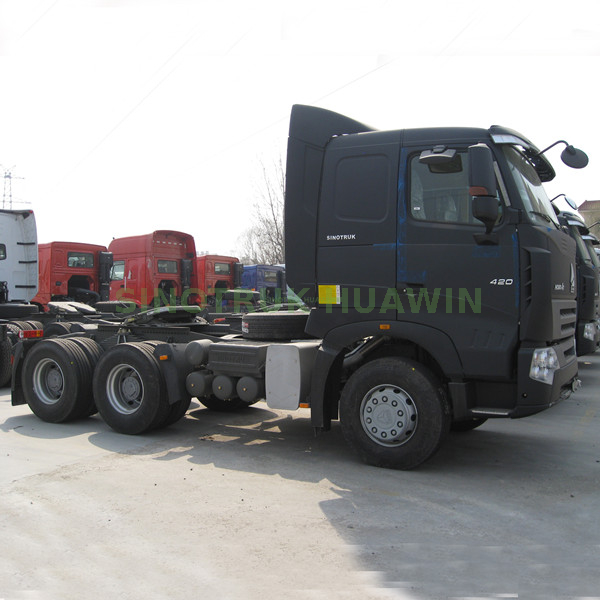

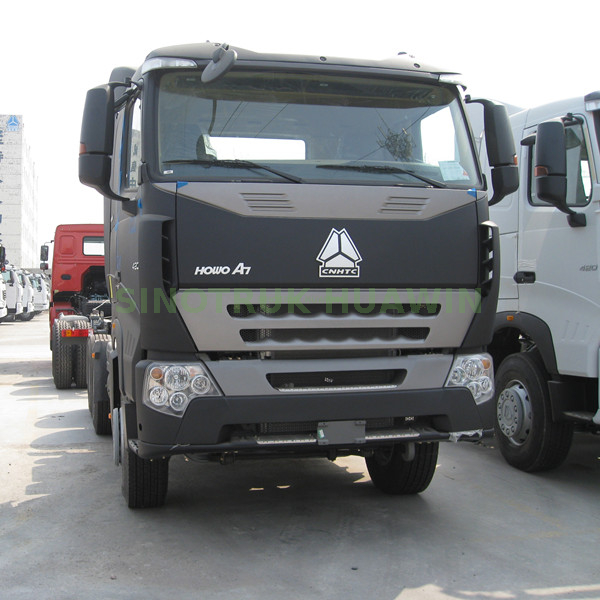

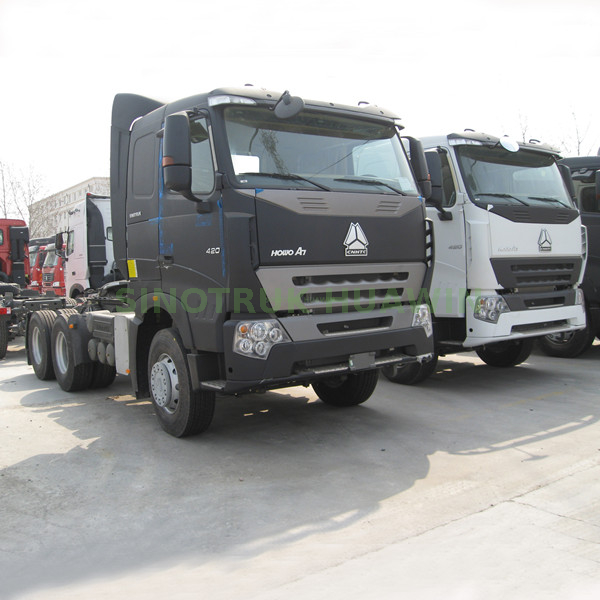

SINOTRUK 6X4 HOWO A7 Tractor Truck CNG 420HP
Cabin | Driving type 6x4 LHD ZZ4257N3847C1CB |
|
A7 Standard cab, with two seats and two beds, with Air Condition, 70°hydraulically tillable to the front as attached photo for ref. | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 7550x2580x3850 |
Wheel base (mm) | 3825+1350 | |
Wheel track (front/rear) (mm) | 2041/1830 | |
Weight in KGS | Tare Weight | 9210 |
Hauling Capacity | 45000 | |
Front axles loading capacity | 1x7000 | |
Rear axles loading capacity | 2x16000 | |
Max. driving speed（km/h） | 102 | |
Engine | Brand | Sinotruk |
Model | T12.42 | |
Type | 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power（HP) | 420HP | |
Emission standard | Euro III | |
Gearbox | HW19712, 12 Forwards gear & 2 reverse gear | |
Clutch | Reinforced diaphragm clutch, diameter 430mm | |
Steering Gear | ZF 8118,power steering, hydraulic steering with power assistance | |
Fuel tank (L) | 400 | |
Tire | 12.00R20, in total 11 pcs including one spare | |
Fifth wheel | 90mm | |
Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake | |
ABS | With ABS | |
Cylinder | 8*150L, Safety valve, ECER110 certified, with protective cover for all gas circuit | |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
