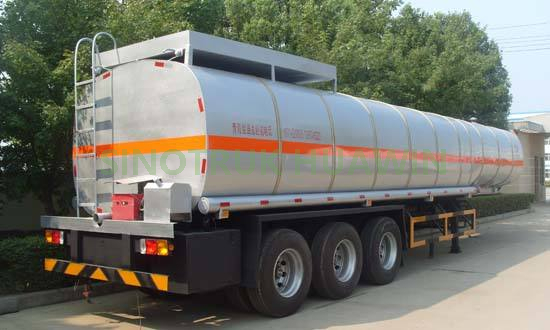

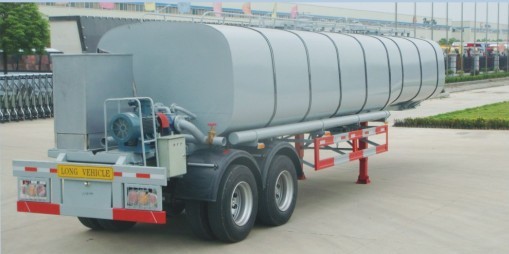

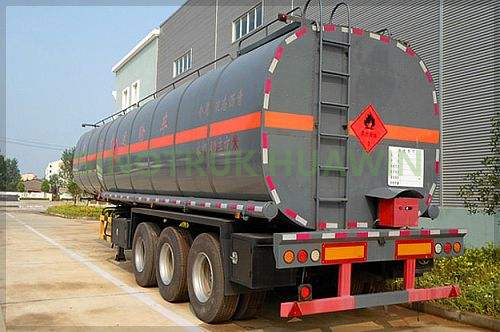

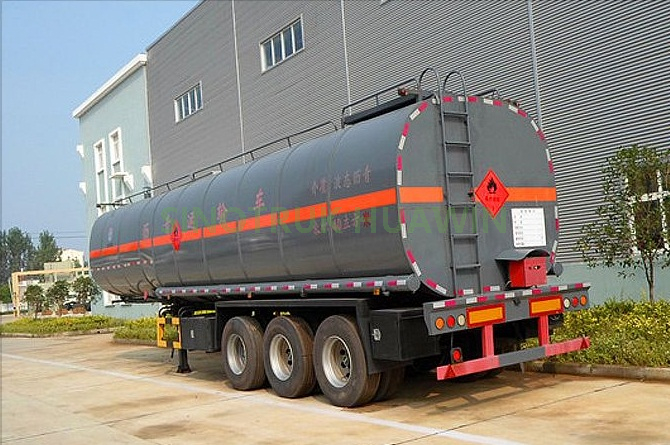

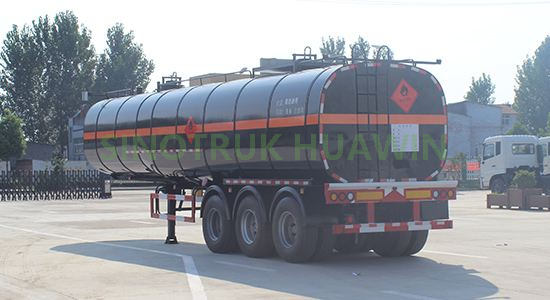

|Sinotruk 24CBM Asphalt Tanker Semi Trailer|
|Total Volume（m3）||24 CBM|
|Tanker Body Material||5mm steel/Q235|
|End plate||6mm steel sheet/Q235|
|Insulating materials & thickness||Fiber glass, 50mm|
|Outside sheet||1.2mm steel sheet|
|Heating system||Kerosene heating|
|Main Beams||Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes|
|Axles||3 axles, BPW/ FUWA/HJ/L1 Brand 12 ton|
|Landing Gear||JOST brand Two-speed, manual operating, heavy duty landing gear|
|King Pin||JOST brand 2” bolt-in king pin|
|Pneumatic Braking System||WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.|
|Wheel rim||9.0-22.5 wheel rim, 13 pieces|
|Tire||12R22.5 tubeless tire with one spare tire, 13 pieces|
|Painting||Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint|
|Accessories||One standard tool box|
1. Tractor Truck, Cargo Truck, Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, fuel tank semi trailer, etc. )
SINOTRUK is one of the biggest heavy duty truck manufacturer in China, also the absolute No. 1 for exporting.
We manufacture HOWO tractor truck, dump truck, concrete mixer, tanker truck, flat bed semi trailer and other special trucks, etc....
About the shipping, we SINOTRUK have rich experience in RORO, BULK CARGO, 40HQ, 40FR etc. Every year thousands of our trucks and trailers are sold to Myanmar, Tanzania, Zambia, Ethiopia, Nigeria, Australia, Russia and etc, they have gained great popularity and excellent feedback from our customers. We also export thousands of spare parts to different countries.
Welcome to visit our factory.
