ZZ5371VDMB28101
SINOTRUK HOWO

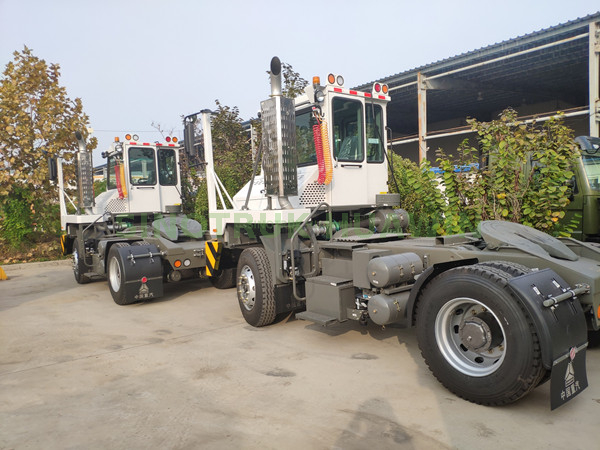

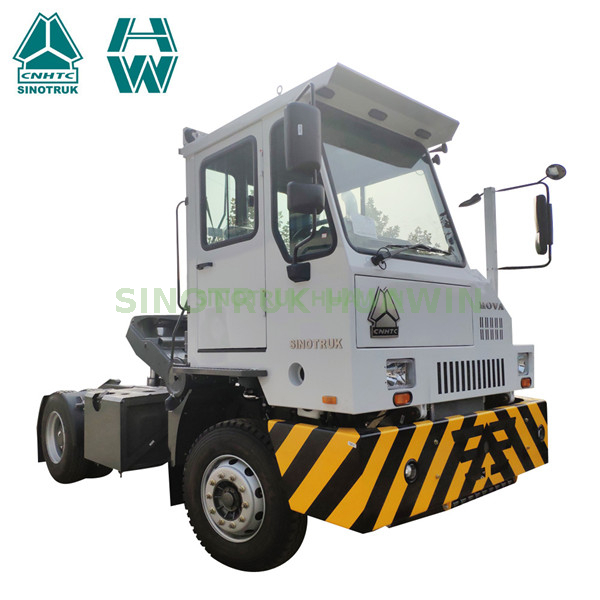

HOVA 4X2 Terminal Tractor Truck
Cabin | Driving type 4x2 LHD/RHD |
|
ZZ5371VDMB32101R D10R one side cabin, with Air Condition, photo for ref. | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 5160×2495×3100 |
Wheel base (mm) | 3200 | |
Weight in KGS | Tare Weight | 6900 |
Hauling Capacity | 50000 | |
Max. driving speed（km/h） | 40 | |
Engine | Brand | SINOTRUK |
Model | WD615.62 | |
Type | 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power（HP) | 266 HP | |
Emission standard | Euro II | |
Gearbox | ALLISON automatic gearbox, 4 Forwards gear & 1 reverse gear | |
Clutch | Reinforced diaphragm clutch | |
Steering Gear | hydraulic steering with power assistance | |
Fuel tank (L) | 230 liters | |
Tire | 11R22.5 tubeless tyre 7 pcs including one spare tire | |
Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels | |
Fifth wheel | Lifting fifth wheel optional | |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
