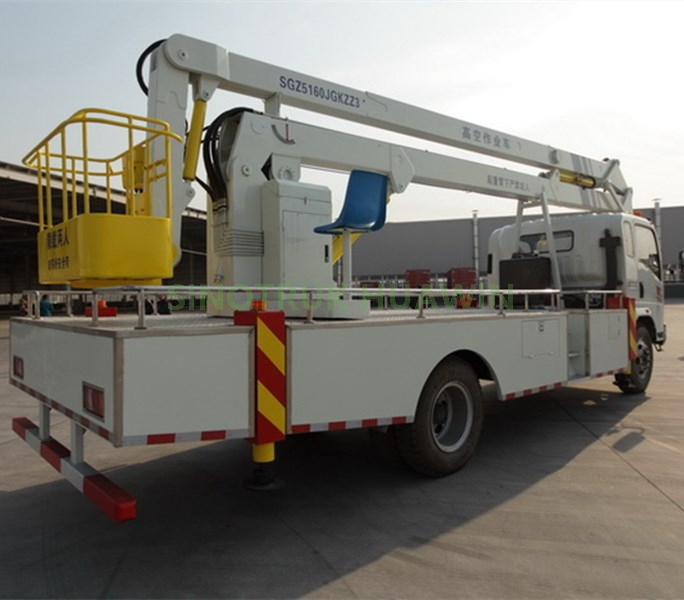

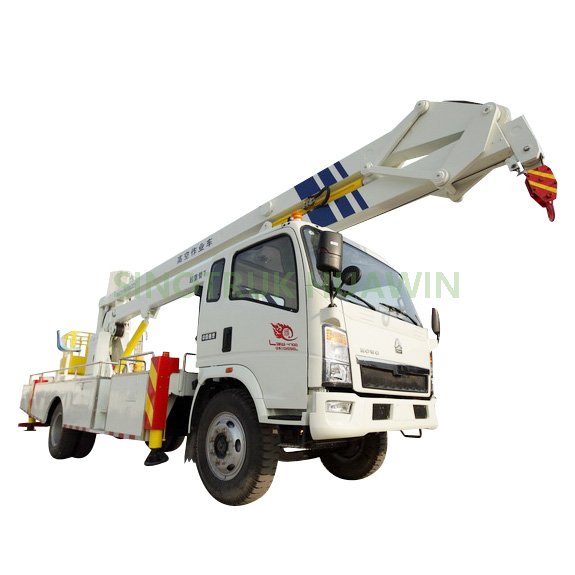

SINOTRUK HOWO 14.5m Height 4x2 Aerial Platform Working Truck

Sinotruck howo 14.5m height 4x2 aerial working truck are with 1.5 tons crane and 4 H-shape legs, and to lift the operating persons and materials to a certain height through the hydraulic drive system driving the boom and boom tip operation bucket to carry out the overhead operation.
Availability:
Quantity:
  • ZZ1107G451CD
  • SINOTRUK HOWO

                   SINOTRUK HOWO 14.5m Height 4x2 Aerial Platform Working Truck

 Cabin HOWO 76 Standard cab, with one bed and A/C, 70°hydraulically tillable to the front



Vehicle Main Dimensions

Overall dimensions (L x W x H)mm8800x2500x3900
Wheel base  (mm)4300
Wheel track  (front/rear) (mm)2022/1830
Approach/Departure angle(°)31/31


Weight in KGS

Tare Weight9500
Front axles loading capacity1x7000
Rear axles loading capacity1x16000




Engine

BrandSinotruk


Type

4-stroke direct injection ,  6-cylinder in-line  with water cooling, turbo-charging and inter-cooling
Horse Power(HP)266 HP
Emission standardEuro Ⅱ
GearboxHW19710, 10 forwards & 2 reverse
ClutchReinforced diaphragm clutch, diameter 420mm
Steering GearZF 8098,power steering, hydraulic steering with power assistance
Fuel tank (L)300
Tire 12.00 R20 radial tire, 7 pcs including one spare tire

Platform organ



Specs

Max working platform height≧14.5m,

Working platform rating loading=250kg,

Working platform rating allowable passengers=2,

Working platform dimension:

1100*570*1000mm,

360°turning(left or right),

4 H-shape legs., 1.5 ton crane


Our Advantage

1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers


Warranty

1. One year quality guarantee for three key parts axles, engine, transmission or within 100000km, which comes the first.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);

5.Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.


Our certificates

Certificate


Main products
1. Tractor Truck, Cargo Truck, Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, fuel tank semi trailer, etc. )

Company Introduction
SINOTRUK is one of the biggest heavy duty truck manufacturer in China, also the absolute No. 1 for exporting.
We manufacture HOWO tractor truck, dump truck, concrete mixer, tanker truck, flat bed semi trailer and other special trucks, etc....


Factory view

factory view

workshop


About the shipping, we SINOTRUK have rich experience in RORO, BULK CARGO, 40HQ, 40FR etc. Every year thousands of our trucks and trailers are sold to Myanmar, Tanzania, Zambia, Ethiopia, Nigeria, Australia, Russia and etc, they have gained great popularity and excellent feedback from our customers. We also export thousands of spare parts to different countries.


发货运输

Welcome to visit our factory.
