ZZ1107G451CD
Sinotruk Howo

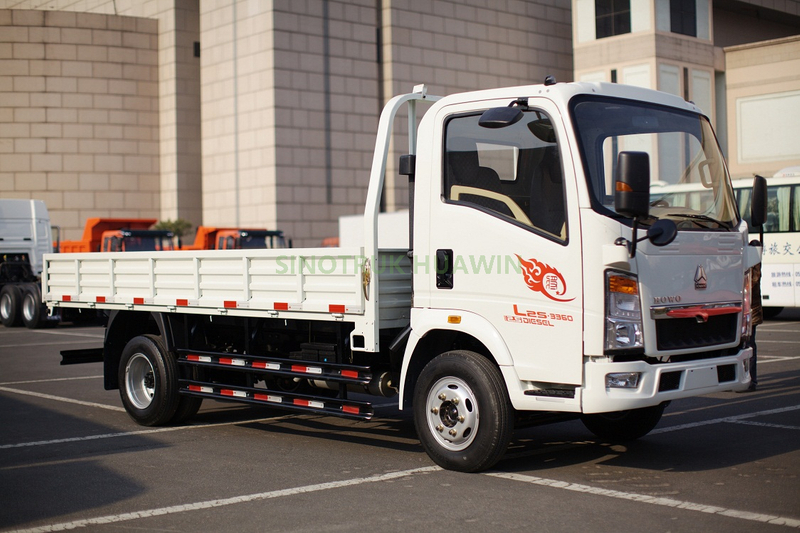

SINOTRUK HOWO 4×2 Cargo Truck
Cabin | Driving type 4x2 LHD |
|
2080 cab, with two seats and a small bed and A/C, with air deflector, 70°hydraulically tillable to the front as attached photo for ref. | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 7600x2500x3600 |
Wheel base (mm) | 4500 | |
Wheel track (front/rear) (mm) | 1845/1796 | |
Approach/Departure angle(°) | 27/20 | |
Weight in KGS | Tare Weight | 4775 |
payload | 10000 | |
Front axles loading capacity | 1x4000 | |
Rear axles loading capacity | 1x10000 | |
Max. driving speed（km/h） | 95 | |
Engine | Brand | YUCHAI |
Model | 4110Y | |
Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power（HP) | 160 | |
Emission standard | Euro Ⅱ | |
Gearbox | DC6J65TC, 6 Forwards gear & 1 reverse gear | |
Steering Gear | Power steering, hydraulic steering with power assistance | |
Fuel tank (L) | 220 | |
Tire | 8.25R20 tire, 7 pcs including one spare tire | |
Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake | |
Box size | 5750x2300x600mm | |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
SINOTRUK HOWO 4×2 Cargo Truck
Cabin | Driving type 4x2 LHD |
|
2080 cab, with two seats and a small bed and A/C, with air deflector, 70°hydraulically tillable to the front as attached photo for ref. | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 7600x2500x3600 |
Wheel base (mm) | 4500 | |
Wheel track (front/rear) (mm) | 1845/1796 | |
Approach/Departure angle(°) | 27/20 | |
Weight in KGS | Tare Weight | 4775 |
payload | 10000 | |
Front axles loading capacity | 1x4000 | |
Rear axles loading capacity | 1x10000 | |
Max. driving speed（km/h） | 95 | |
Engine | Brand | YUCHAI |
Model | 4110Y | |
Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power（HP) | 160 | |
Emission standard | Euro Ⅱ | |
Gearbox | DC6J65TC, 6 Forwards gear & 1 reverse gear | |
Steering Gear | Power steering, hydraulic steering with power assistance | |
Fuel tank (L) | 220 | |
Tire | 8.25R20 tire, 7 pcs including one spare tire | |
Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake | |
Box size | 5750x2300x600mm | |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
