Sinotruk Howo

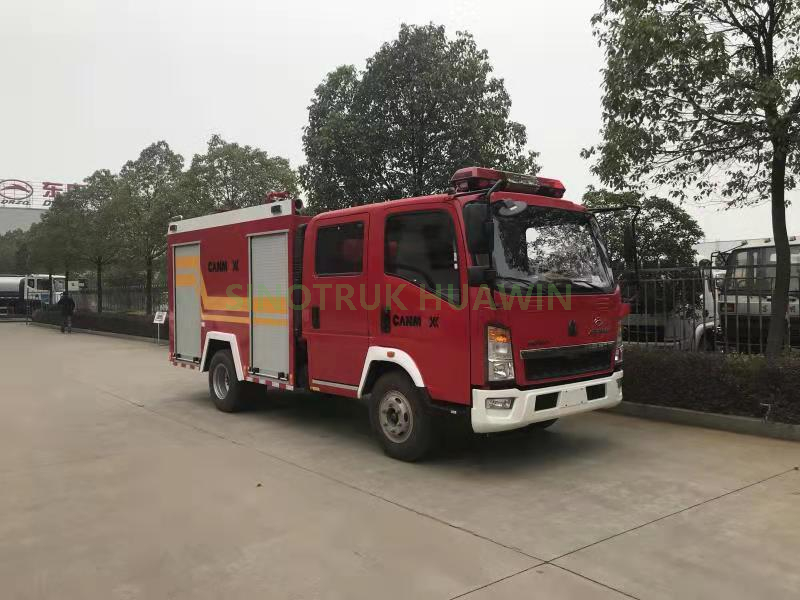

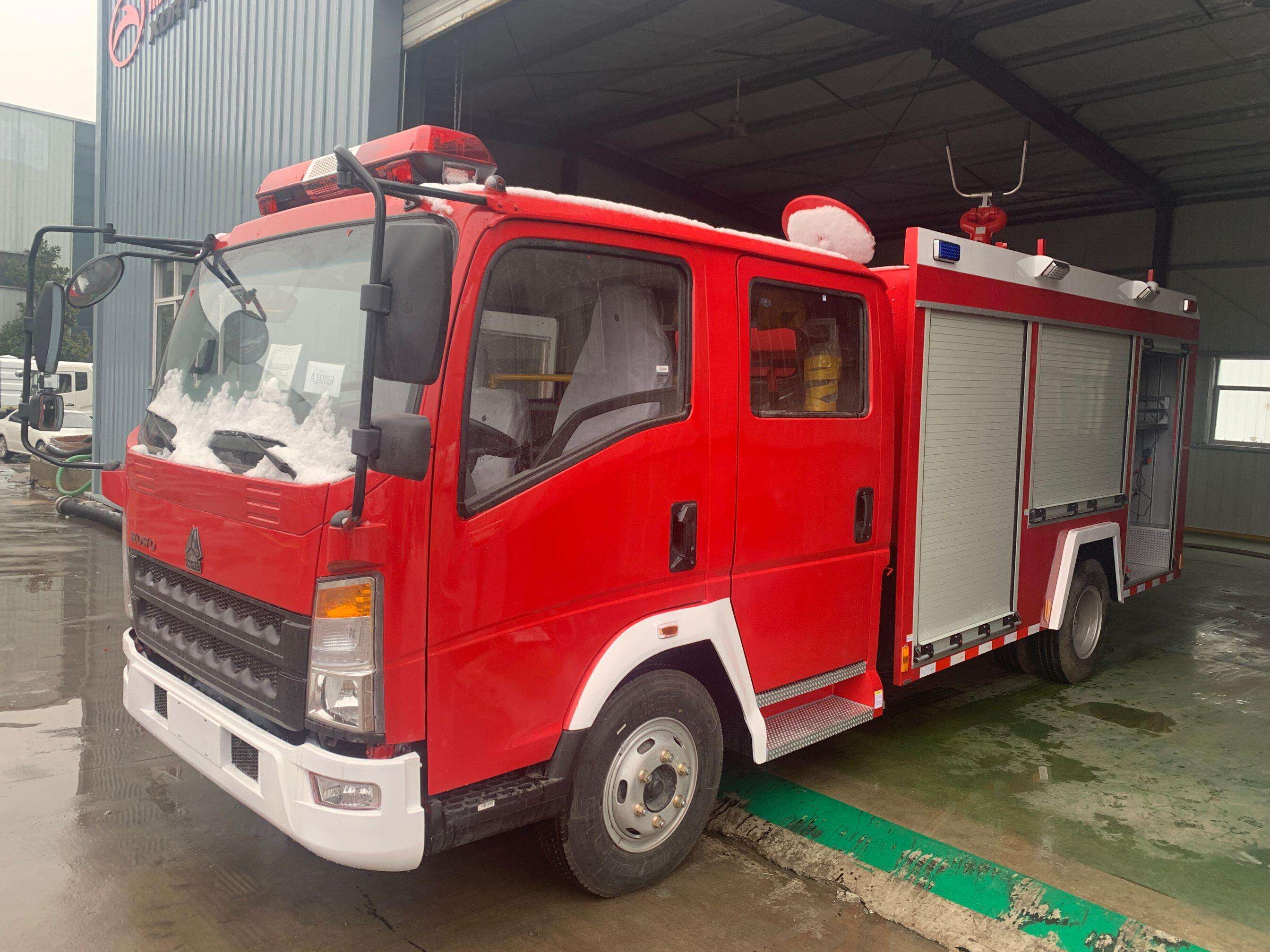

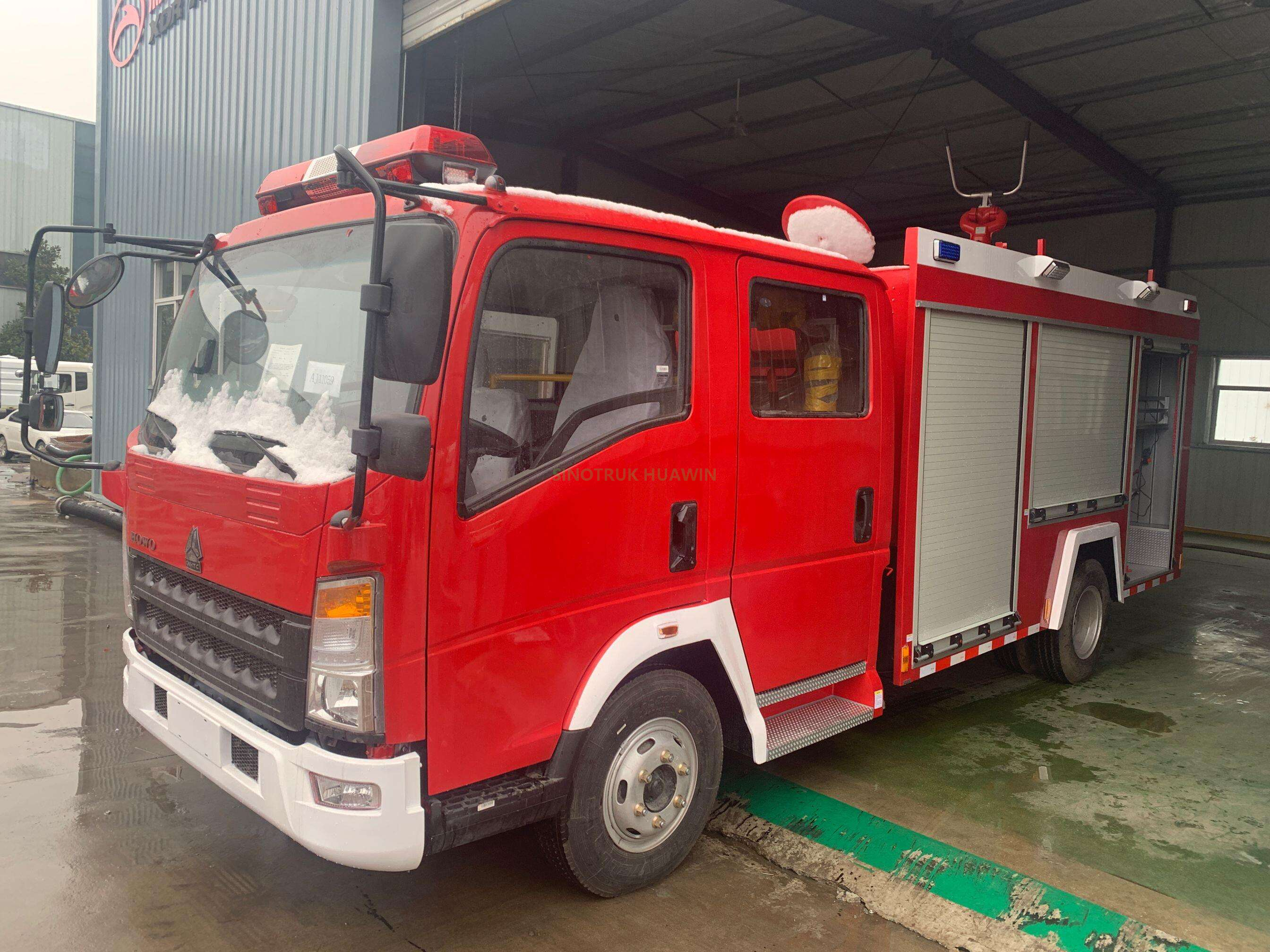

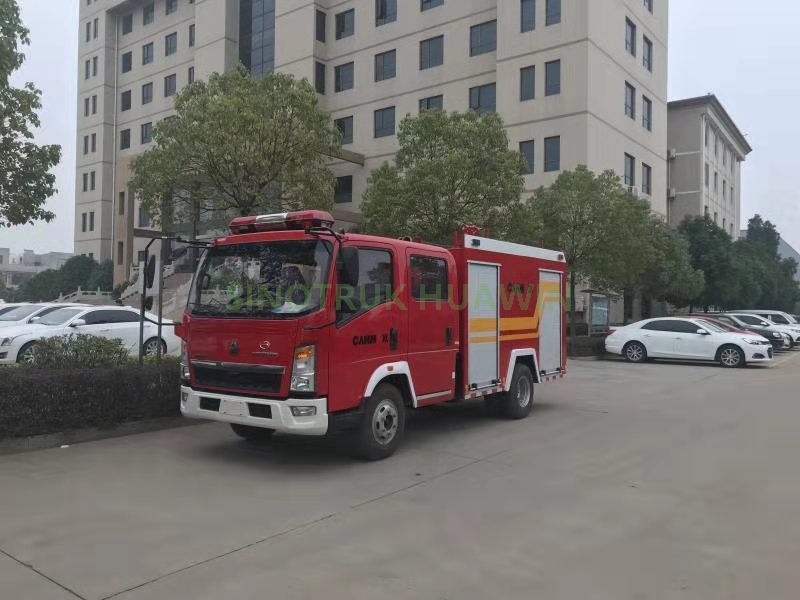

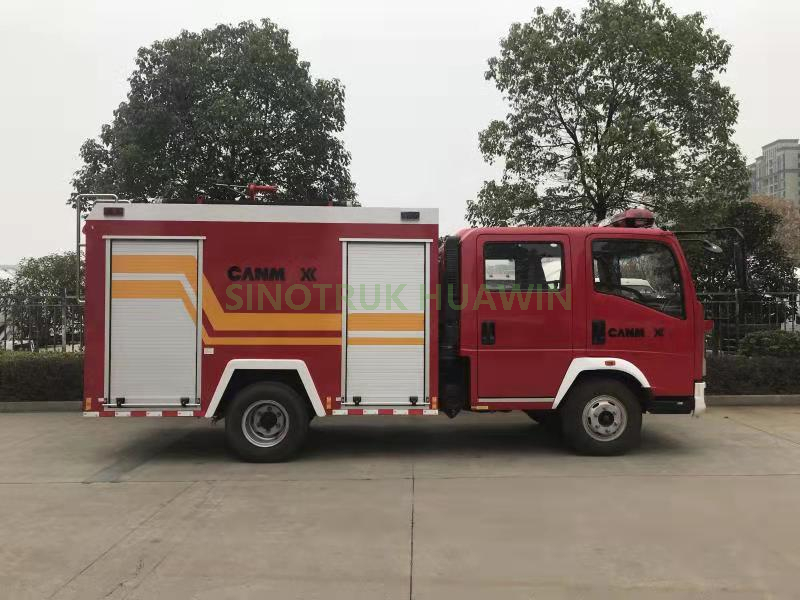

SINOTRUK HOWO 4×2 Fire Fighting Truck
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 8500x2500x3350 | |
Wheel base (mm) | 4500 | ||
Wheel track (front/rear) (mm) | 1798/1764 | ||
Weight in KGS | Tare Weight（kg） | 8345 | |
Payload（kg） | 6000 | ||
Front axles loading capacity | 1x3500 | ||
Rear axles loading capacity | 1x8000 | ||
Max. driving speed（km/h） | 95 | ||
Engine | Brand | Cummins | |
Model | ISF3.8s3168 | ||
Type | 4-cylinder in-line, turbo-charged and inter-cooled | ||
Horse Power（HP) | 168HP | ||
Emission standard | Euro III | ||
Gearbox | DC6J65TC, 6 Forwards gear & 1 reverse gear | ||
Steering Gear | Hydraulic steering with power assistance | ||
Fuel tank (L) | 120 | ||
Tire | 8.25R20 steel tyre, in total 7 pcs including one spare tire | ||
Tank Capacity (L) | Water: 6,000 | ||
Fire Pump | Flow, CB10/30 | 30L/s at Pressure 1.0 MPa | |
Fire Monitor | Model | PL24 | |
Pressure | 0.5-1.2MPa | ||
Flow | 24L/S | ||
Range | Water≥45m | ||
Rotation angle | 360° Horizontal | ||
-30°～70° Pitch Angle | |||
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
SINOTRUK HOWO 4×2 Fire Fighting Truck
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 8500x2500x3350 | |
Wheel base (mm) | 4500 | ||
Wheel track (front/rear) (mm) | 1798/1764 | ||
Weight in KGS | Tare Weight（kg） | 8345 | |
Payload（kg） | 6000 | ||
Front axles loading capacity | 1x3500 | ||
Rear axles loading capacity | 1x8000 | ||
Max. driving speed（km/h） | 95 | ||
Engine | Brand | Cummins | |
Model | ISF3.8s3168 | ||
Type | 4-cylinder in-line, turbo-charged and inter-cooled | ||
Horse Power（HP) | 168HP | ||
Emission standard | Euro III | ||
Gearbox | DC6J65TC, 6 Forwards gear & 1 reverse gear | ||
Steering Gear | Hydraulic steering with power assistance | ||
Fuel tank (L) | 120 | ||
Tire | 8.25R20 steel tyre, in total 7 pcs including one spare tire | ||
Tank Capacity (L) | Water: 6,000 | ||
Fire Pump | Flow, CB10/30 | 30L/s at Pressure 1.0 MPa | |
Fire Monitor | Model | PL24 | |
Pressure | 0.5-1.2MPa | ||
Flow | 24L/S | ||
Range | Water≥45m | ||
Rotation angle | 360° Horizontal | ||
-30°～70° Pitch Angle | |||
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
