SINOTRUK HOWO 4×2 Swing arm skip loader Truck
Cabin | Driving type 4x2 LHD 1880mm width cabin with 2seats, and one bed With A/C 70°tillable to the front. as attached photo for ref only |
|
Vehicle Main Dimensions | Overall size (L x W x H)mm | 6900x2500x3350 |
Wheel base (mm) | 3360 | |
Weight in KGS | Tare Weight | 4800 |
payload | 5000 | |
Front axles loading capacity | 1x3200 | |
Rear axles loading capacity | 1x7200 | |
Engine | Brand | YUNEI |
Model | YN4102QBZL | |
Type | Diesel, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power（HP) | 116HP | |
Emission standard | Euro II | |
Gearbox | WLY6T46 gear box, with 6 forward and 1 reverse | |
Steering Gear | Power steering | |
Clutch | Booster clutch | |
Oil tank | 120L | |
Tire | 7.00R16 radial tires ,7pcs including 1 spare tire. | |
Swing arm skip specification | Bin Size: 2cbm Working pressure: 18-20 MPa Hydraulic system adopted for arm-swing | |
Photos following for reference:
Bin shape for skip loader: (V shape, convenient for dumping )

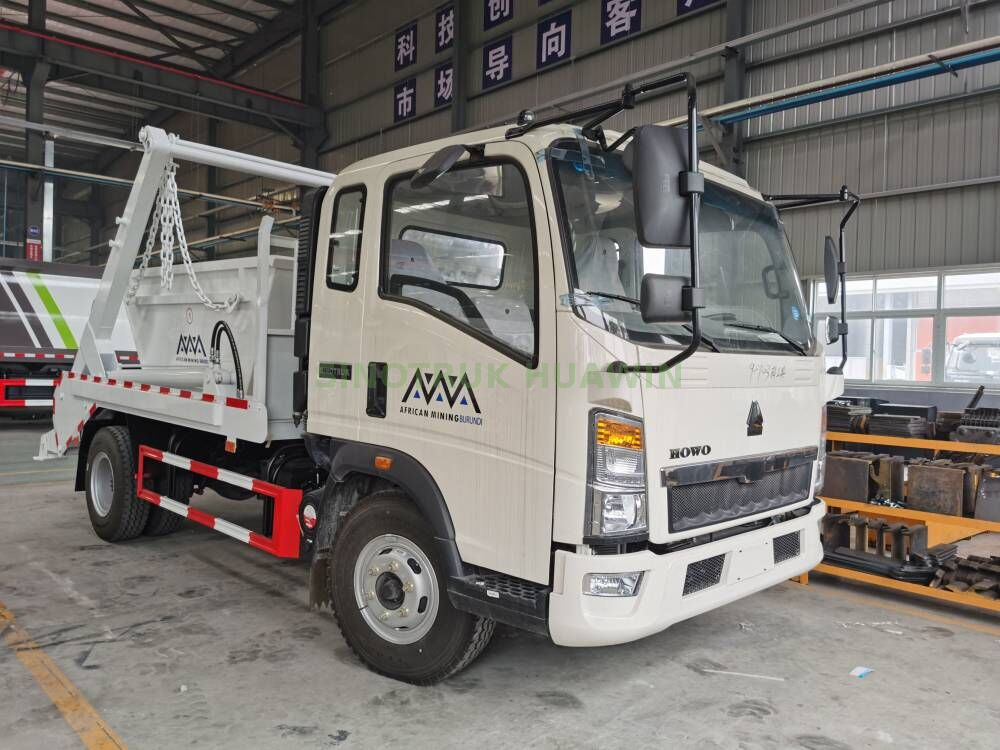

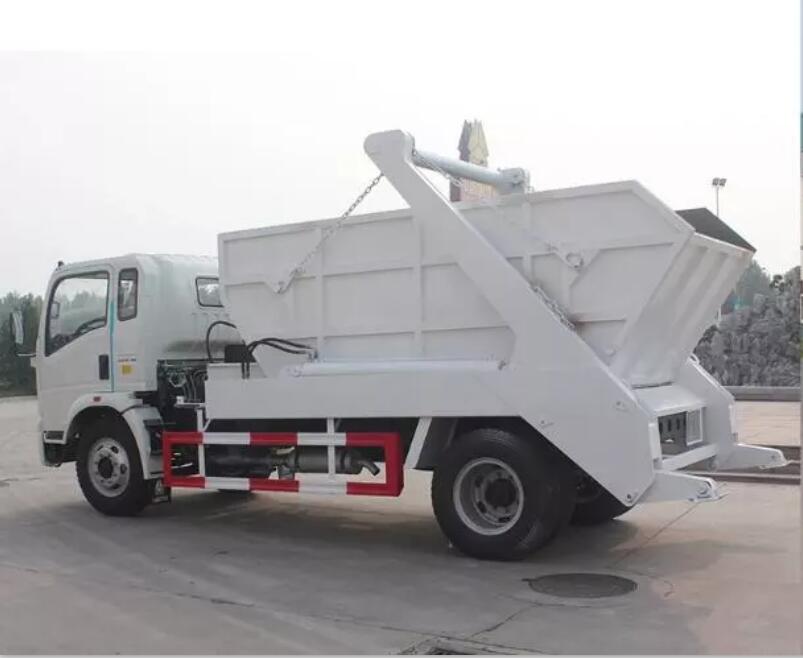

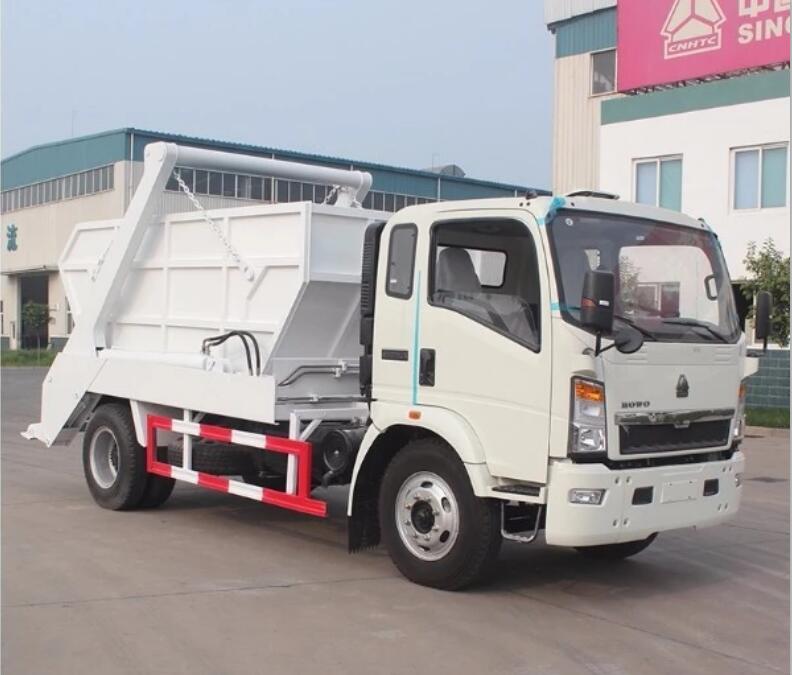

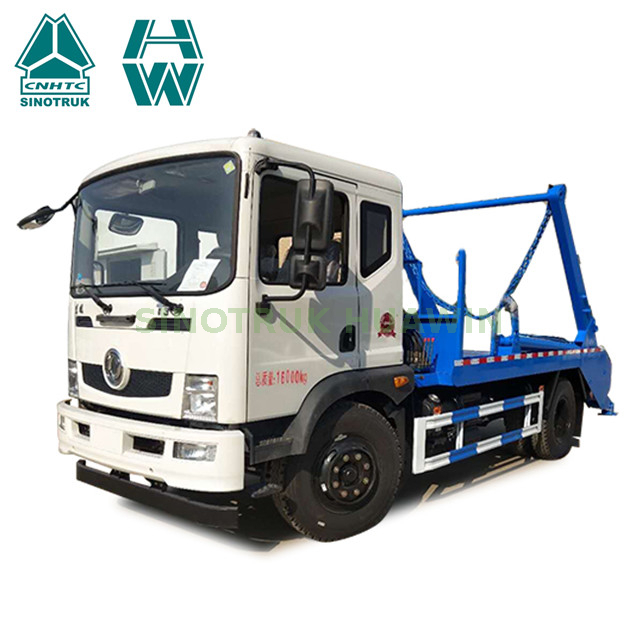

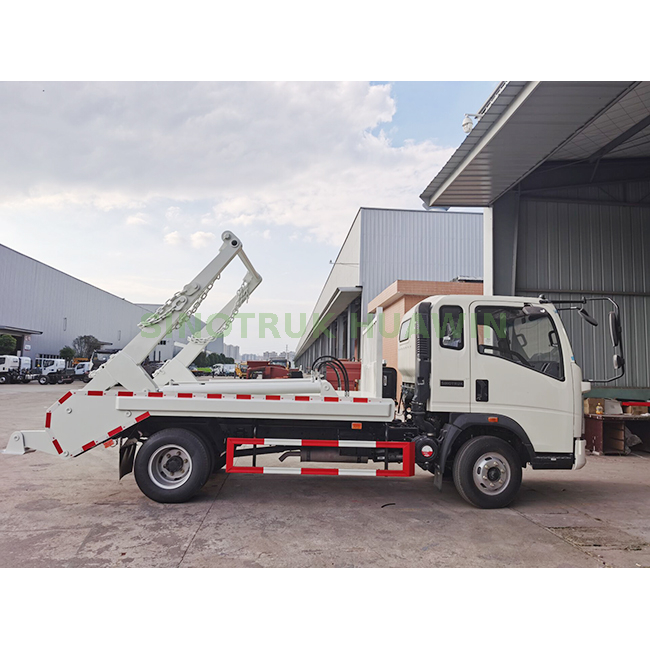

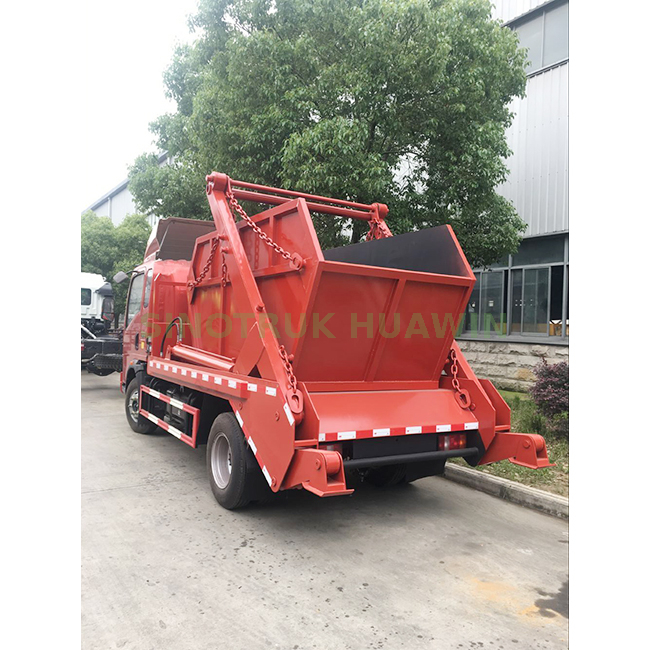

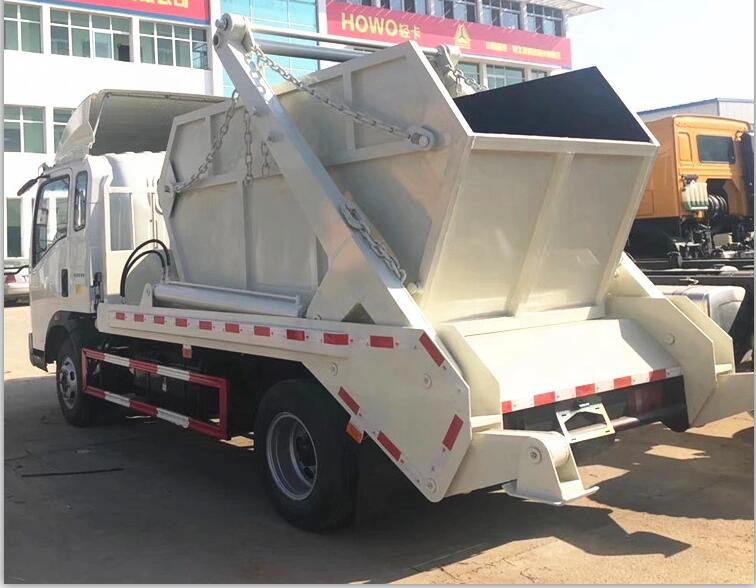

and following is truck photos:
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
