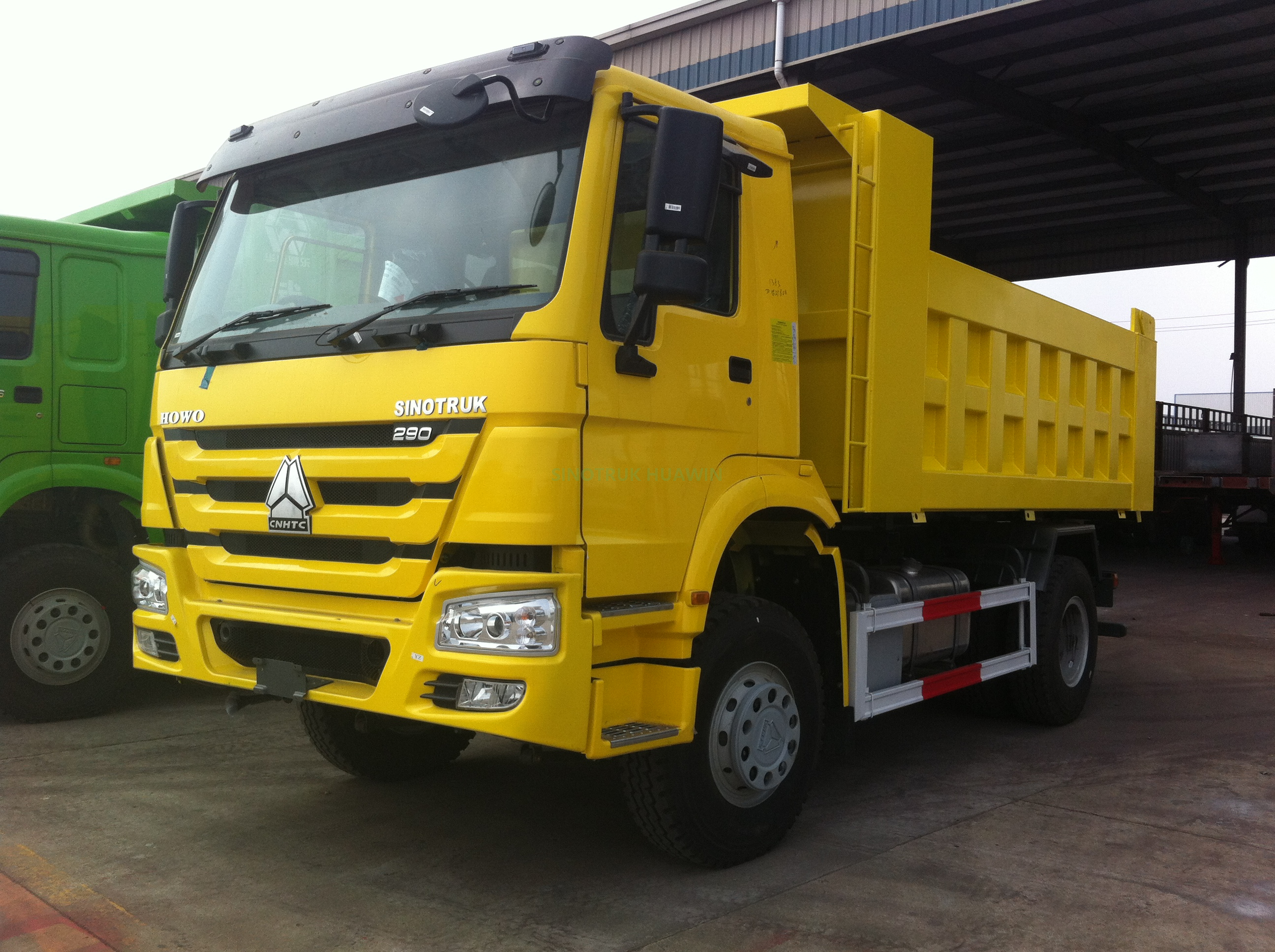

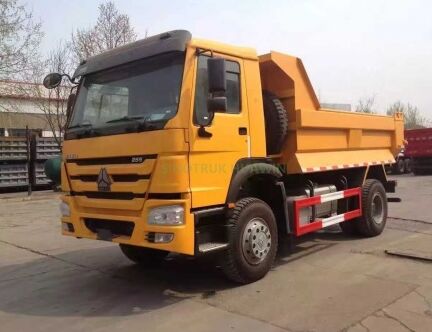

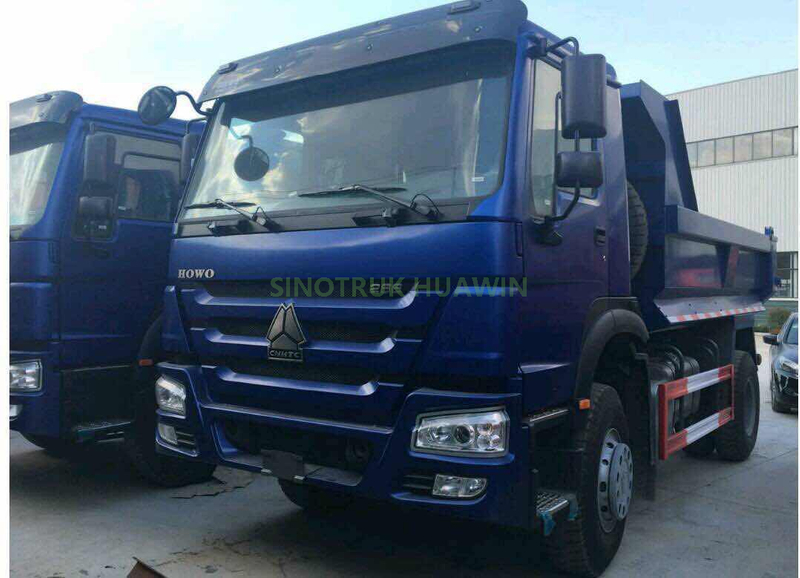

SINOTRUK HOWO 4X2 Middle Tipper Truck

HOWO 4X2 6 wheels 290hp dump truck middle tipping is mainly used for transporting the stuff in bulk which can be scattered (such as sand, soil, minerals, etc.), mainly in mining, construction sites and so on. The 6 wheels 4X2 dump truck with18 tons capacity can meet your needs. All kinds of cargo body structure can be designed and produced according to your request, make it have light curb weight , high rigidity , high loading capacity.

Quantity:
  • ZZ3257N3241
  • SINOTRUK HOWO

HOWO 4X2 6 wheels dump truck middle tipping


Cabin

Driving type 4x2      LHD

4X2-100-100

HW70 standard cab, with two seats and A/C, 70°hydraulically tillable to the front as attached photo for ref.

Vehicle Main Dimensions

Overall dimensions (L x W x H)mm

6600×2500×3250

Wheel base  (mm)

3800

Wheel track  (front/rear) (mm)

2020/1830

Approach/Departure angle(°)

19/27

Weight in KGS

Tare Weight

7950

payload

18000

Front axles loading capacity

1x9000

Rear axles loading capacity

1x16000

Engine

Brand

Sinotruk

Model

WD615.87

Type

4-stroke direct injection ,  6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

290

Emission standard

Euro Ⅱ

Gearbox

HW15710, 10 Forwards gear & 2 reverse gear

Clutch

Reinforced diaphragm clutch, diameter 430mm

Steering Gear

ZF 8098,power steering, hydraulic steering with power assistance

Fuel tank (L)

300

Tire

12R22.5 tubeless tyre 7 pcs including one spare tire

Brakes

Service brake: dual circuit compressed air brake

Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust brake

Bin size

4190*2300*1200 mm, side thickness 6mm, bottom thickness 8mm

Hydraulic system

middle positioned


Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
