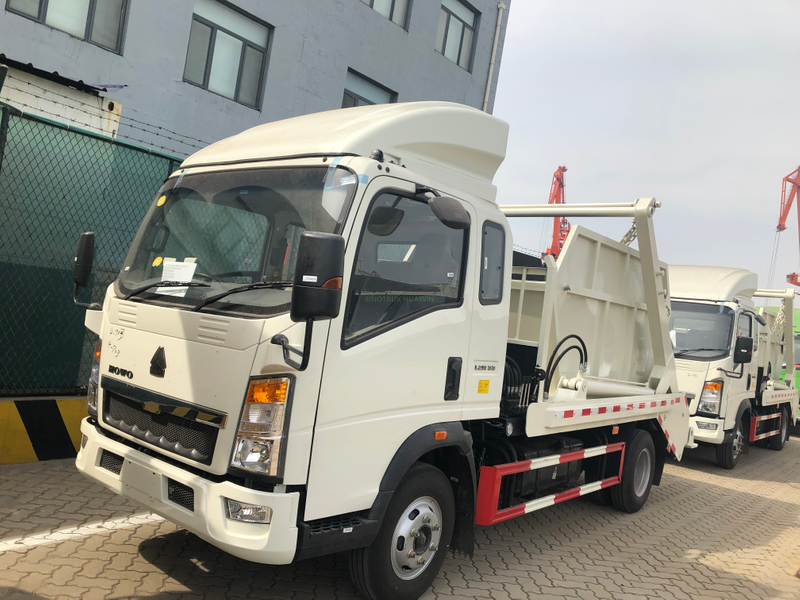

SINOTRUK HOWO 4X2 Swing-arm Garbage Truck

SINOTRUK HOWO 4X2 Swing-arm Garbage Truck. Box Size: 12 CBM matched. PTO motivated hydraulic system, Hydraulic cylinder: two cylinders with lifting arm and two cylinder with landing leg
Quantity:
  • ZZ1107G451CD
  • SINOTRUK

                              SINOTRUK HOWO 4X2 Swing-arm Garbage Truck

Cabin

L2000 Cab,with one sleeper, with two seats, with A/C,70° hydraulically tillable to the front



Vehicle Main Dimensions

(L x W x H)mm

7600x2500x3900

Wheel base  (mm)

4200

Wheel track  (front/rear) (mm)

1900/1860

Approach/Departure angle(°)

16/17


Weight in KGS

Tare Weight

 6635

Loading Capacity

 10000

Front axles loading capacity

1x5000

Rear axles loading capacity

1x13000

Max. driving speedkm/h


95




Engine

Brand

YUCHAI

Model

YC6J190

Type

4-stroke direct injection ,  6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

190 HP

Emission standard

Euro

Gearbox

DC6J65TC, 6 forwards & 1 reverse

Clutch

Push type diaphragm spring clutch, diameter 395 mm


Tire

9.00-20, All nylon tire , 7pieces



Garbage System

1, Box Size: 12 CBM matched



2,PTO motivated hydraulic system



3,Hydraulic cylinder: two cylinders with lifting arm and two cylinder with landing leg


Our Advantage

1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers


Warranty

1. One year quality guarantee for three key parts axles, engine, transmission or within 100000km, which comes the first.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);

5.Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.
