ZZ4187N3617
SINOTRUK HOWO

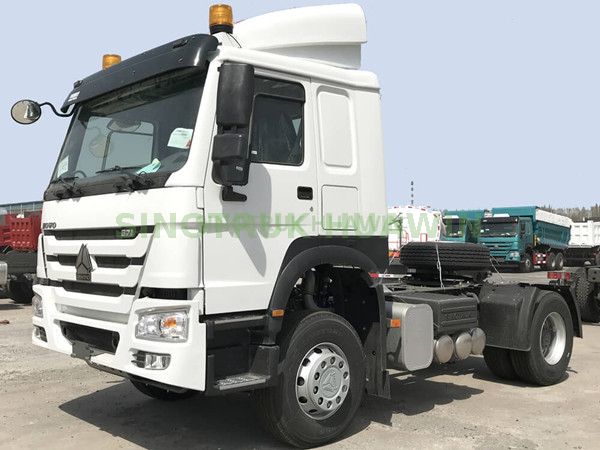

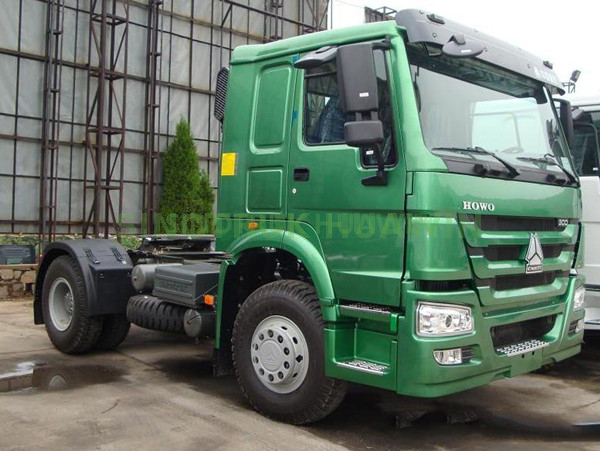

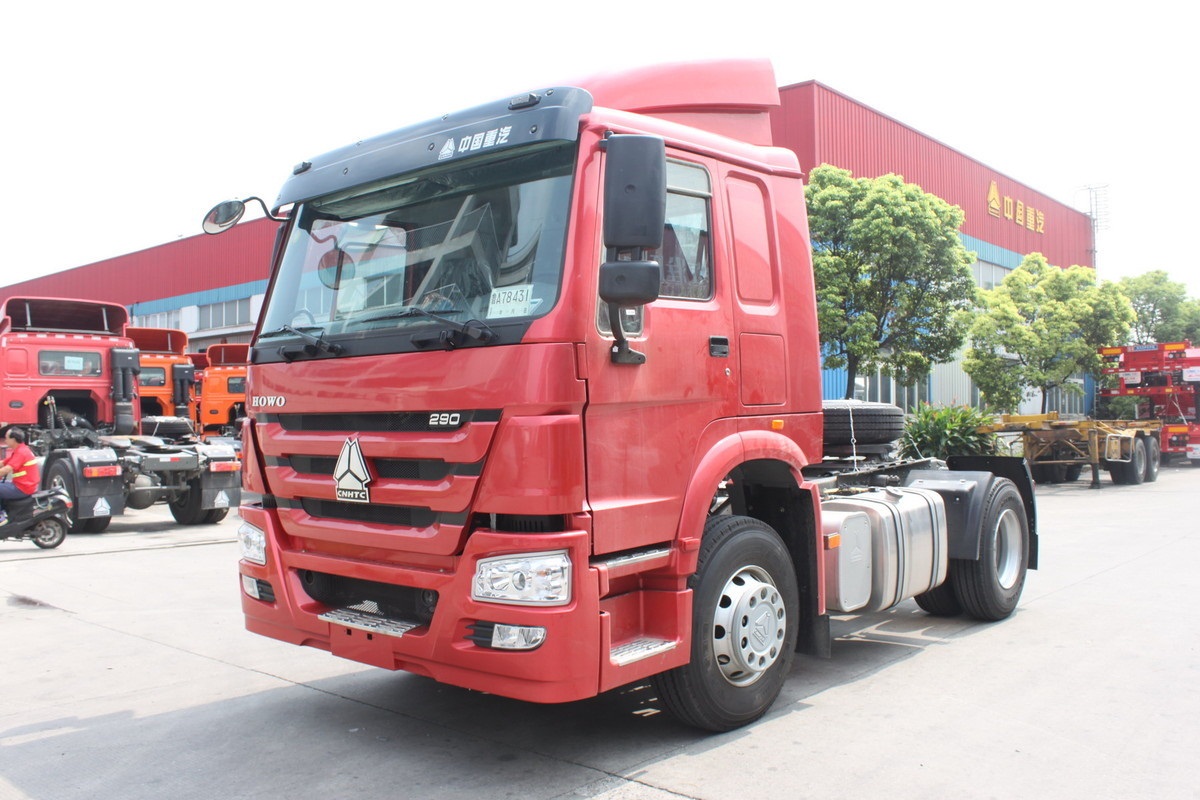

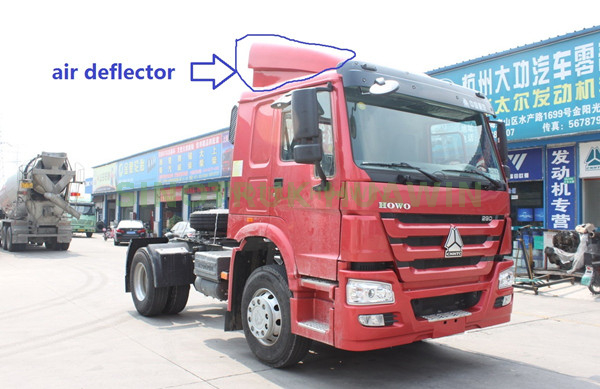

SINOTRUK 4X2 HOWO tractor truck
Cabin | Driving type 4x2 LHD |
|
HW 76 standard cab, with one bed and Air Condition, 70°hydraulically tillable to the front as attached photo for ref. | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 6100×2500×3150 |
Wheel base (mm) | 3500 | |
Wheel track (front/rear) (mm) | 2022/1830 | |
Approach/Departure angle(°) | 16/42 | |
Weight in KGS | Tare Weight | 7180 |
Hauling Capacity | 39800 | |
Front axles loading capacity | 1x7000 | |
Rear axles loading capacity | 1x16000 | |
Max. driving speed（km/h） | 102 | |
Engine | Brand | Sinotruk |
Model | WD615.47 | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power（HP) | 371@2200 rpm | |
Emission standard | Euro Ⅱ | |
Gearbox | HW19710, 10 Forwards gear & 2 reverse gear | |
Clutch | Reinforced diaphragm clutch, diameter 430mm | |
Steering Gear | ZF 8098,power steering, hydraulic steering with power assistance | |
Fuel tank (L) | 400 | |
Tire | 12R22.5 tubeless tyre 7 pcs including one spare tire | |
Fifth wheel | 50mm/90mm | |
Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake | |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
