| Quantity: | |
|---|---|
ZZ1067G361CD
SINOTRUK HOWO

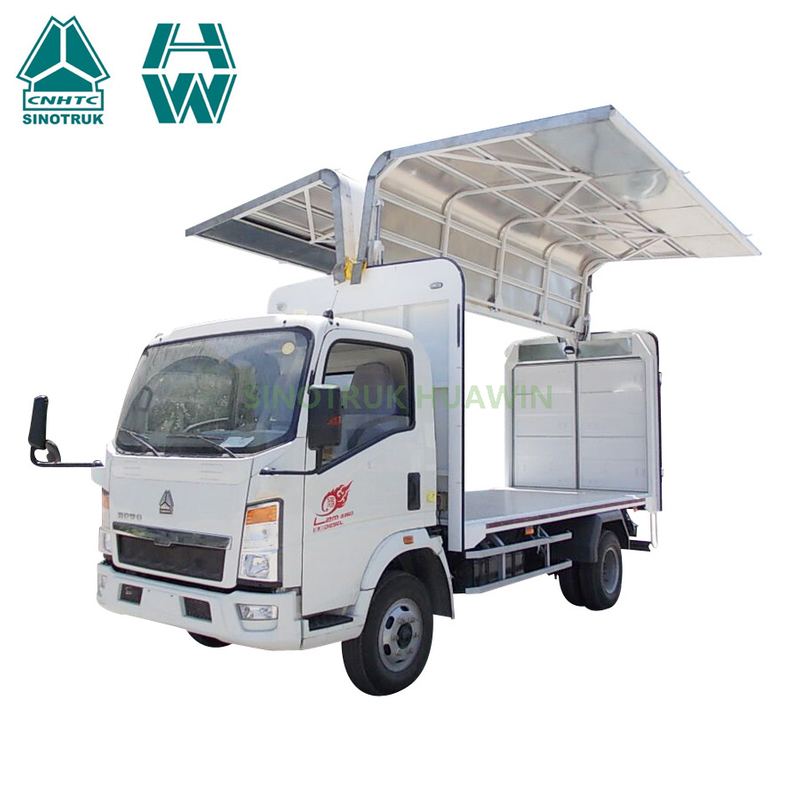

HOWO 4X2 Wing Van Truck-12tons
Cabin | Driving type 4x2 LHD |
|
2080 cabin with two seats and one bed, with air condition, wind deflector. 70°tillable to the front Photo for reference | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 9050×2400×3400 |
Wheel base (mm) | 5200 | |
Wheel track (front/rear) (mm) | 1605/1520 | |
Approach/Departure angle(°) | 20/18 | |
Weight in KGS | Tare Weight | 4500 |
Payload | 12000 | |
Front axles loading capacity | 1x3600 | |
Rear axles loading capacity | 1x12500 | |
Max. driving speed（km/h） | 90 | |
Engine | Brand | YUCHAI |
Model | YC4E160-33 | |
Type | 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power（HP) | 160 | |
Emission standard | Euro Ⅱ | |
Gearbox | DC6J65TC, 6 Forwards & 1 reverse | |
Fuel | 220L | |
Tire | 9.00R20 radial tire 7 PCS including one spare tire | |
Box size | 6800*2300*2300 mm | |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
HOWO 4X2 Wing Van Truck-12tons
Cabin | Driving type 4x2 LHD |
|
2080 cabin with two seats and one bed, with air condition, wind deflector. 70°tillable to the front Photo for reference | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 9050×2400×3400 |
Wheel base (mm) | 5200 | |
Wheel track (front/rear) (mm) | 1605/1520 | |
Approach/Departure angle(°) | 20/18 | |
Weight in KGS | Tare Weight | 4500 |
Payload | 12000 | |
Front axles loading capacity | 1x3600 | |
Rear axles loading capacity | 1x12500 | |
Max. driving speed（km/h） | 90 | |
Engine | Brand | YUCHAI |
Model | YC4E160-33 | |
Type | 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power（HP) | 160 | |
Emission standard | Euro Ⅱ | |
Gearbox | DC6J65TC, 6 Forwards & 1 reverse | |
Fuel | 220L | |
Tire | 9.00R20 radial tire 7 PCS including one spare tire | |
Box size | 6800*2300*2300 mm | |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
