SINOTRUK HOWO 4x2 Dump Truck delivered to Burundi

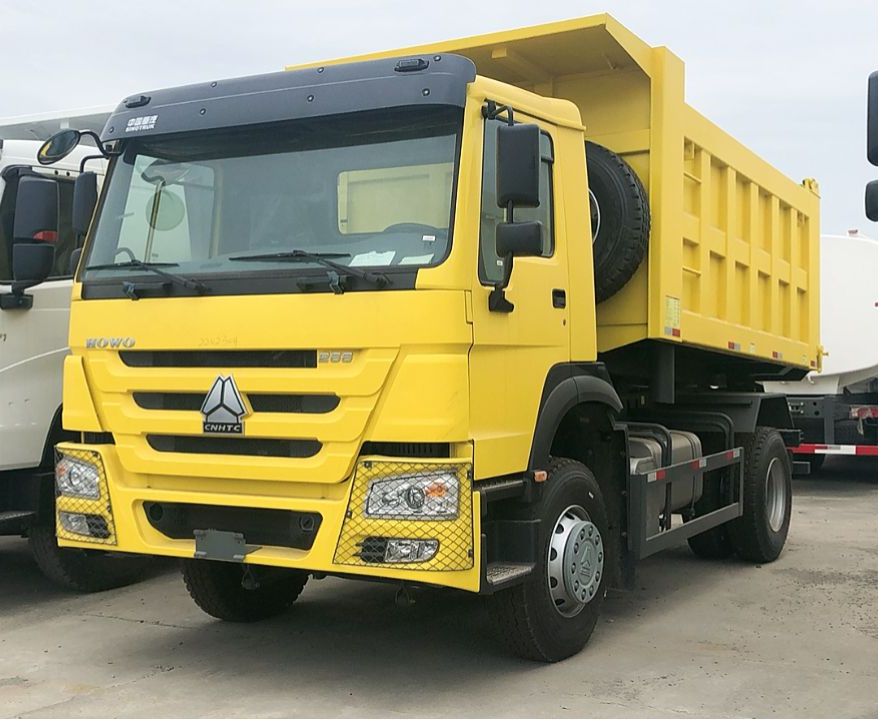

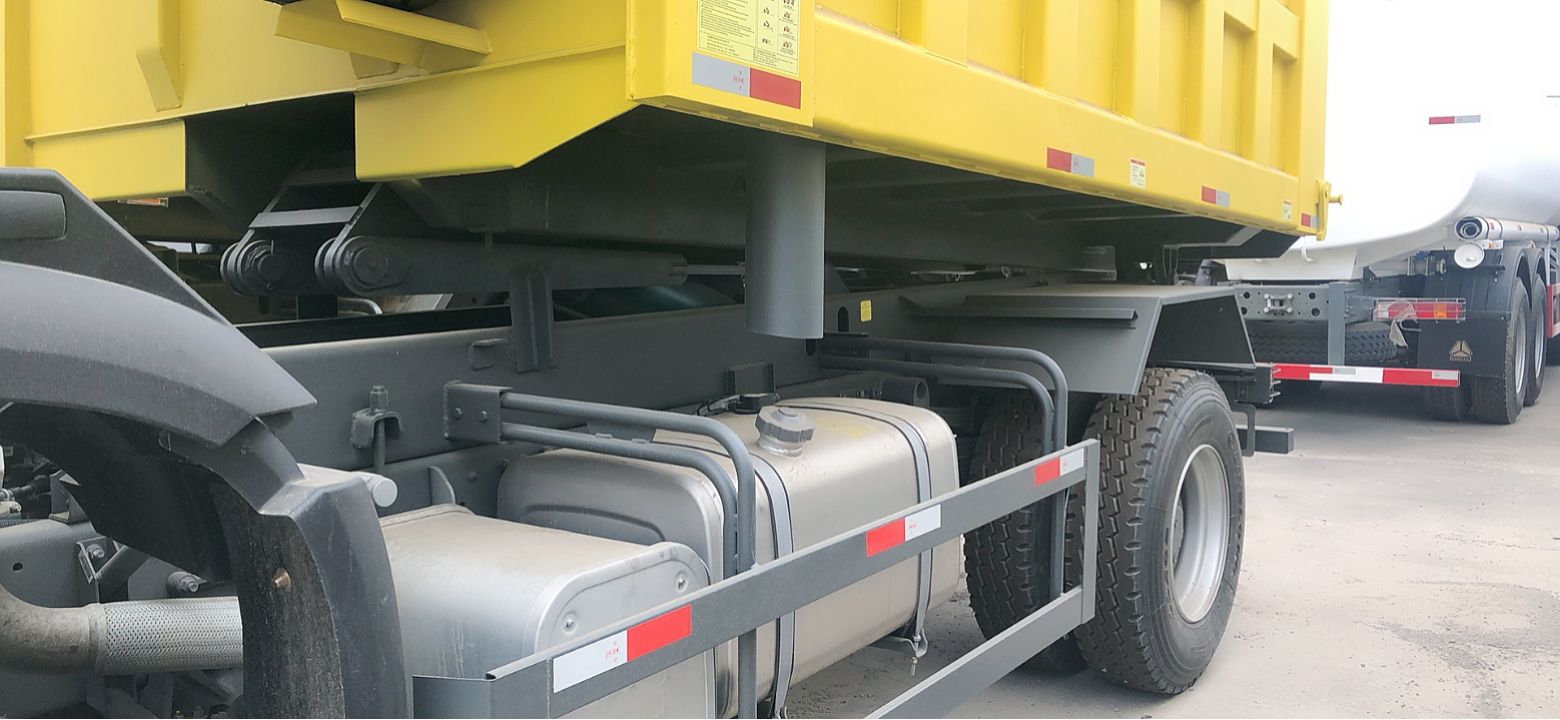

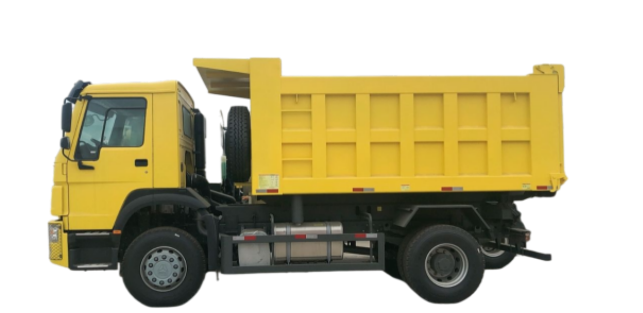

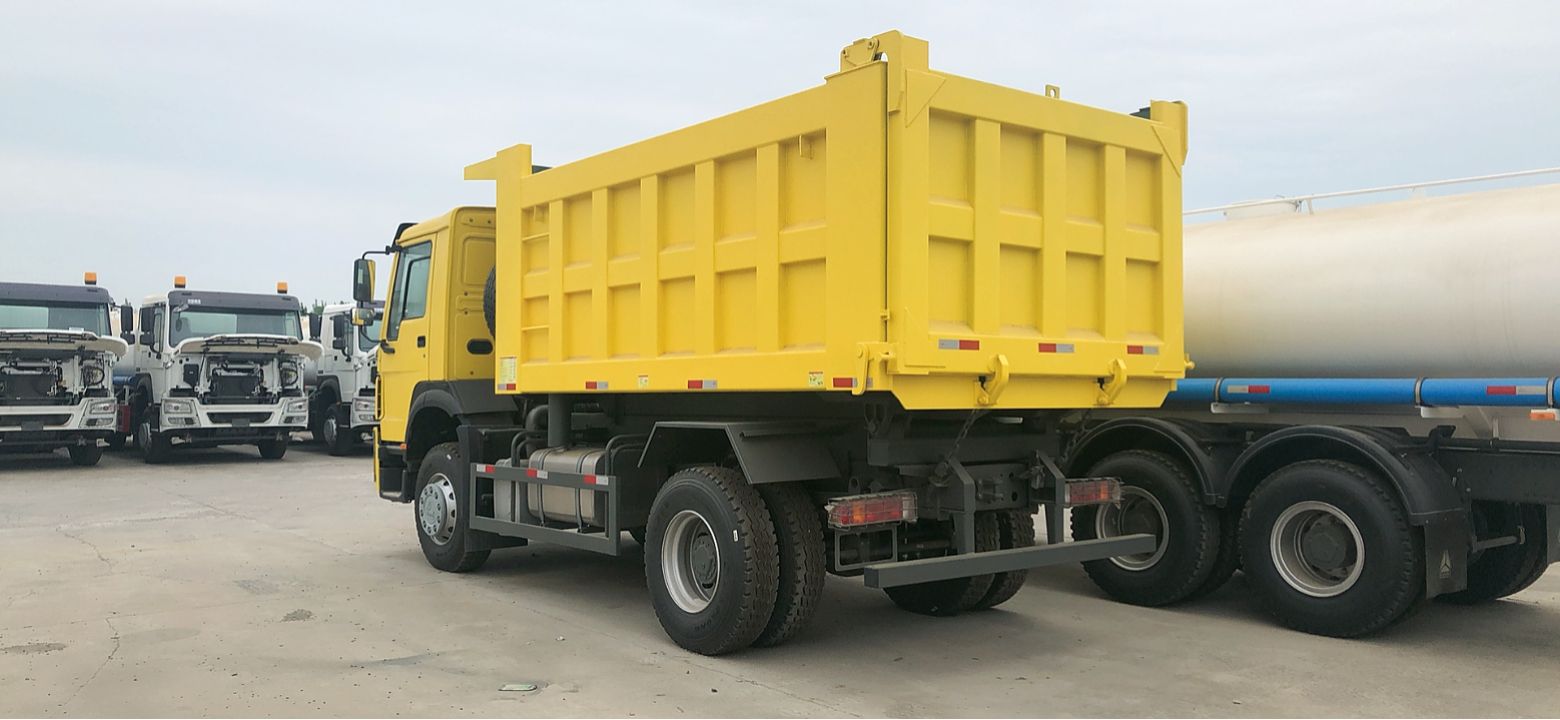

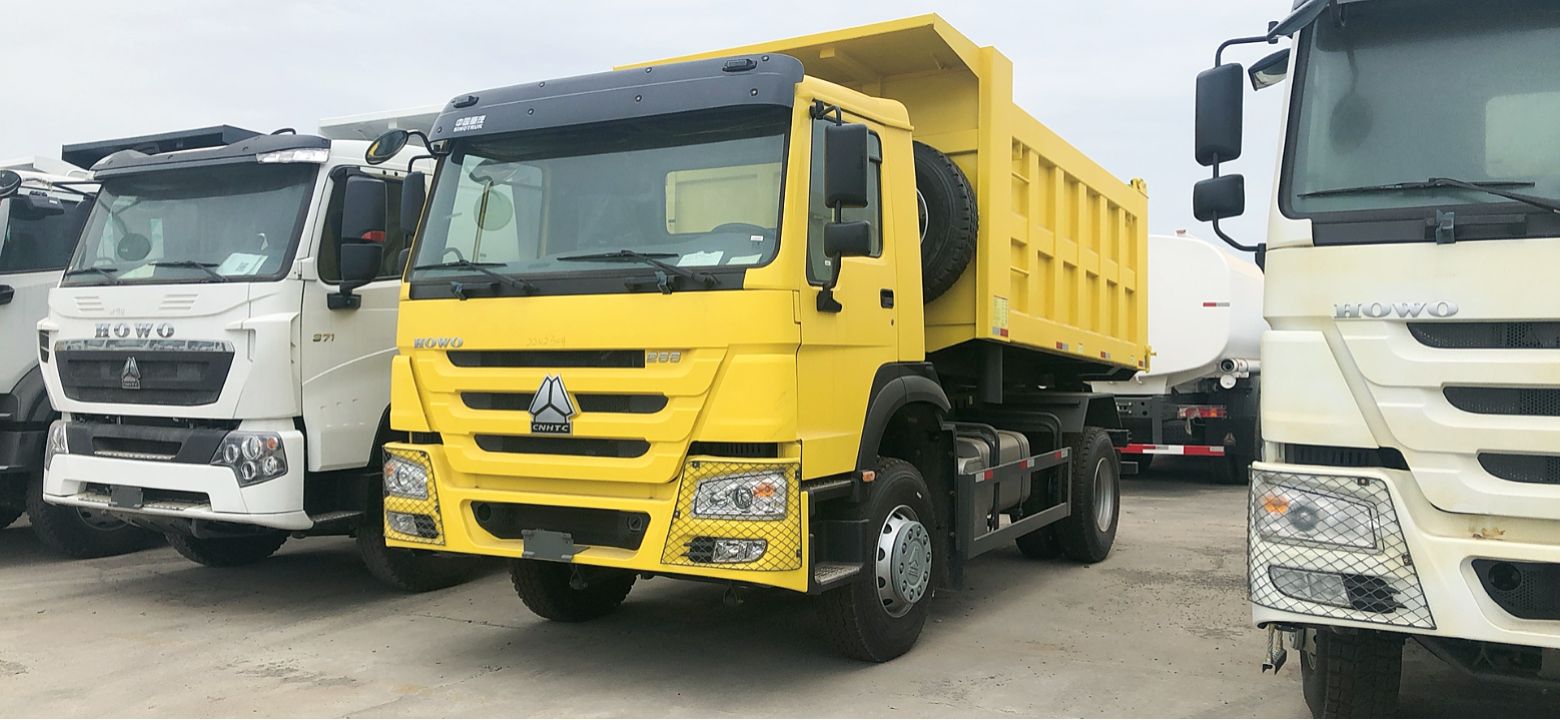

1. The basic pictures and details:
2. The parameters of this truck:
HOWO 4X2 dump truck
Cabin | Driving type 4x2 LHD |
|
HW70 standard cab, with two seats and A/C, 70°hydraulically tillable to the front as attached photo for ref. | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 6600×2500×3250 |
Wheel base (mm) | 3800 | |
Wheel track (front/rear) (mm) | 2020/1830 | |
Approach/Departure angle(°) | 19/27 | |
Weight in KGS | Tare Weight | 7950 |
payload | 18000 | |
Front axles loading capacity | 1x9000 | |
Rear axles loading capacity | 1x16000 | |
Engine | Brand | Sinotruk |
Model | WD615.62 | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power（HP) | 266 | |
Emission standard | Euro Ⅱ | |
Gearbox | HW15750, 10 Forwards gear & 2 reverse gear | |
Clutch | Reinforced diaphragm clutch, diameter 430mm | |
Steering Gear | ZF 8118,power steering, hydraulic steering with power assistance | |
Fuel tank (L) | 300 | |
Tire | 12R22.5 tubeless tyre 7 pcs including one spare tire | |
Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake | |
Bin size | 4200*2300*1500 mm | |
Hydraulic system | middle positioned | |
Box Details | high steel bumper. side 6mm, front and bottom 8mm, Grid heavy duty design | |
Others | Engineering Yellow Color | |
