ZZ1107G451CD
Sinotruk

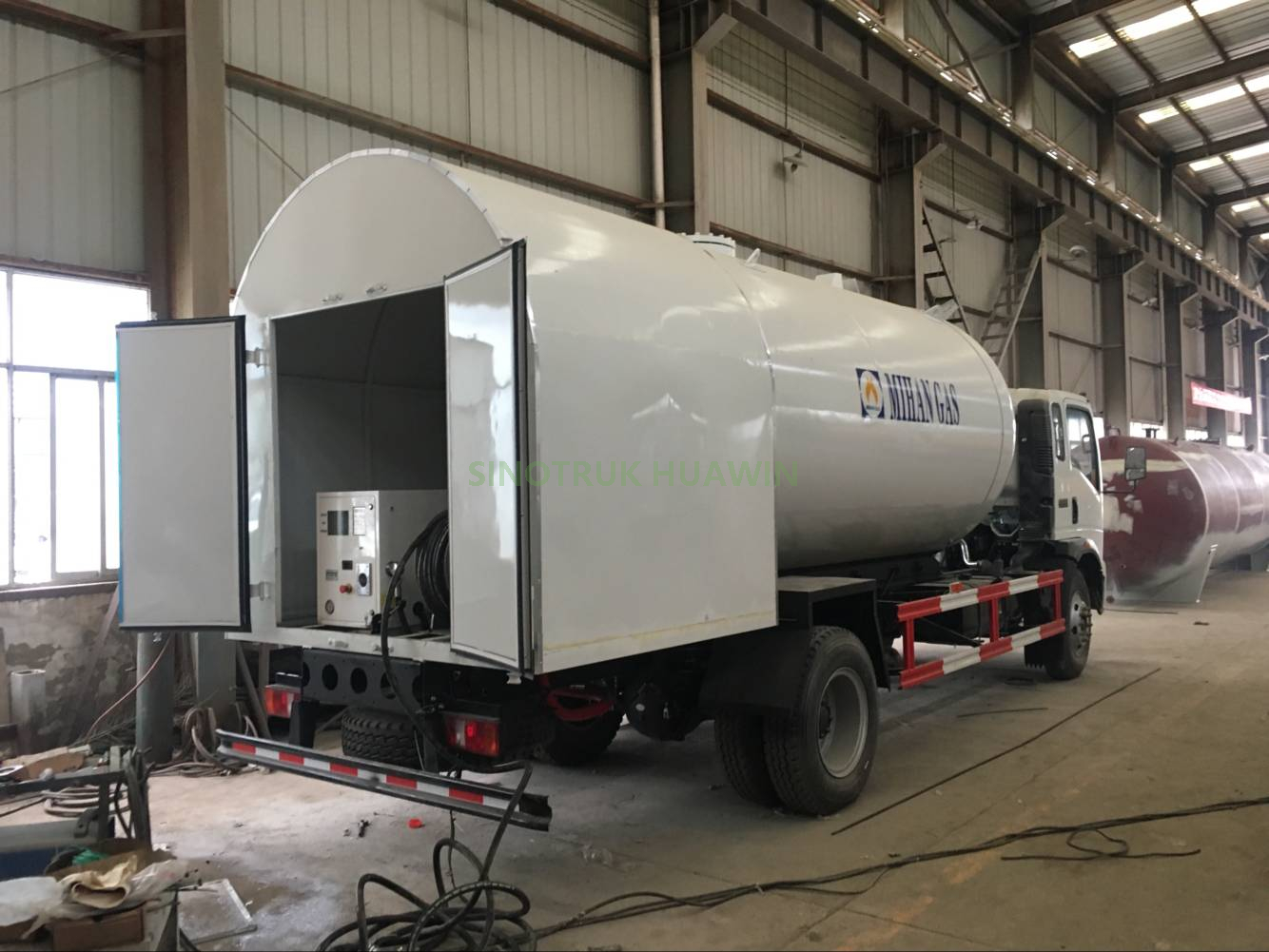

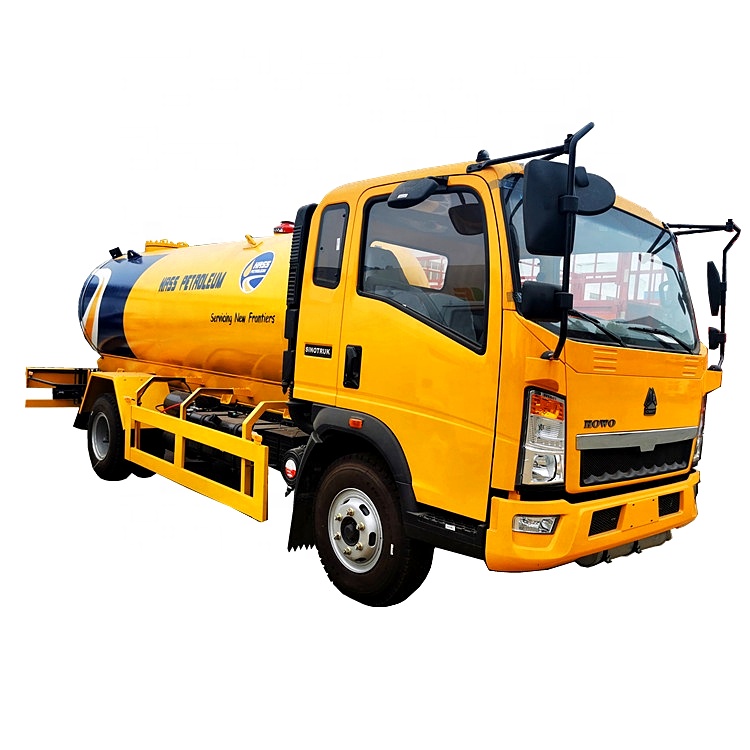

SINOTRUK HOWO 4x2 LPG Truck
| Item No. | Parameters |
| Overall Dimension | 7600x2300x2980 mm |
| Driving Model | Left hand drive or right hand drive |
| Gross Vehicle Weight | 11460 kg |
| Curb Weight | 6460 kg |
| Payload | 5000 kg |
| F/R Axle Loading | 3200/8000 kg |
| Wheel Base | 4200 mm |
| Front/rear Tread | 1886/1845 mm |
| Approach/Departure Angle | 27/20 degree |
| Engine | Yuchai 4110,YC4E160-33 |
| Engine horsepower | 160 HP EUROIII |
| Displacement | 4260mL (Diesel) |
| Max Driving Speed | 95 km/h |
| Gear Box | DC6J65TC,6 forward& 1 reverse |
| Cabin | 2~3 Passenger allowed,with A/C |
| Tire | 8.25R20 (6 pc with 1 spare) |
| LPG tank | |
| Volume: | 8~10cbm |
| Tank material: | Q345R |
| Tank diameter: | 1800mm |
| Tank thickness: | 10mm |
| End plate | 10mm |
| Tank length: | As designed |
| Gas phase | DN50 |
| Liquid Phase | DN50 or DN80 for option |
| Filling gas | Propane(LPG) |
| Design Pressure: | 1.61Mpa |
| Accessory | |
| Level Gauge | Manual rotation type,at the rear of tank |
| Safety Valve | 1,DN80 |
| Tool and Valve Box | 1 |
| LPG pump | 1 |
| LPG Volume Flow Meter | 1 |
| Filling Hose | 15 meters |
| Filling Nozzle | 1pc,Standard for 12.5kg cylinder |
| Thermometer | 1 |
| Pressure Gauge | 1 |
| Emergency Valve | 1 |
| Fender | Steel |
| Fire Extinguisher holder | 2 |
| Exhaust shaft | At the front of truck for safety |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
