| Quantity: | |
|---|---|
ZZ5347N4647
Sinotruk HOWO

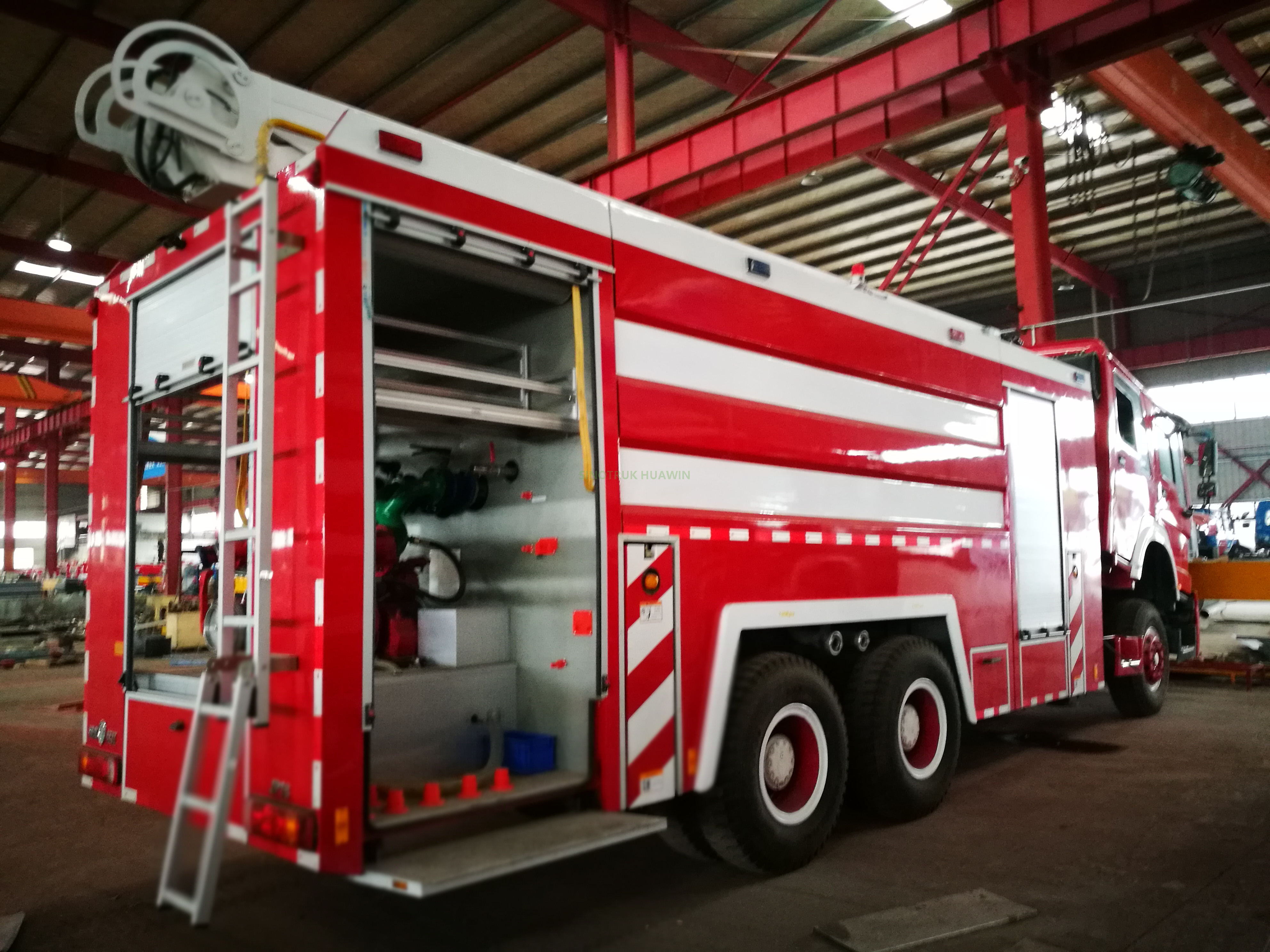

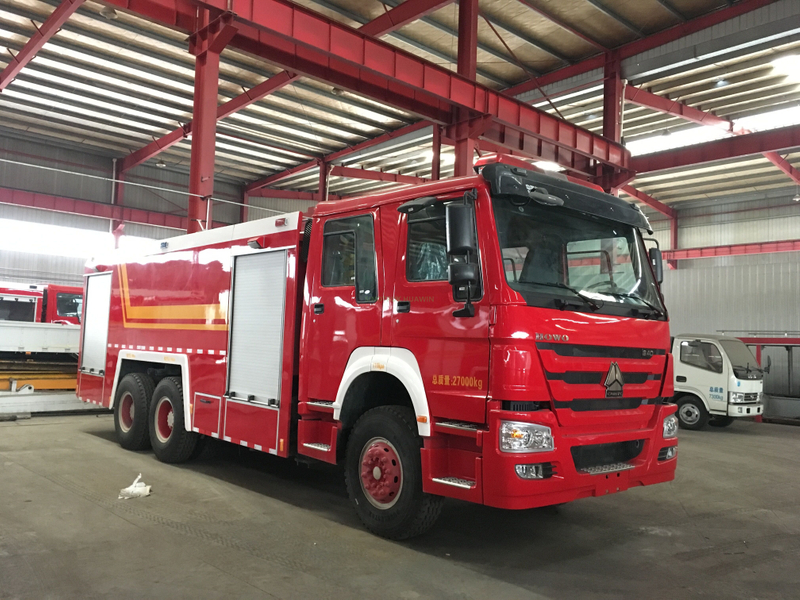

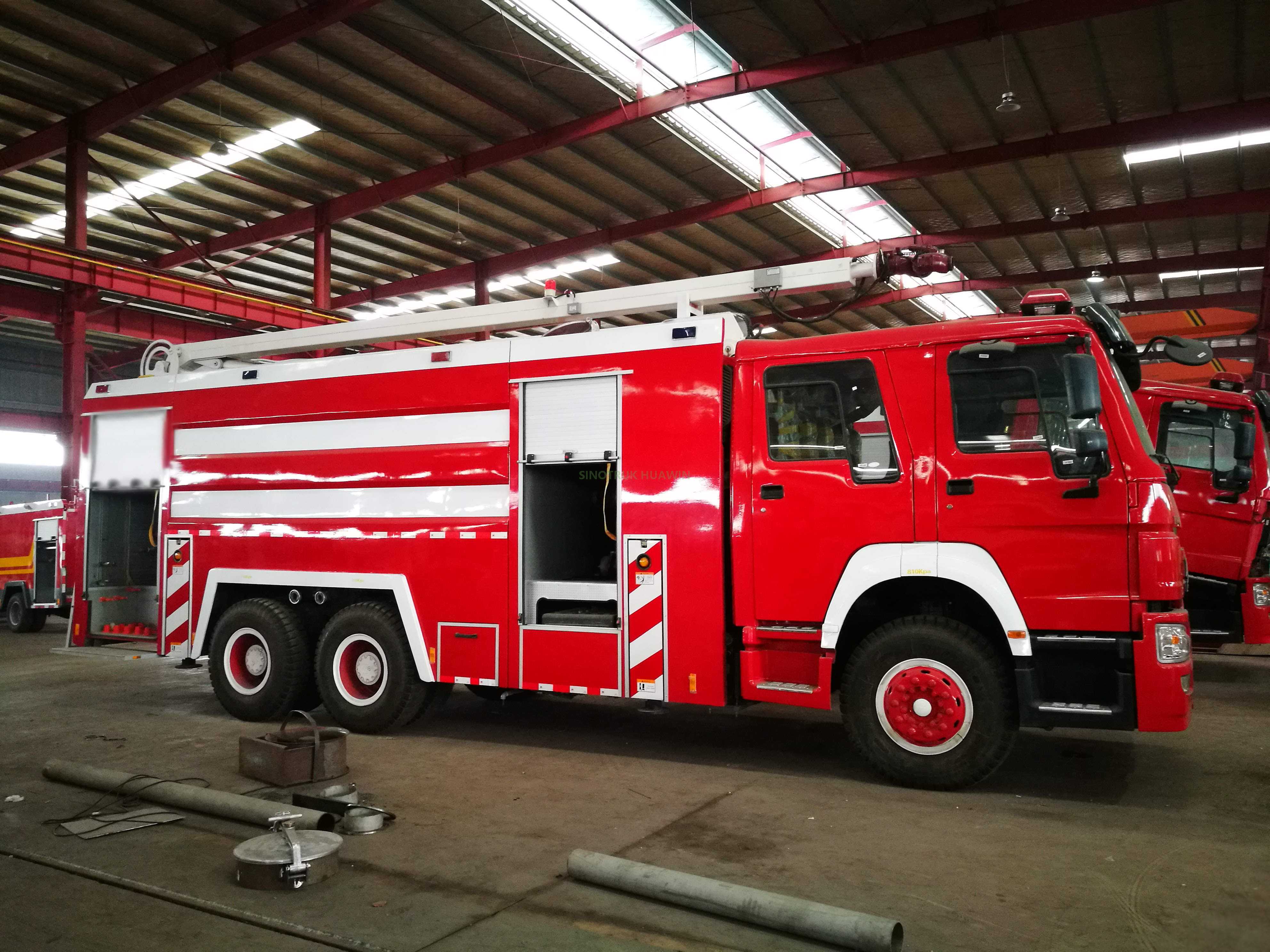

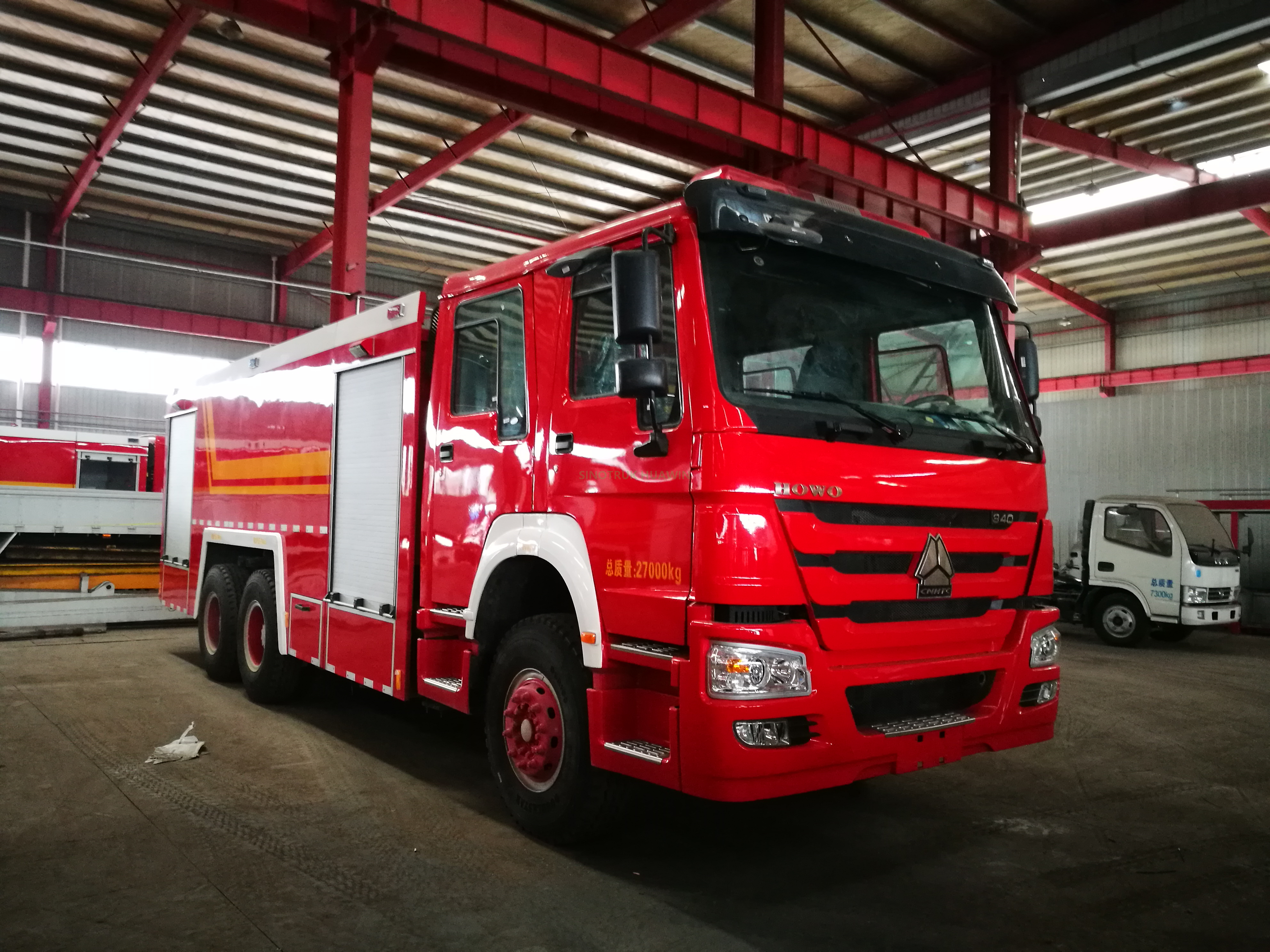

HOWO 6×4 Fire Fighting Truck-336HP 12CBM | ||
Cabin | Driving type 6x4 LHD | |
| Double Row Cab with Air condition | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 9720×2500×3585 |
| Wheel base (mm) | 4325+1350 | |
| Wheel track (front/rear) (mm) | 2022/1830 | |
Weight in KGS | Tare Weight | 14300 |
| Payload | 24000 | |
| Front axles loading capacity | 1x7000 | |
| Rear axles loading capacity | 2x16000 | |
| Max. driving speed（km/h） | 90 | |
Engine | Brand | SINOTRUK |
| Model | WD615.69 | |
Type | 4-stroke direct injection , 6-cylinder in-line , turbo-charged and inter-cooled | |
| Horse Power(HP) | 336 HP | |
| Emission standard | Euro Ⅱ | |
| Gearbox | HW19710, 10 Forwards gear & 2 reverse gear | |
| Clutch | Reinforced diaphragm clutch, diameter 430mm | |
| Steering Gear | ZF 8098,power steering, hydraulic steering with power assistance | |
| Fuel tank (L) | 400 | |
| Tire | 12R22.5 tubeless tyre,11 pcs including one spare tire | |
Tank Capacity (L) | Water: 10,000 | |
| Foam: 2,000 | ||

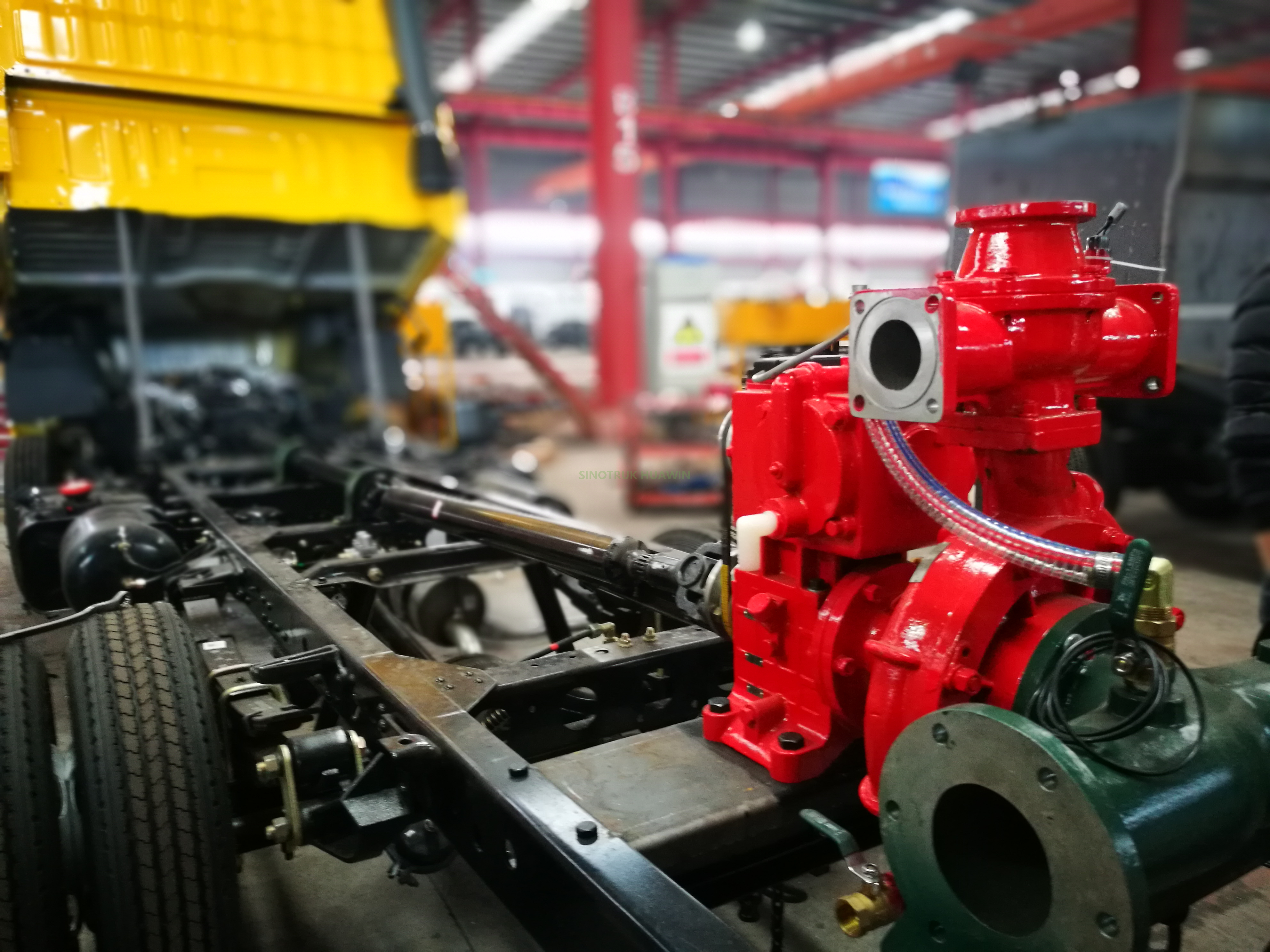

Fire Pump | Model | CB20.10/30.60 |
Flow | 60L/s at Low Pressure 1.0 MPa | |
| 30L/s at Middle Pressure 2.0 Mpa | ||
Fire Monitor | Model | PL48 |
| Pressure | 1.0～1.2MPa | |
| Flow | 48L/S | |
Range | Water≥65m | |
| Foam≥60m | ||
Rotation angle | 360° Horizontal | |
| -30°～80° Pitch Angle | ||
HOWO 6×4 Fire Fighting Truck-336HP 12CBM | ||
Cabin | Driving type 6x4 LHD | |
| Double Row Cab with Air condition | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 9720×2500×3585 |
| Wheel base (mm) | 4325+1350 | |
| Wheel track (front/rear) (mm) | 2022/1830 | |
Weight in KGS | Tare Weight | 14300 |
| Payload | 24000 | |
| Front axles loading capacity | 1x7000 | |
| Rear axles loading capacity | 2x16000 | |
| Max. driving speed（km/h） | 90 | |
Engine | Brand | SINOTRUK |
| Model | WD615.69 | |
Type | 4-stroke direct injection , 6-cylinder in-line , turbo-charged and inter-cooled | |
| Horse Power(HP) | 336 HP | |
| Emission standard | Euro Ⅱ | |
| Gearbox | HW19710, 10 Forwards gear & 2 reverse gear | |
| Clutch | Reinforced diaphragm clutch, diameter 430mm | |
| Steering Gear | ZF 8098,power steering, hydraulic steering with power assistance | |
| Fuel tank (L) | 400 | |
| Tire | 12R22.5 tubeless tyre,11 pcs including one spare tire | |
Tank Capacity (L) | Water: 10,000 | |
| Foam: 2,000 | ||
Fire Pump | Model | CB20.10/30.60 |
Flow | 60L/s at Low Pressure 1.0 MPa | |
| 30L/s at Middle Pressure 2.0 Mpa | ||
Fire Monitor | Model | PL48 |
| Pressure | 1.0～1.2MPa | |
| Flow | 48L/S | |
Range | Water≥65m | |
| Foam≥60m | ||
Rotation angle | 360° Horizontal | |
| -30°～80° Pitch Angle | ||
