Sinotruk Howo

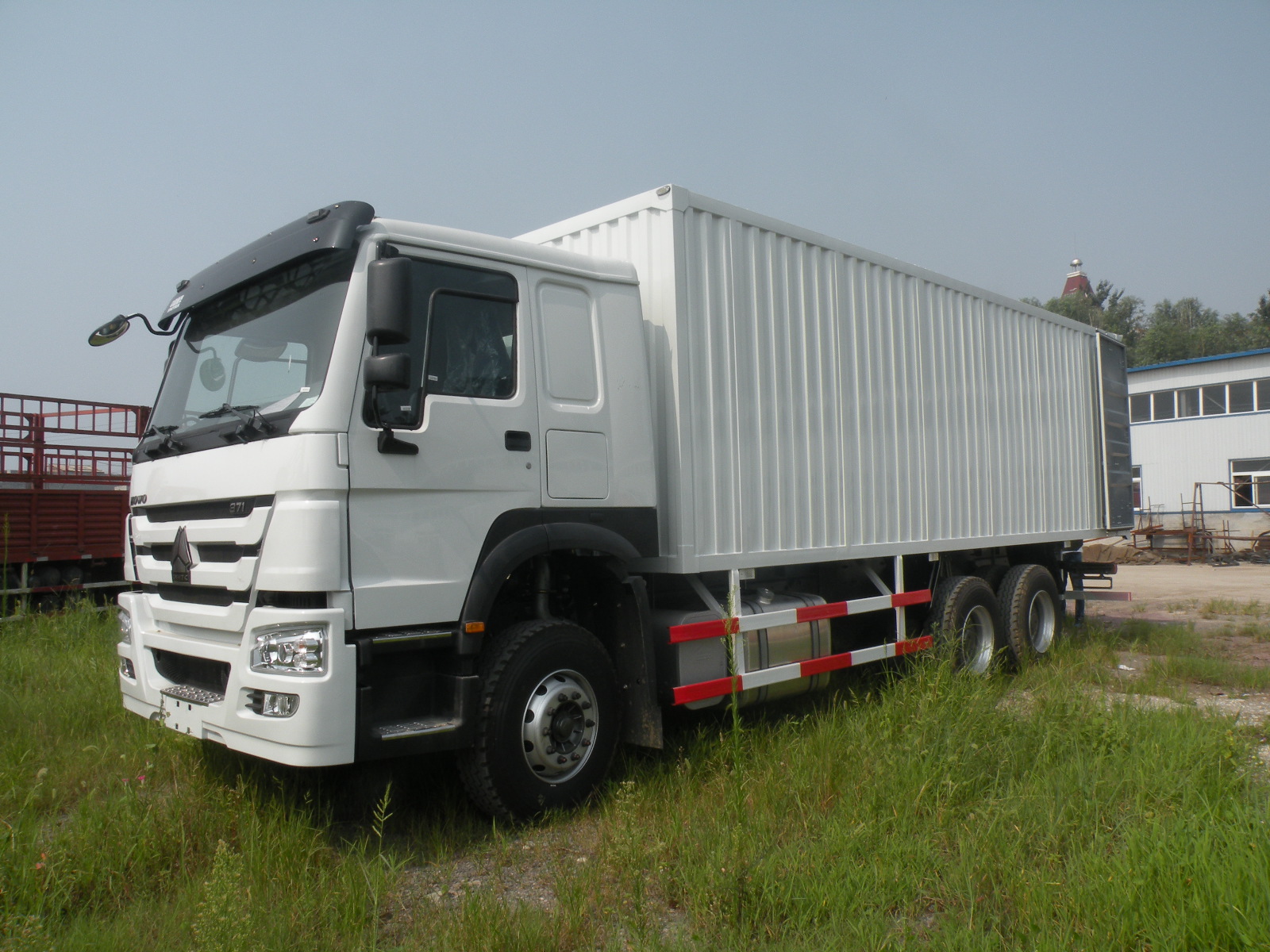

SINOTRUK HOWO 6×4 Workshop Truck
Cabin | Driving type 6x4 LHD | |
HW76 cabin with one bed, AC. 70°tillable to the front. as attached photo for ref only | ||
Vehicle Main Dimensions | Overall size (L x W x H)mm | 10350x2500x3300 |
Cargo box size(mm) | 7650mmx2300mmx2200mm | |
Wheel base (mm) | 4600 | |
Weight in KGS | Tare Weight | 11400 |
payload | 18000 | |
Front axles loading capacity | 1x9000 | |
Rear axles loading capacity | 1x16000 | |
Engine | Model | WD615.47 |
Type | Diesel, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power（HP) | 371HP | |
Emission standard | Euro II | |
Gearbox | HW19712, gear box, with 12 forward and 2 reverse | |
Steering Gear | Power steering | |
Clutch | Booster clutch | |
Oil tank | 400L | |
Tire | 12.00R22.5 Tubelessl tires ,11pcs including 1 spare tire. | |

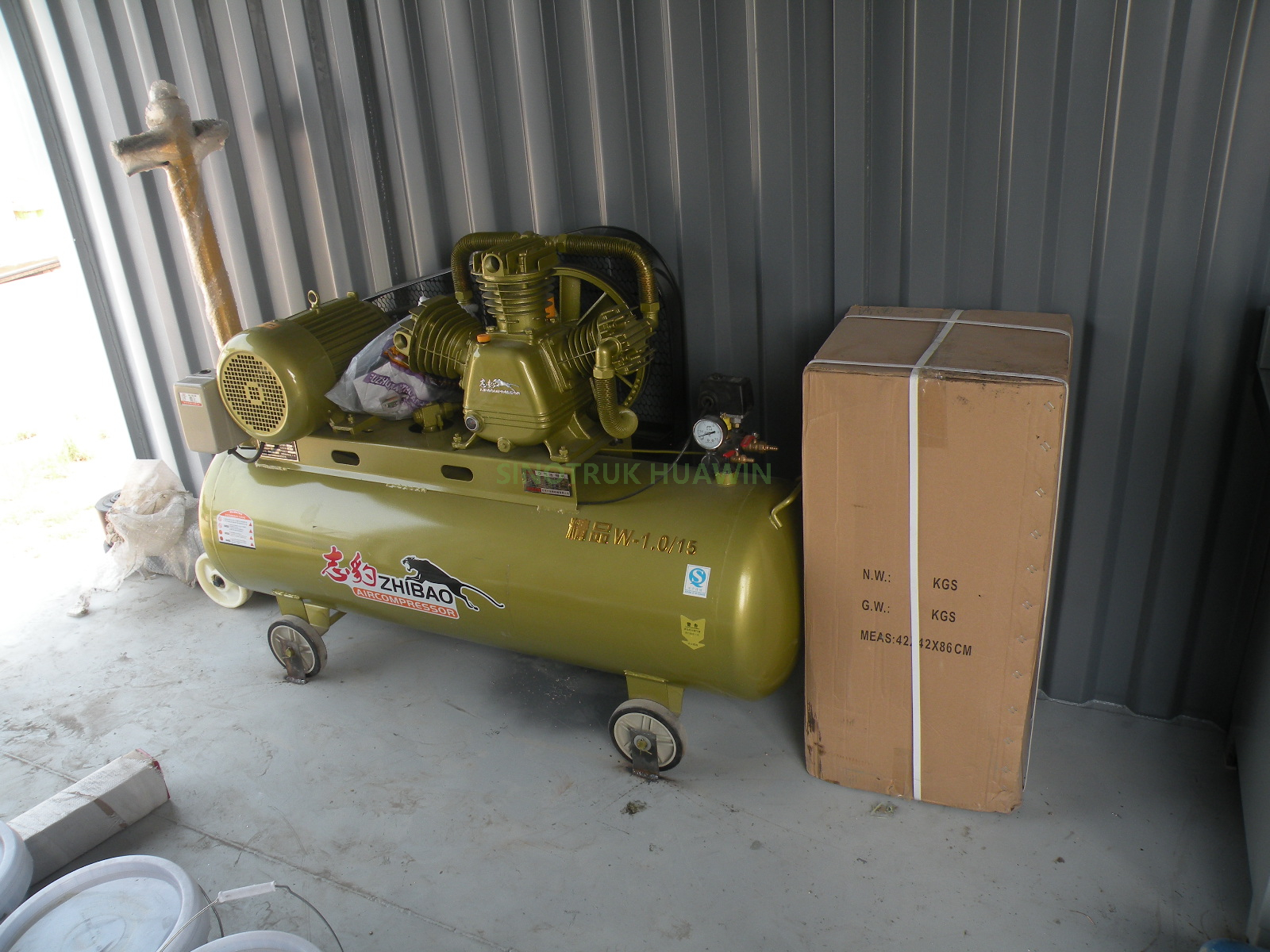

Tools and equipment | Details as attachment, equipments fixed to floor with bolts and cushion | |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
