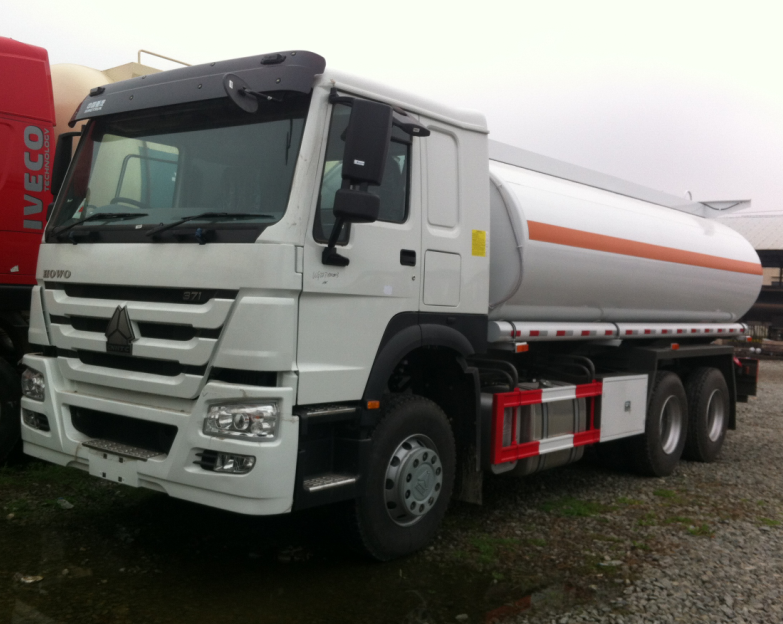

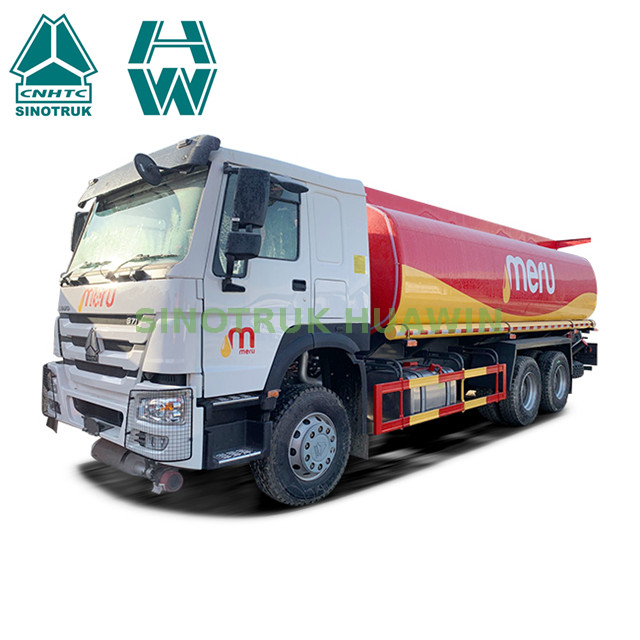

SINOTRUK HOWO 6X4 Fuel truck-20,000L
Cabin | Driving type 6x4 LHD |
|
HW76 cab, with one bed and air condition, 70°hydraulically tillable to the front as attached photo for ref. | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 9500×2500×3210 |
Wheel base (mm) | 4300+1350 | |
Wheel track (front/rear) (mm) | 2020/1800 | |
Weight in KGS | Tare Weight | 13500 |
payload | 25000 | |
Front axles loading capacity | 1x7000 | |
Rear axles loading capacity | 2x16000 | |
Max. driving speed（km/h） | 90 | |
Engine | Brand | SINOTRUK |
Model | WD615.69 | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charged and inter-cooled | |
Horse Power（HP) | 336 HP | |
Emission standard | Euro Ⅱ | |
Gearbox | HW15710, 10-speed forward and 2 reverse gear | |
Clutch | Reinforced diaphragm clutch, diameter 430mm | |
Steering | ZF8098,power steering, hydraulic steering with power assistance | |
Oil tank | 400 liters | |
Tire | 12R22.5 tubeless tyre 11 pcs including one spare tire | |
Tank Size | 20,000 liters | |
Tank Material | Q235. End plate thickness:5mm, tanker body thickness:5mm | |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
