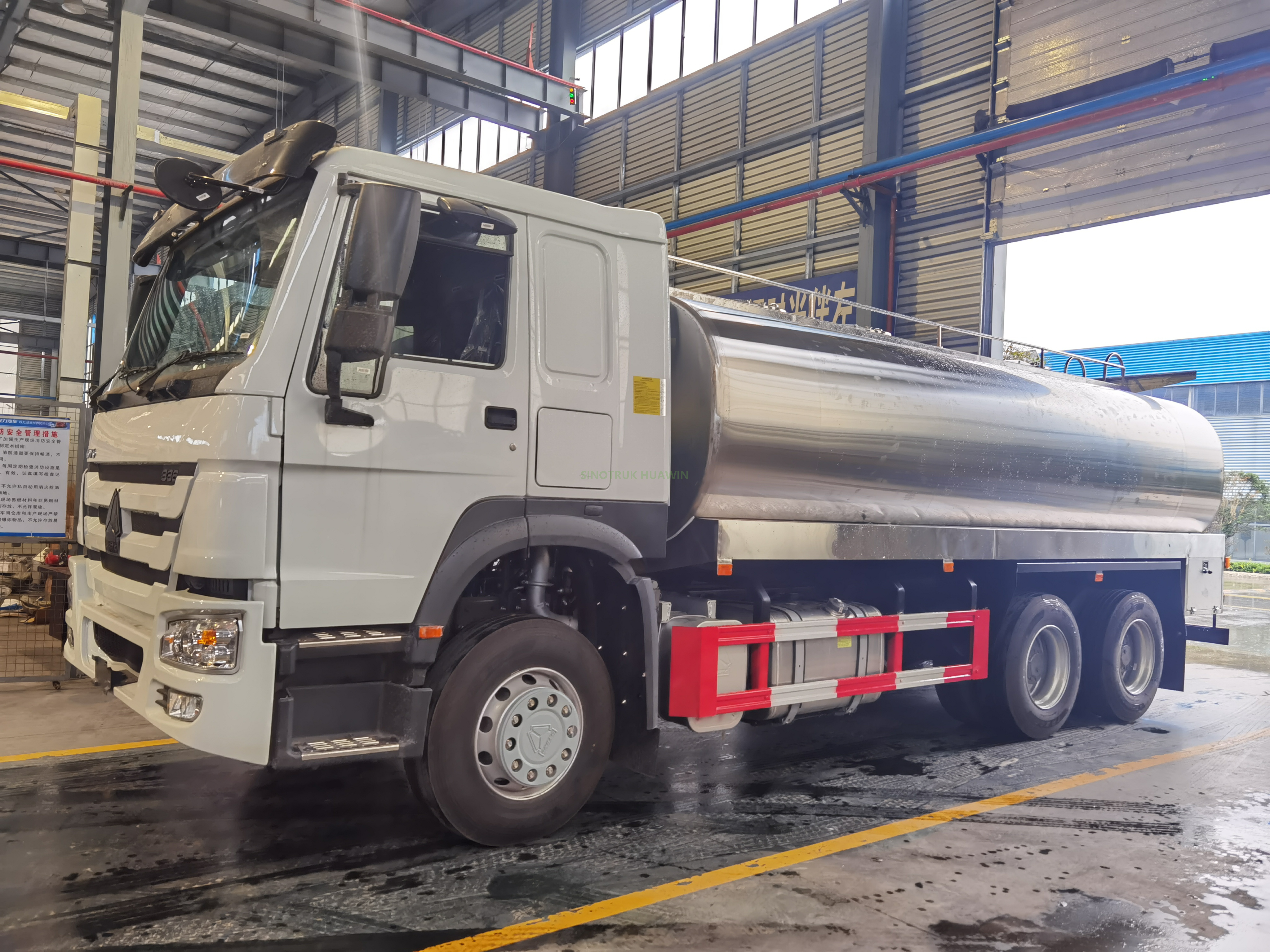

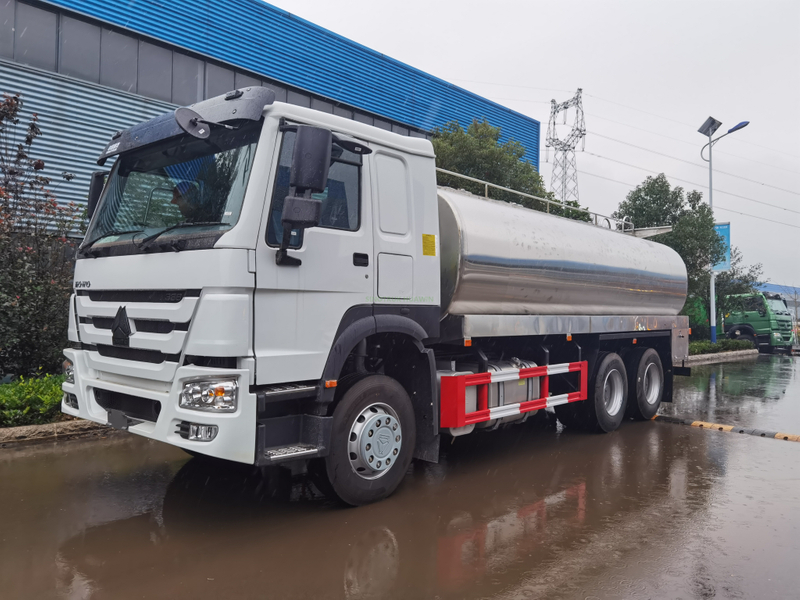

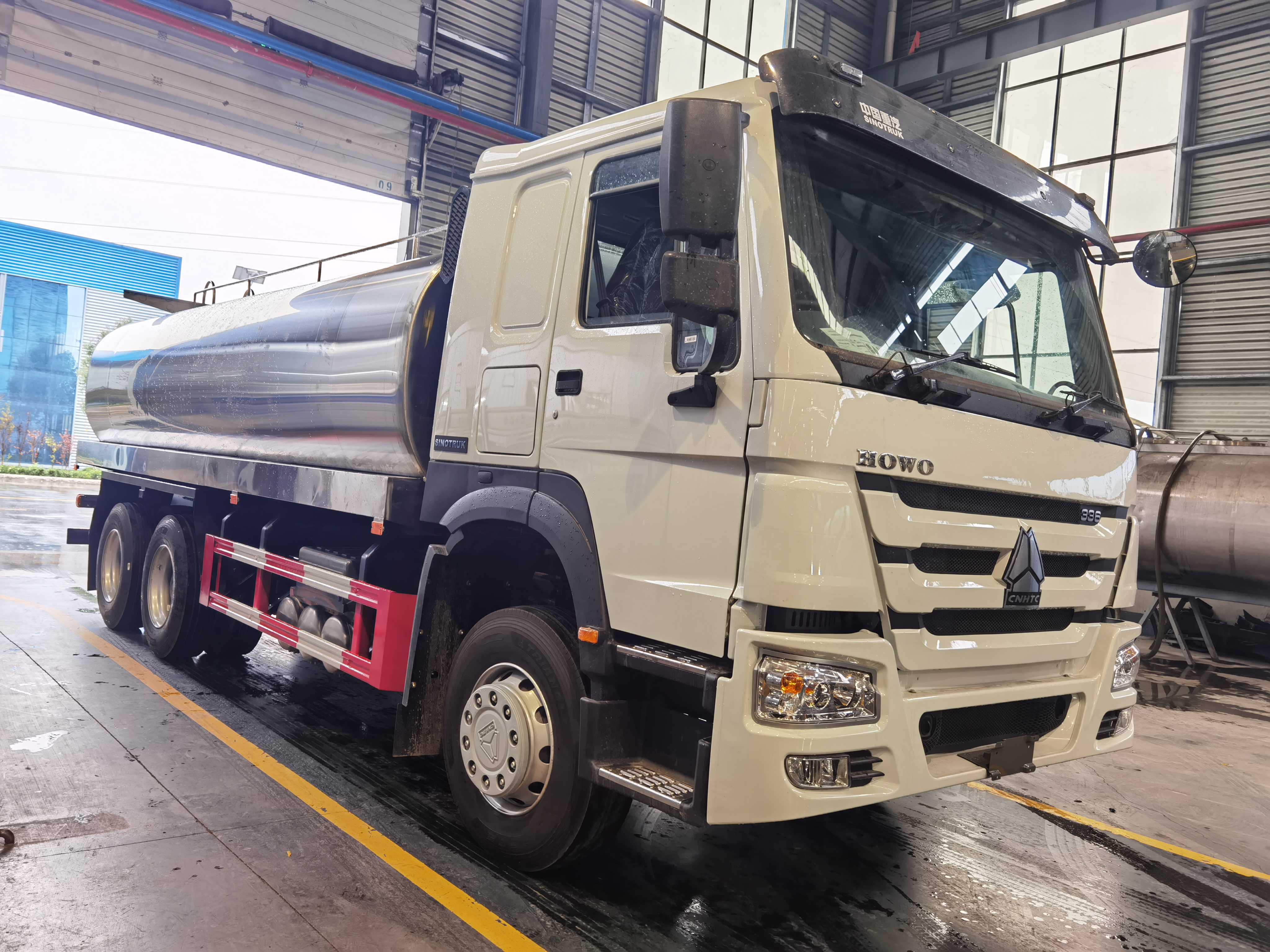

Main Specifications for 6X4 15,000liters Milk tank truck
(For other tank volume, please contact me directly)
|Cabin||Driving type 6x4 LHD/RHD |
HW76 cab, with one bed and air condition
|Vehicle Main Dimensions||Overall dimensions (L x W x H)mm||9500×2500×3210|
|Wheel base (mm)||4300+1350|
|Wheel track (front/rear) (mm)||2020/1800|
|Weight in KGS||Tare Weight||13500|
|Front axles loading capacity||1x7000|
|Rear axles loading capacity||2x16000|
|Max. driving speed(km/h)||90|
|Type||4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charged and inter-cooled|
|Horse Power(HP)||371 HP|
|Emission standard||Euro 2|
|Gearbox||HW15710, 10-speed forward and 2 reverse gear|
|Clutch||Reinforced diaphragm clutch, diameter 430mm|
|Steering||ZF8098,power steering, hydraulic steering with power assistance|
|Oil tank||400 liters|
|Tire||12R22.5 tubeless tyre 11 pcs including one spare tire|
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
1. Tractor Truck, Cargo Truck, Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, fuel tank semi trailer, etc. )
SINOTRUK is one of the biggest heavy duty truck manufacturer in China, also the absolute No. 1 for exporting.
We manufacture HOWO tractor truck, dump truck, concrete mixer, tanker truck, flat bed semi trailer and other special trucks, etc....
About the shipping
We SINOTRUK have rich experience in RORO, BULK CARGO, 40HQ, 40FR etc. Every year thousands of our trucks and trailers are sold to Myanmar, Tanzania, Zambia, Ethiopia, Nigeria, Australia, Russia and etc, they have gained great popularity and excellent feedback from our customers. We also export thousands of spare parts to different countries.
Welcome to visit our factory.
