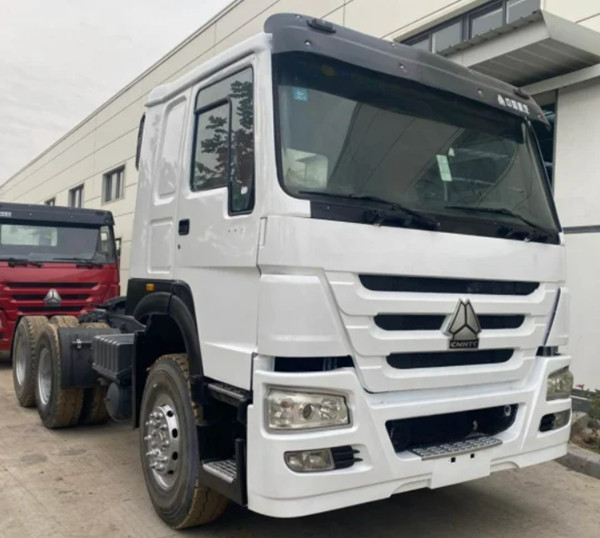

SINOTRUK HOWO 6x4 Tractor Head Truck

Views: 0 Author: Site Editor Publish Time: 2021-12-10 Origin: Site

HOWO Tractor Truck		ZZ4257V3241W
Technical Performance	Drive type	6x4
	Overall Dimensions(mm)	6985x2496x3850
	Transmission	SINOTRUK HW19710, Manual), 10 forwards speeds+2 reverse speeds WABCO system (AMT is optional)
	Wheelbase(mm)	3200+1400
	Rear tread (mm)	1830
	Overall weight (kg)	25, 000
	Gross Vehicle Weight (kg)	8, 800
	Retractor bearing capacity (kg)	16, 070
	Rated Pull Weight	80t
	Max. Speed (km/h)	101
Engine	Type	WD615, 371hp, Euro 2 mechenical
	Displacement (cc)	11.596L INSIDE CAB PIC
	Max. Output power(hp/rpm)	371hp
Clutch		Spring plate dry diaphragm spring diameter Φ 430, hydraulic operating with air assistance
Driving axle		HC16, 16tons (HOWO heavy hub reduction driving axle) Ratio: 4.42
Front axle		HF9, 9 tons with plate (disc) brake
