ZZ1257N3667
SINOTRUK HOWO

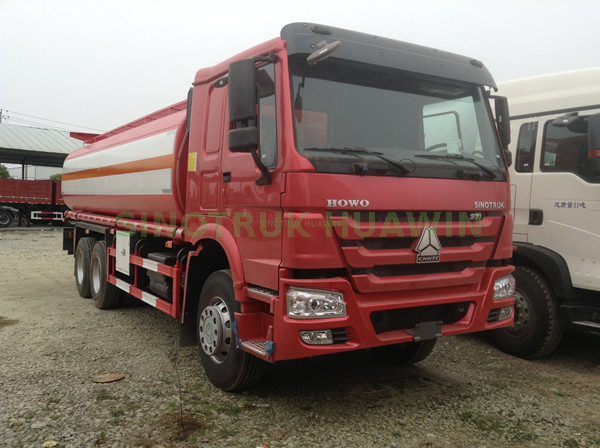

SINOTRUK HOWO 8X4 oil Fuel Tank Truck for sale
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 11500×2500×3500 |
Wheel base (mm) | 1800+4600+1350 | |
Wheel track (front/rear) (mm) | 2020/1830 | |
Weight in KGS | Tare Weight | 15000 |
payload | 40000 | |
Front axles loading capacity | 2x7000 | |
Rear axles loading capacity | 2x16000 | |
Max. driving speed（km/h） | 90 | |
Engine | Brand | SINOTRUK |
Model | WD615.47 | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charged and inter-cooled | |
Horse Power（HP) | 371 HP | |
Emission standard | Euro Ⅱ | |
Gearbox | Hw19710, 10-speed forward and 2 reverse gear | |
Clutch | Reinforced diaphragm clutch, diameter 430mm | |
Steering | ZF8098,power steering, hydraulic steering with power assistance | |
Oil tank | 400 liters | |
Tire | 12R22.5 tubeless tyre 13 PCS including one spare tire | |
Tank specifications | Volume: 30,000 liters | |
Tank Material | Q235. End plate thickness:6mm, tanker body thickness:5mm | |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
SINOTRUK HOWO 8X4 oil Fuel Tank Truck for sale
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 11500×2500×3500 |
Wheel base (mm) | 1800+4600+1350 | |
Wheel track (front/rear) (mm) | 2020/1830 | |
Weight in KGS | Tare Weight | 15000 |
payload | 40000 | |
Front axles loading capacity | 2x7000 | |
Rear axles loading capacity | 2x16000 | |
Max. driving speed（km/h） | 90 | |
Engine | Brand | SINOTRUK |
Model | WD615.47 | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charged and inter-cooled | |
Horse Power（HP) | 371 HP | |
Emission standard | Euro Ⅱ | |
Gearbox | Hw19710, 10-speed forward and 2 reverse gear | |
Clutch | Reinforced diaphragm clutch, diameter 430mm | |
Steering | ZF8098,power steering, hydraulic steering with power assistance | |
Oil tank | 400 liters | |
Tire | 12R22.5 tubeless tyre 13 PCS including one spare tire | |
Tank specifications | Volume: 30,000 liters | |
Tank Material | Q235. End plate thickness:6mm, tanker body thickness:5mm | |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
