| Quantity: | |
|---|---|
ZZ1257N3647
SINOTRUK HOWO

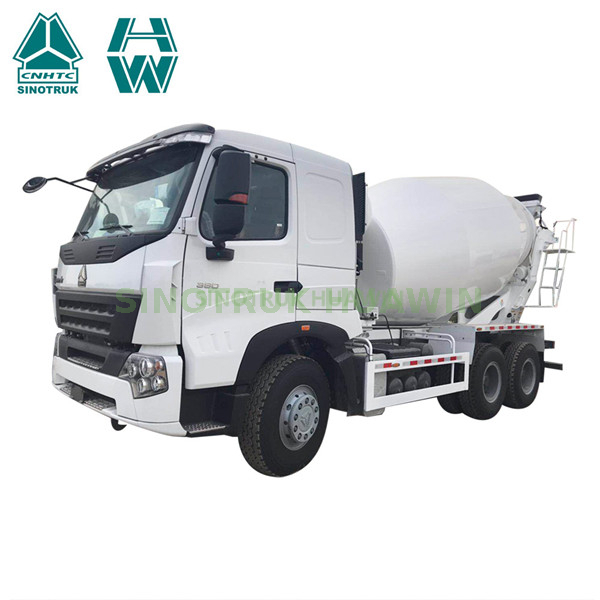

SINOTRUK HOWO A7 6X4 Concrete Mixer Truck for sale
Vehicle Main Dimensions | (L x W x H)mm | 9300x2500x3950 | |
Wheel base (mm) | 3825+1350 | ||
Wheel track (front/rear) (mm) | 2022/1830 | ||
Approach/Departure angle(°) | 16/24 | ||
Weight in KGS | Tare Weight | 13500 | |
Loading Capacity | 30000 | ||
Front axles loading capacity | 1x9000 | ||
Rear axles loading capacity | 2x16000 | ||
Engine | Brand | Sinotruk | |
Model | WD615.47 | ||
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
Horse Power（HP) | 371 | ||
Emission standard | Euro Ⅱ | ||
Gearbox | HW19710 , 10 forwards & 2 reverse | ||
Clutch | Reinforced diaphragm clutch, diameter 430mm | ||
Steering Gear | ZF 8118, power steering, hydraulic steering with power assistance | ||
Fuel tank (L) | 400 | ||
Tire | 12R22.5 Tubeless Radial Tyre, 11 pieces including one spare tire | ||
Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake | ||
Mixer Body
Thickness | End plate | 6mm high tensile strength steel |
Mixer body | 5 mm high tensile strength steel | |
Mixer body Volume | M3 | 10 M3 |
Hydraulics | Motor, Pump | Italian or American Brand |
Gear box | Italian Brand |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
