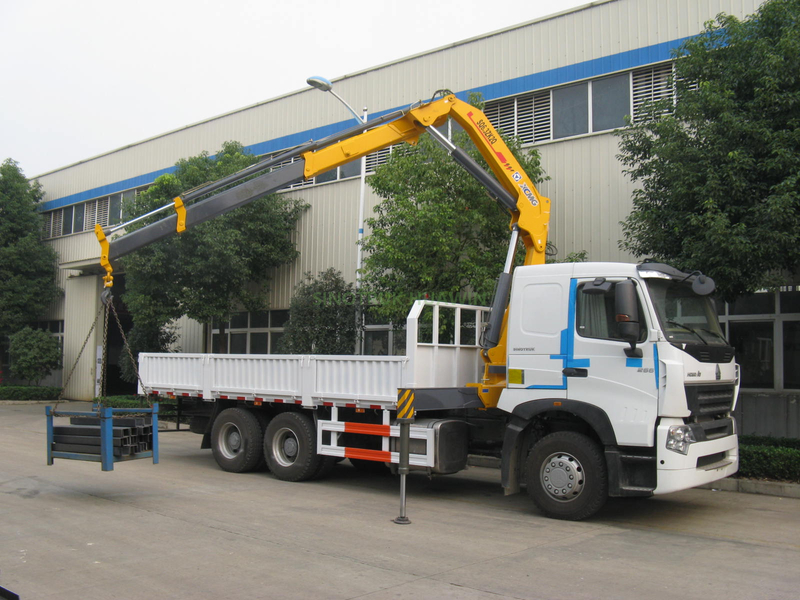

SINOTRUK HOWO A7 6x4 Crane Truck with XCMG 14T Crane

Sinotruk HOWO 6x4 folded boom truck with XCMG 14T Crane are simply the best utility truck cranes you can buy. Built to perform under the toughest conditions and designed for durability and long service life.
  • ZZ1257N4341
  • Sinotruk
SINOTRUK HOWO A7 6x4 Crane Truck



Driving type 6x4      LHD
A7 cab, with air condition and one bed, 70°hydraulically tillable to the front

Vehicle Main Dimensions

Overall dimensions (L x W x H) mm 11000×2500×3900
Carriage Size (L x W x H) mm 7000×2300×600
Wheel base  (mm) 5225+1350
Wheel track  (front/rear) (mm) 2022/1830

Weight in KGS

Tare Weight 16100
payload 25000
Front axles loading capacity 1x9000
Rear axles loading capacity 2x16000
Max. driving speedkm/h 90


Brand Sinotruck
Model WD615.47


4-stroke direct injection ,  6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse PowerHP) 371
Emission standard Euro
Gearbox HW19710 10 Forwards gear & 2 reverse gear
Clutch Reinforced diaphragm clutch, diameter 430 mm
Steering Gear ZF 8118,power steering, hydraulic steering with power assistance
Tire  12R22.5 tubeless tyre 11 pcs including one spare tire

Crane specifications

Brand : XCMG
Type: Telescopic
Max lift capacity: 14000 kg
Max working radius 15.8 m, Max lifting height : 17.8 m

Specifications of the Crane

Model SQ14SK4Q Unit
Max Lifting Capacity 14000 kg
Max Lifting Moment 35 T.M
Recommend Power 32 kw
Max Oil Flow of Hydraulic System 63 L/min
Max Pressure of Hydraulic System 26 MPa
Oil Tank Capacity 160 L
Rotation Angle All Rotation
Crane Weight 4800 kg
Installation Space 1300 mm

SQ14SK4Q Lifting capability diagram

Working radius(m)   2.5 5 8 11 13.2 15.8
Lifting capacity(kg) 14000 6000 3500 2300 1800 1200


Our Advantage

1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers


1. One year quality guarantee for three key parts axles, engine, transmission or within 100000km, which comes the first.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);

5.Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.
