ZZ1257N4341
Sinotruk

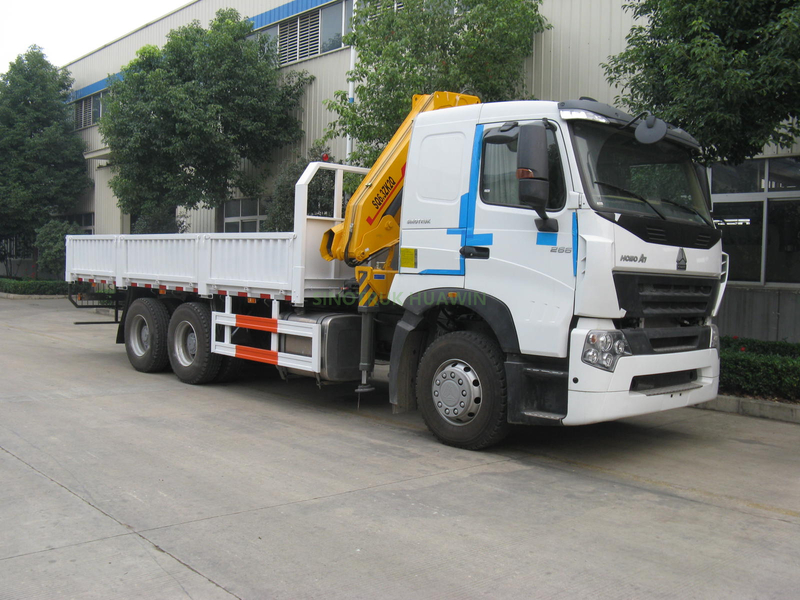

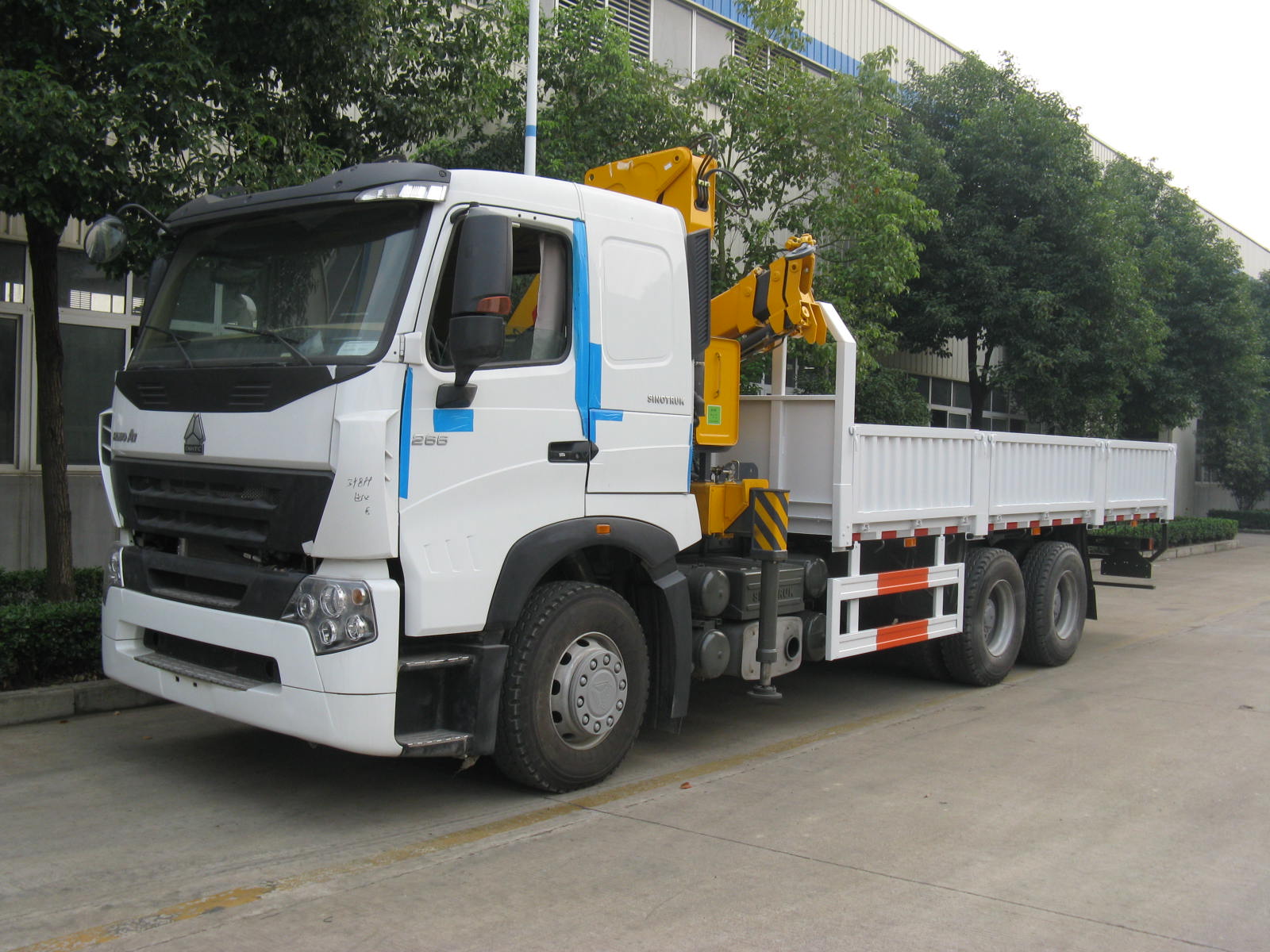

| SINOTRUK HOWO A7 6x4 Crane Truck | ||
Cabin | Driving type 6x4 LHD | |
| A7 cab, with air condition and one bed, 70°hydraulically tillable to the front | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H) mm | 11000×2500×3900 |
| Carriage Size (L x W x H) mm | 7000×2300×600 | |
| Wheel base (mm) | 5225+1350 | |
| Wheel track (front/rear) (mm) | 2022/1830 | |
Weight in KGS | Tare Weight | 16100 |
| payload | 25000 | |
| Front axles loading capacity | 1x9000 | |
| Rear axles loading capacity | 2x16000 | |
| Max. driving speed（km/h） | 90 | |
Engine | Brand | Sinotruck |
| Model | WD615.47 | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power（HP) | 371 | |
| Emission standard | Euro Ⅱ | |
| Gearbox | HW19710 10 Forwards gear & 2 reverse gear | |
| Clutch | Reinforced diaphragm clutch, diameter 430 mm | |
| Steering Gear | ZF 8118,power steering, hydraulic steering with power assistance | |
| Tire | 12R22.5 tubeless tyre 11 pcs including one spare tire | |

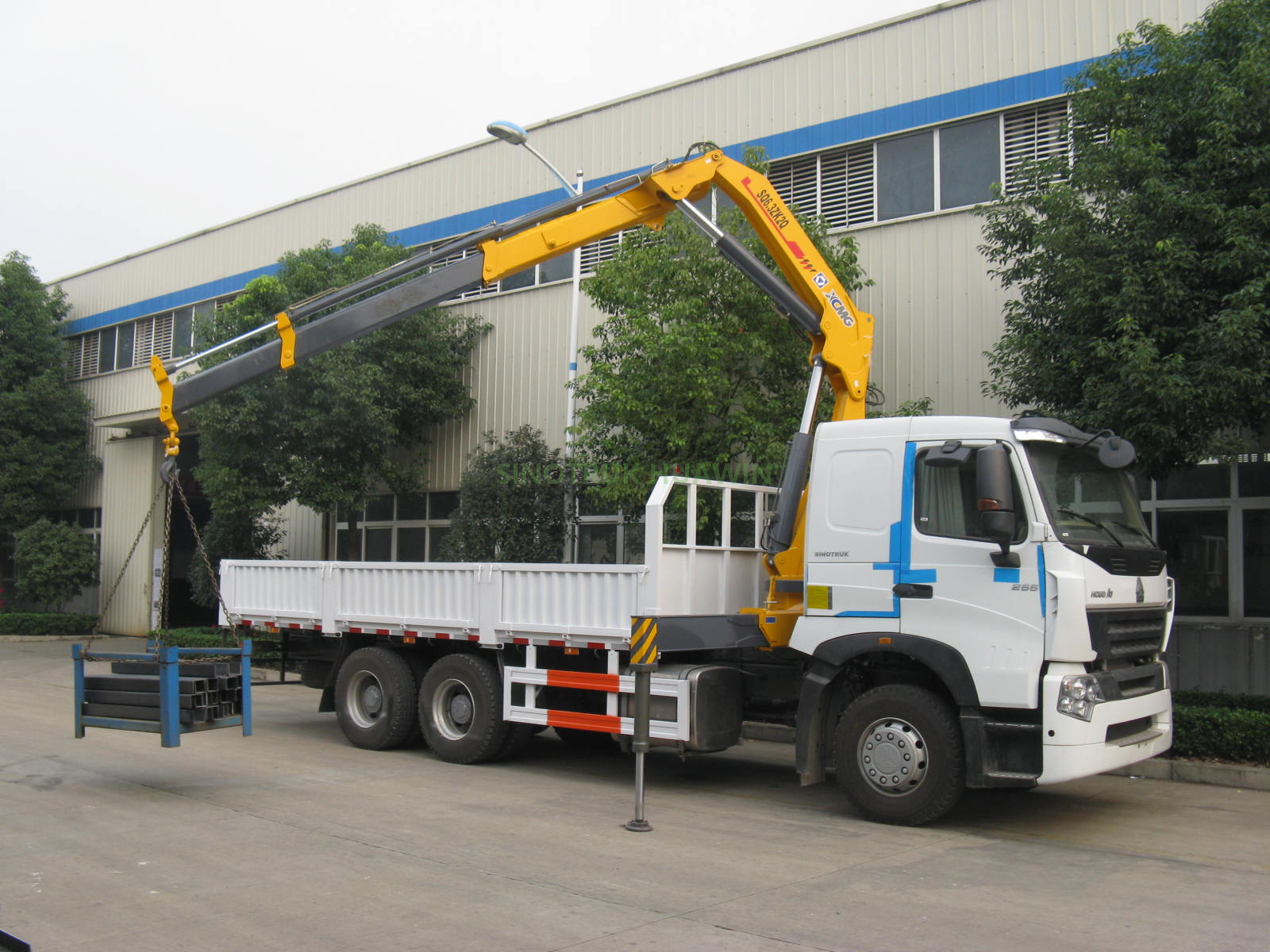

Crane specifications | Brand : XCMG | |
| Type: Telescopic | ||
| Max lift capacity: 14000 kg | ||
| Max working radius 15.8 m, Max lifting height : 17.8 m | ||
Specifications of the Crane
| Model | SQ14SK4Q | Unit |
| Max Lifting Capacity | 14000 | kg |
| Max Lifting Moment | 35 | T.M |
| Recommend Power | 32 | kw |
| Max Oil Flow of Hydraulic System | 63 | L/min |
| Max Pressure of Hydraulic System | 26 | MPa |
| Oil Tank Capacity | 160 | L |
| Rotation Angle | All Rotation | |
| Crane Weight | 4800 | kg |
| Installation Space | 1300 | mm |
SQ14SK4Q Lifting capability diagram
| Working radius(m) | 2.5 | 5 | 8 | 11 | 13.2 | 15.8 |
| Lifting capacity(kg) | 14000 | 6000 | 3500 | 2300 | 1800 | 1200 |
