ZZ4257N3247
Sinotruk HOWO

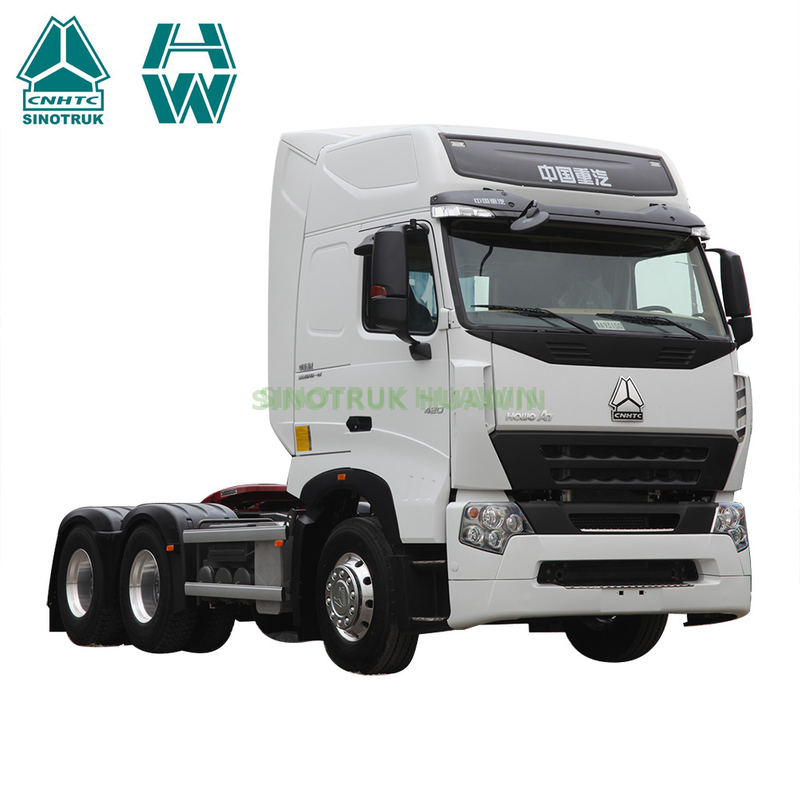

Sinotruk 6X4 HOWO A7 tractor truck | ||
Cabin | Driving type 6x4 LHD | |
A7-P Luxury cabin, with Air condition and one bed, 70°hydraulically tillable to the front as attached photo for ref. with air condition | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 6985×2550×3250 |
Wheel base (mm) | 3225+1350 | |
Wheel track (front/rear) (mm) | 2027/1830 | |
Approach/Departure angle(°) | 15/46 | |
Weight in KGS | Tare Weight | 9200 |
Hauling Capacity | 50000 | |
Front axles loading capacity | 1x7000 | |
Rear axles loading capacity | 2x16000 | |
Max. driving speed(km/h) | 101 | |
Engine | Brand | Sinotruk |
Model | WD615.47 | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power(HP) | 371@2200 rpm | |
Emission standard | Euro Ⅱ | |
Gearbox | HW19710, 10-speed forward, 2 reverse gears | |
Clutch | Reinforced diaphragm clutch, diameter 430mm | |
Steering Gear | ZF8098, power steering, hydraulic steering with power assistance from Germany | |
Fuel tank (L) | 400 | |
Tire | 12R22.5 tubeless tyre 11 pcs including one spare tire | |
Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
Sinotruk 6X4 HOWO A7 tractor truck | ||
Cabin | Driving type 6x4 LHD | |
A7-P Luxury cabin, with Air condition and one bed, 70°hydraulically tillable to the front as attached photo for ref. with air condition | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 6985×2550×3250 |
Wheel base (mm) | 3225+1350 | |
Wheel track (front/rear) (mm) | 2027/1830 | |
Approach/Departure angle(°) | 15/46 | |
Weight in KGS | Tare Weight | 9200 |
Hauling Capacity | 50000 | |
Front axles loading capacity | 1x7000 | |
Rear axles loading capacity | 2x16000 | |
Max. driving speed(km/h) | 101 | |
Engine | Brand | Sinotruk |
Model | WD615.47 | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power(HP) | 371@2200 rpm | |
Emission standard | Euro Ⅱ | |
Gearbox | HW19710, 10-speed forward, 2 reverse gears | |
Clutch | Reinforced diaphragm clutch, diameter 430mm | |
Steering Gear | ZF8098, power steering, hydraulic steering with power assistance from Germany | |
Fuel tank (L) | 400 | |
Tire | 12R22.5 tubeless tyre 11 pcs including one spare tire | |
Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
Our Advantage
1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers
Warranty
1. One year quality guarantee for three key parts axles, engine, transmission or within 100000km, which comes the first.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);
5.Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.
Our certificates
Our Advantage
1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers
Warranty
1. One year quality guarantee for three key parts axles, engine, transmission or within 100000km, which comes the first.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);
5.Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.
Our certificates
Main products
1. Tractor Truck, Cargo Truck, Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, fuel tank semi trailer, etc. )
Company Introduction
SINOTRUK is one of the biggest heavy duty truck manufacturer in China, also the absolute No. 1 for exporting.
We manufacture HOWO tractor truck, dump truck, concrete mixer, tanker truck, flat bed semi trailer and other special trucks, etc....
Factory view
Main products
1. Tractor Truck, Cargo Truck, Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, fuel tank semi trailer, etc. )
Company Introduction
SINOTRUK is one of the biggest heavy duty truck manufacturer in China, also the absolute No. 1 for exporting.
We manufacture HOWO tractor truck, dump truck, concrete mixer, tanker truck, flat bed semi trailer and other special trucks, etc....
Factory view
About the shipping, we SINOTRUK have rich experience in RORO, BULK CARGO, 40HQ, 40FR etc. Every year thousands of our trucks and trailers are sold to Myanmar, Tanzania, Zambia, Ethiopia, Nigeria, Australia, Russia and etc, they have gained great popularity and excellent feedback from our customers. We also export thousands of spare parts to different countries.
Welcome to visit our factory.
About the shipping, we SINOTRUK have rich experience in RORO, BULK CARGO, 40HQ, 40FR etc. Every year thousands of our trucks and trailers are sold to Myanmar, Tanzania, Zambia, Ethiopia, Nigeria, Australia, Russia and etc, they have gained great popularity and excellent feedback from our customers. We also export thousands of spare parts to different countries.
Welcome to visit our factory.
