| Quantity: | |
|---|---|
ZZ4257N324

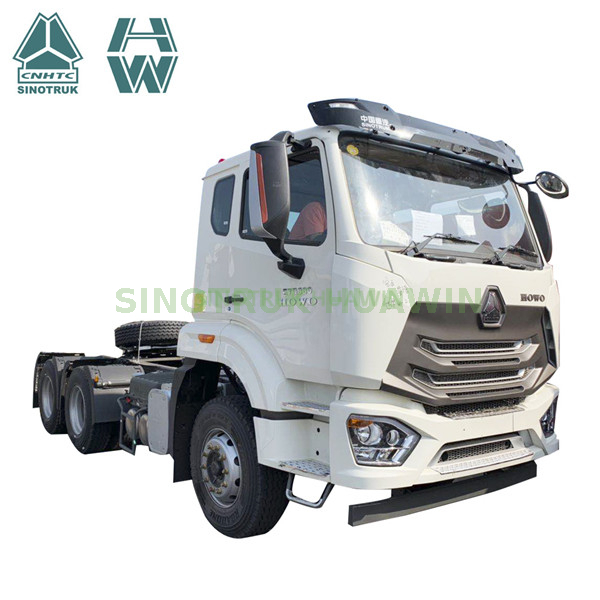

SINOTRUK HOWO
Common Models and Main Configurations of E7G
Vehicle Main Dimensions | Overall dimensions (L x W x H) mm | 6850x2500x3200 |
Wheel base (mm) | 3225+1350 | |
Wheel track (front/rear) (mm) | 2022/1830/1830 | |
Weight in KGS | Tare Weight (kg) | 8000 |
Hauling Capacity (kg) | 40000 | |
Front axles | Rated load 7ton, drum brake | |
Rear axles | Loading capacity 2*13ton, axle type | |
Max. driving speed（km/h） | 102 | |
Engine | Brand | SINOTRUK |
Model | WD615.47 | |
Type | 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power（HP) | 371/ 2200 rpm | |
Max torque (N.m) | 1500/ 1100-1600 rpm | |
Engine capacity (cc) | 9726 | |
Emission standard | Euro II | |
10Gearbox | HW19710 manual transmission, 10-fowards: 14.284, 10.623, 7.871, 5.876, 4.375, 3.265, 2.428, 1.799, 1.343, 1.00; 2-reverse: 13.913, 3.18; gear oil capacity: 12 L | |
Clutch | Reinforced diaphragm clutch, diameter 430mm | |
Steering Gear | ZF 8098, power steering, hydraulic steering with power assistance | |
Fuel tank (L) | 400 Liters Aluminum oil tank | |
Tire | 315/80R22.5 tubeless tire 11 pcs including one spare | |
Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels | |
Accessories | ABS, Air bag seat for driver, JOST 2” fifth wheel, high steel bumper | |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
