Sinotruk Howo

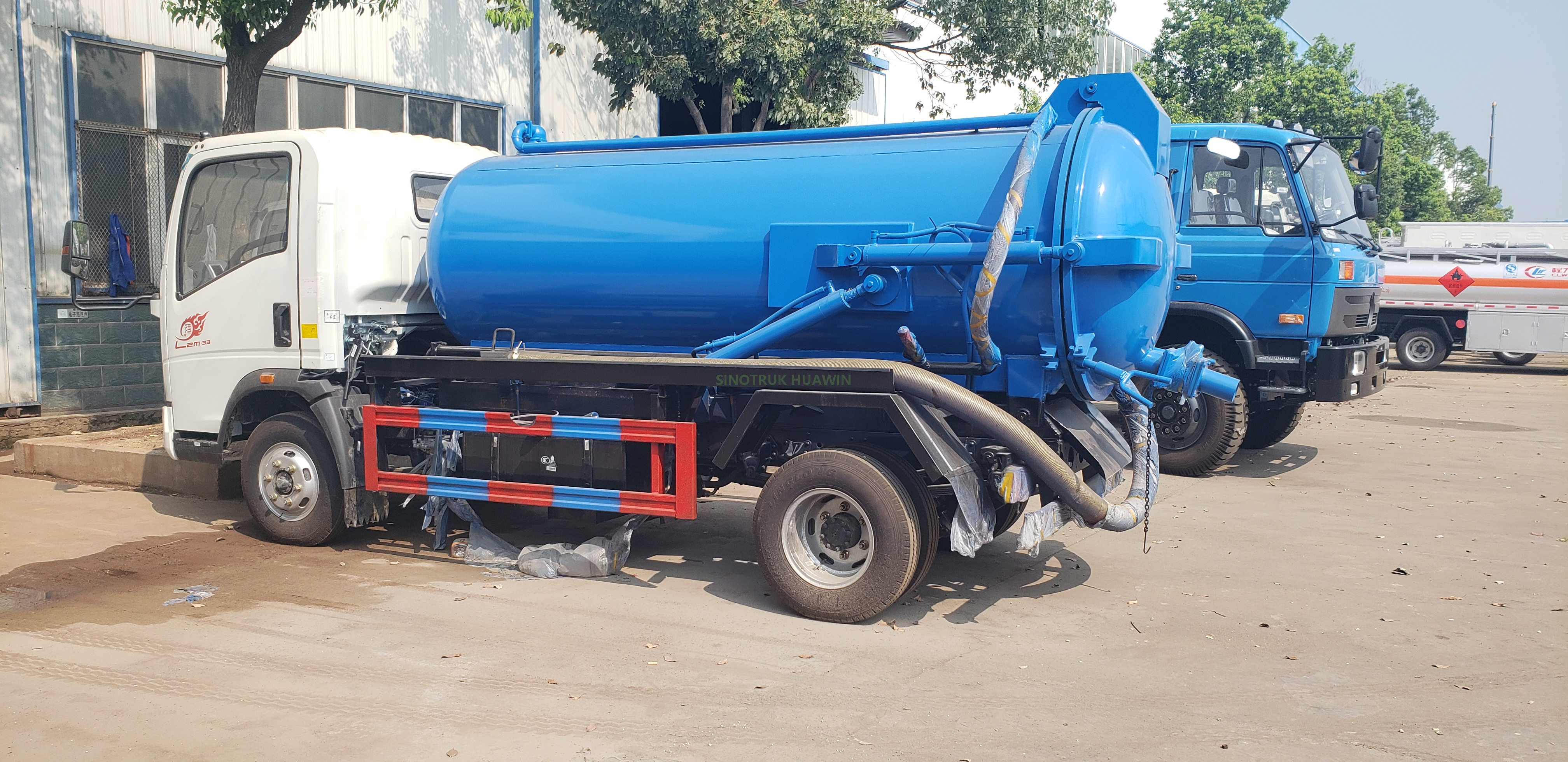

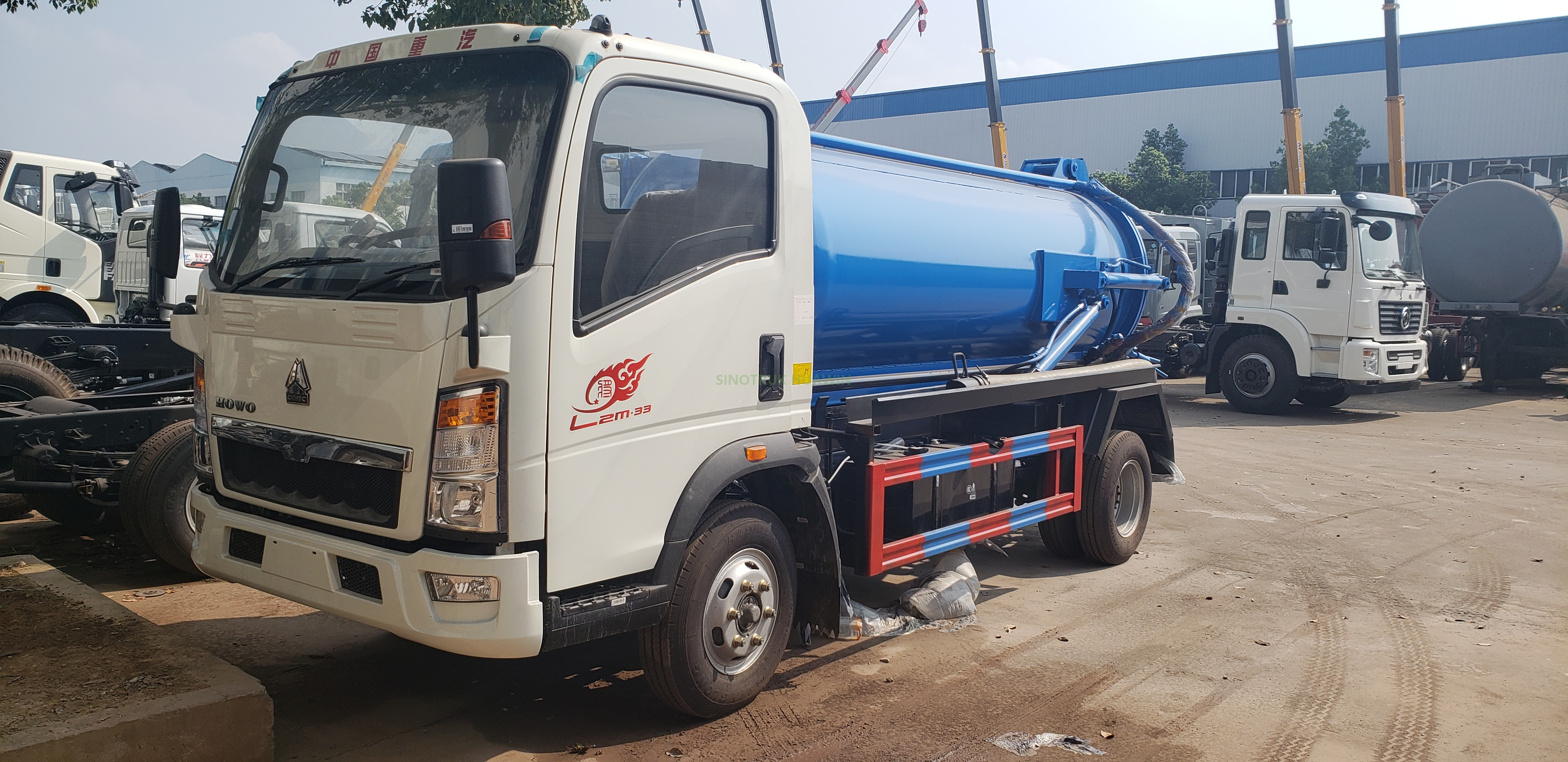

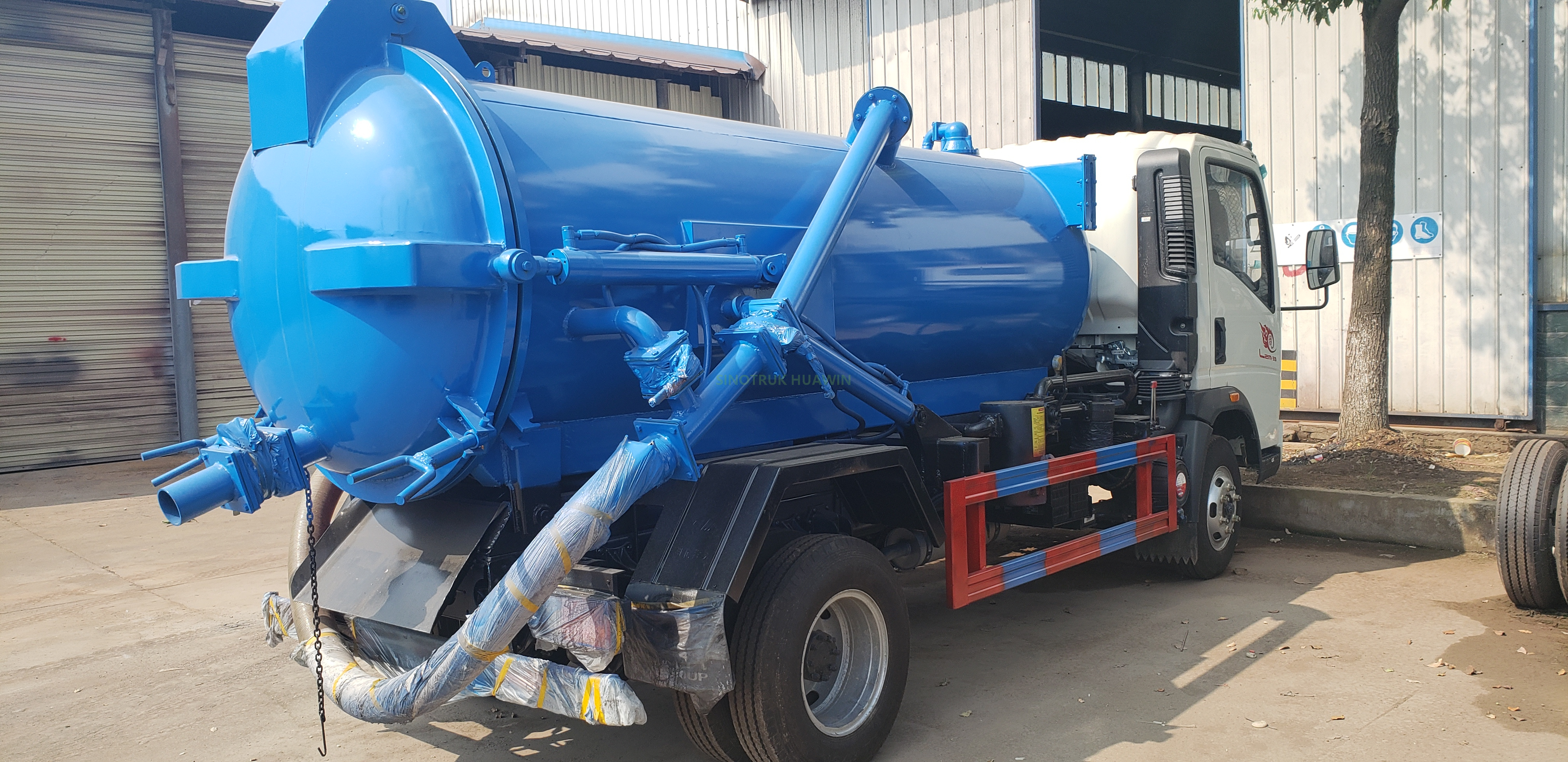

SINOTRUK HOWO 4X2 Sewage Suction Truck
Vehicle Main Dimensions | (L x W x H)mm | 7000x2450x3000 |
Wheel base (mm) | 3360 | |
Weight in KGS | Tare Weight | 5240 |
Front axles loading capacity | 1x2400 | |
Rear axles loading capacity | 1x4200 | |
Engine | Brand | CUMMINS |
Model | ISF3.8s3141 | |
Displacement | 3.76L | |
Compression Ratio | 17.2:1 | |
Torque output | 450N.m | |
Type | 4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power（HP) | 141HP@2200rpm, Euro III | |
Gearbox | WLY6T51, 6-forward & 1-reverse manual gearbox, with synchromesh type | |
Steering | Hydraulic steering with power assistance | |
Tire | 7.50R16 steel tire, in total 7 pieces with one spare tire | |
Fuel capacity | 120L | |
Others | Ø With grease gun Ø With hydraulic Jack with wheel wrench Ø With tire inflation hose Ø With 2kg fire extinguisher Ø With two head lights Ø With reversing buzzer Ø With plate number light Ø With GPS | |
VA
Vaccum Tank Total Volume（CBM） | 5 CBM, indicator mark on the tank, for maximum and minimum level |
Tanker Body Material | 6 mm steel / Q345 high tensile strength steel |
Pump | Ø Vacuum suction depth is 6m Ø A flow rate allowing the sludge tank to be filled in a maximum time is 30 minutes |
Water Hose | Ø 54 meter hose Ø Internal diameter 100mm Ø PVC Ø Light blue |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
