ZZ5607VDVB38401
Sinotruk

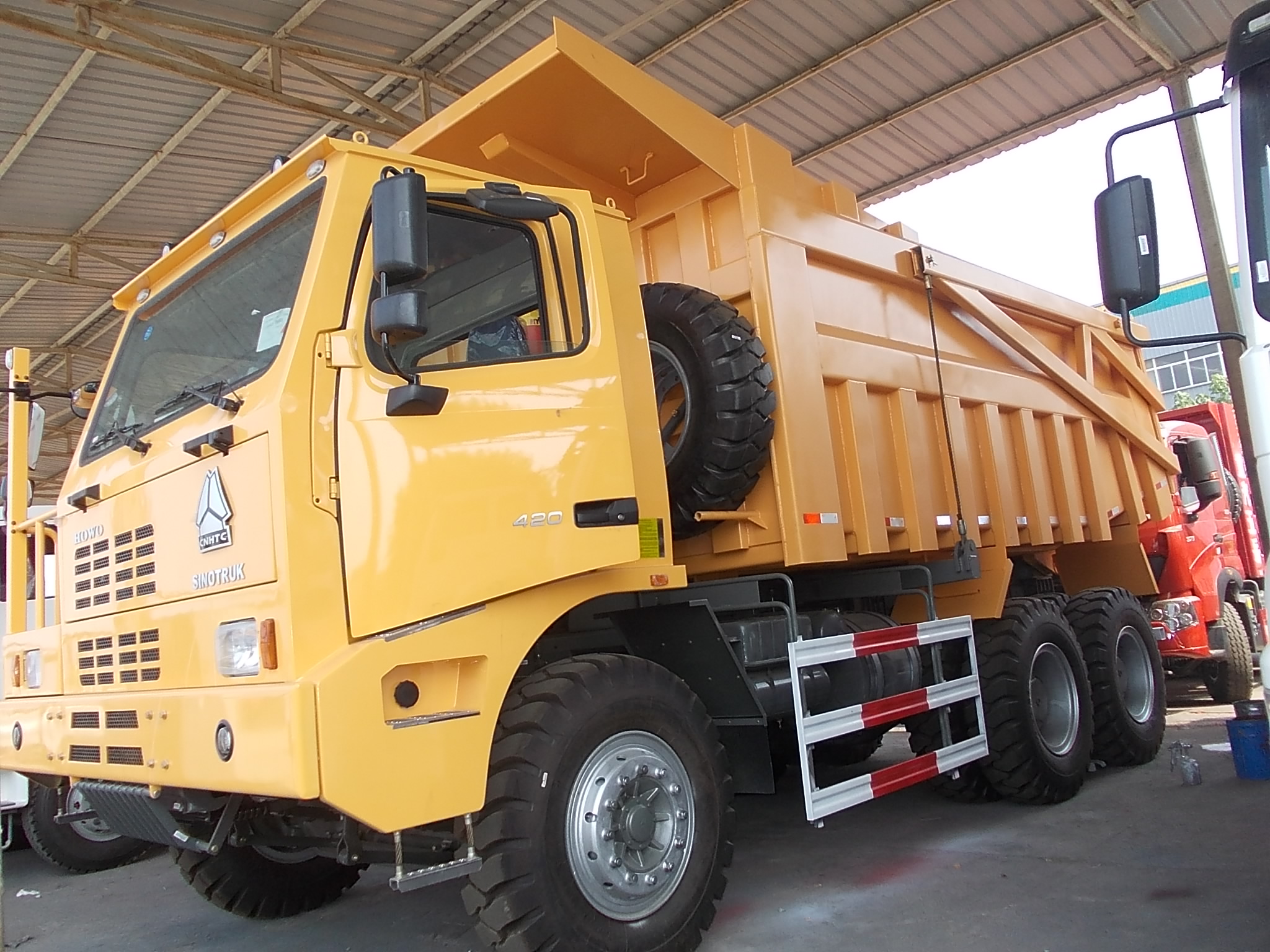

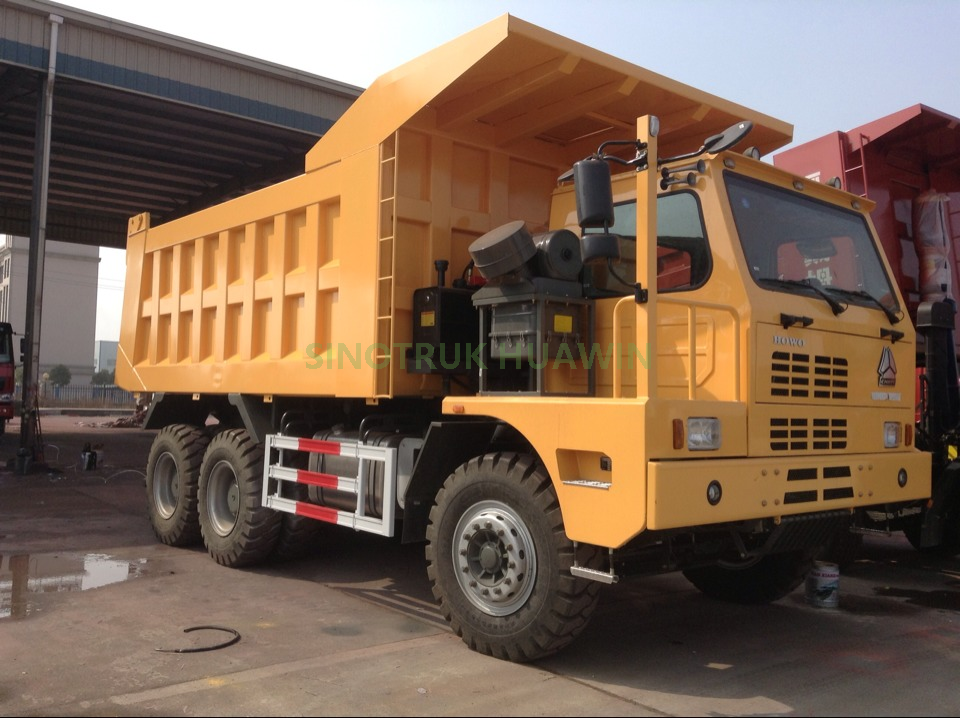

HOWO 6X4 Mining Dump Truck with 420HP
Cabin | Driving type 6x4 |
|
HW7D cabin | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 8800 x 3326 x 4350 |
Wheel base (mm) | 3800+1500 | |
Weight in KGS | Tare Weight | 20000 |
payload | 70000 | |
Front axles loading capacity | 1 x 12000 | |
Rear axles loading capacity | 2 x 26000 | |
Max. driving speed（km/h） | 50 | |
Engine | Brand | Sinotruk |
Model | D12.42T2 | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power（HP) | 420HP | |
Emission standard | Euro Ⅱ | |
Gearbox | HW21712, 12 Forwards gear & 2 reverse gear | |
Clutch | Reinforced diaphragm clutch, diameter 430mm | |
Steering Gear | ZF 8118, power steering, hydraulic steering with power assistance | |
Fuel tank (L) | 500 | |
Tire | 14.00-25 tyre 11 pieces with one spare | |
Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake | |
Bin size | 5600*3100*1800 mm, side is 14 mm, bottom is 16 mm | |
Hydraulic system | Front positioned, HYVA cylinder | |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
