SINOTRUK Refrigerator Semi Trailer
| DIMENSIONS | |
| Overall Dimensions | 15300*2280*3550 mm |
| Volume | 75 cbm |

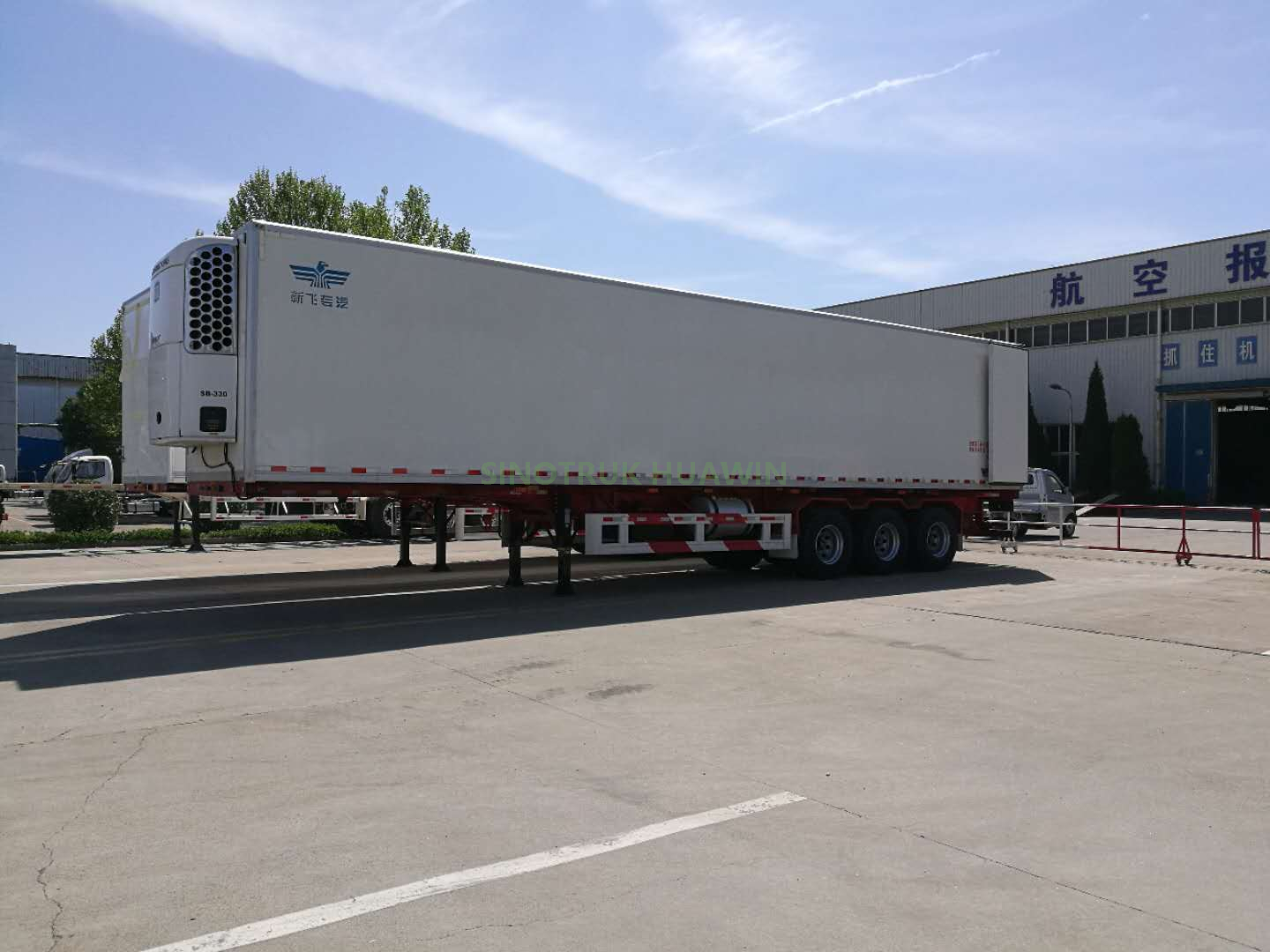

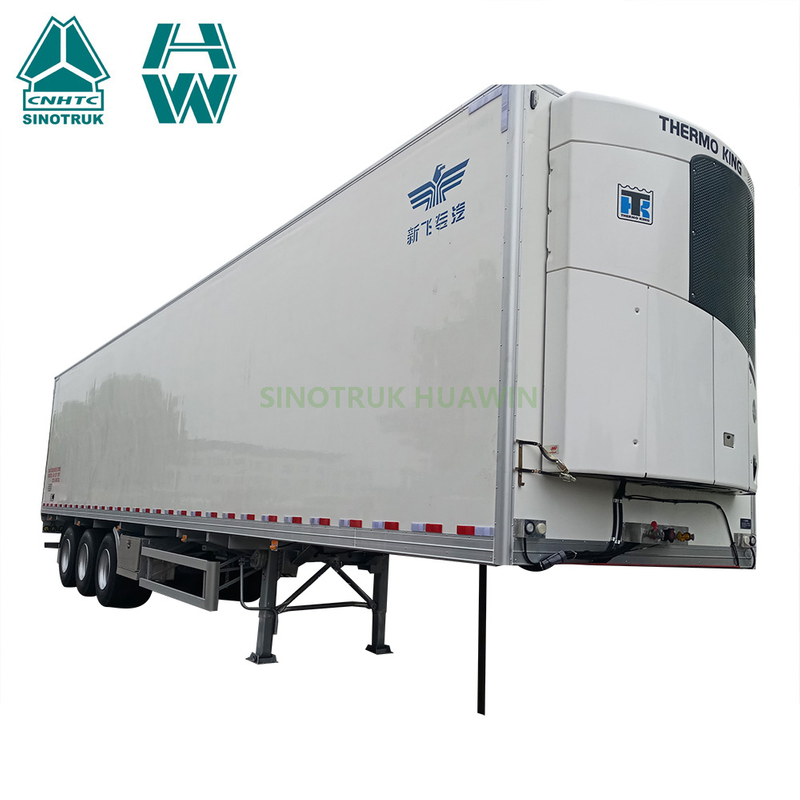

| Photo for reference. Final products can be made according to exact requirements | |
| SPECIFICATION | |
| Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,height 500mm; Bottom Flange 16mm,width 140mm. |
| Axle | 4 axles of Germany design 12ton, 13 ton, 14 ton axle optional upon choice |
| Brand Name: BPW, L1 or FUWA-optional upon choice | |
| Suspension | Germany design heavy duty mechanical suspension or air suspension optional upon choice |
| Floor | 3mm checker plate |
| Leaf Spring | Doll type Leaf spring |
| King Pin | JOST 2" Bolt-in King Pin |
| Landing Gear | JOST Two-speed, manual operating, heavy duty landing gear |
| Wheel Rim | 8.25-20 ,9.0-20, 8.25R22.5, 9.0R22.5, 11.75R22.5 steel wheel rim optional upon choice |
| Tyre | 11.00R20 , 12.00R20, 11R22.5,12R22.5 tire with one spare tire optional upon choice |
| Twist Lock | 12 nos. of ISO twist locks for 1x20ft, 2x20ft and 1x40ft container |
| Spare Tire | One set of spare tire including a carrier |
| Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Accessories | One standard tool box with basic tools for trailer |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
