SINOTRUK T5G Concrete Mixer Pump Truck is suitable for agitating and transiting concrete, for construction site, road repairing and some other infrastructure construction business. Concrete Howo mixer truck is optimization of body structure, special mold production, beautiful appearance, concrete mixing, discharge uniformity, low rate of residual. Cost-effective concrete mixer truck with competive price is your best choice.

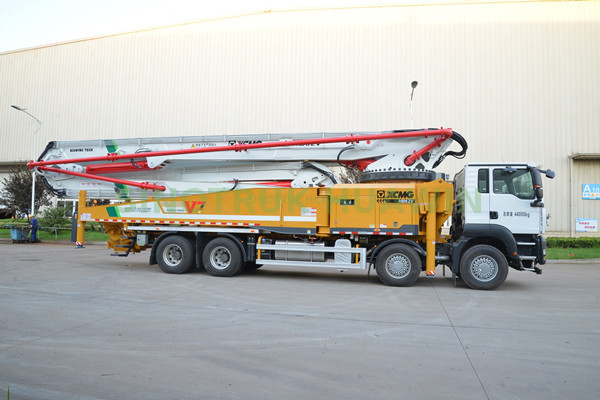

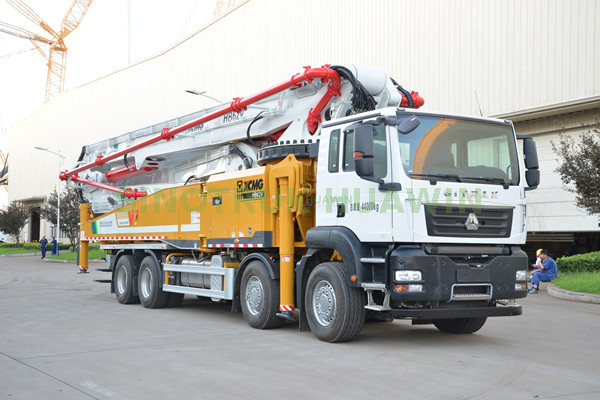

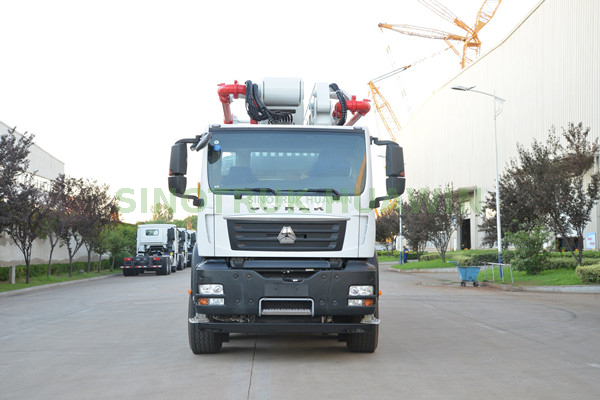

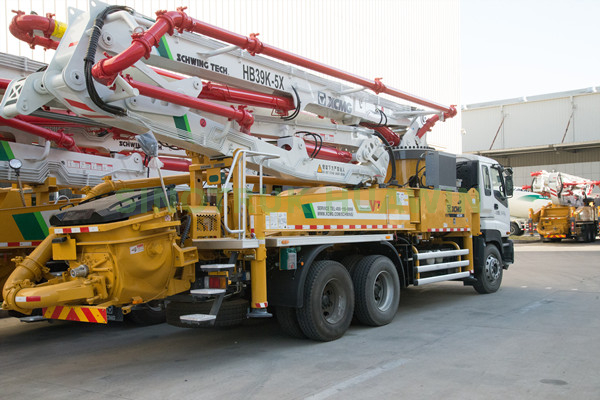

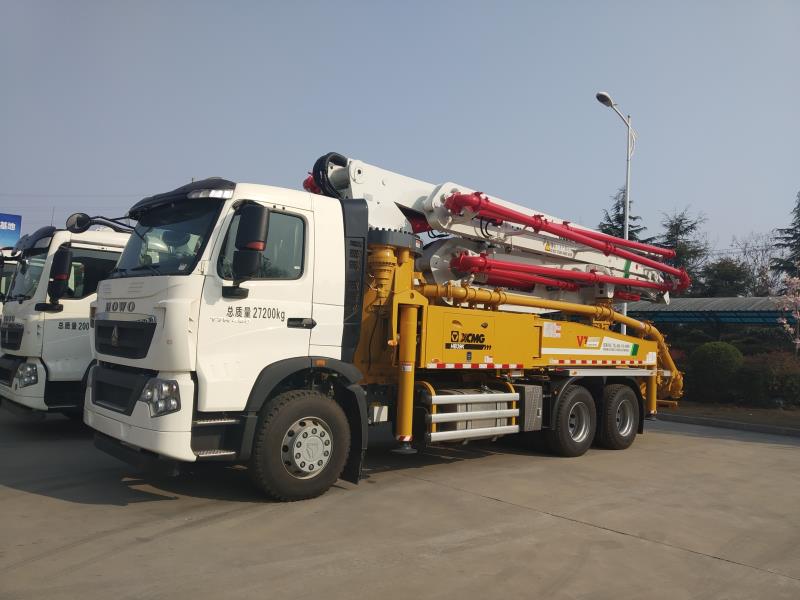

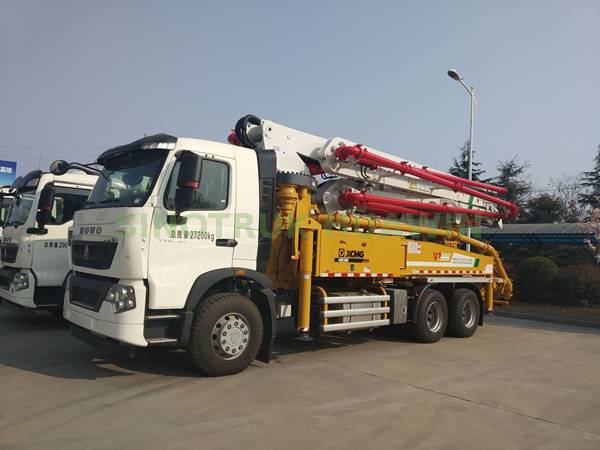

Sinotruk T5G Concrete Mixer Pump Truck
|XCMG brand 36.5m concrete pump truck|
|Chassis||Chassis Brand||Sinotruk T5G|
|Emission Standard||Euro 5|
|Steering Type||Left Hand Drive|
|Tire||12.00R20, 11 Pieces|
|Placing boom||Max. Vertical height(M)||36.5|
|Max. Horizontal Concrete Placing radius (M)||34|
|Concrete placing depth(M)||24.9|
|Rotating angle of each boom||90°/180°/180°/230°/210°|
|Control mode||Electric proportion|
|Folding type of boom||RZ type|
|Span distance of front landing leg (MM)||6100|
|Span distance of rear landing leg (MM)||7350|
|Longitudinal distance between front and rear landing leg (MM)||6700|
|Pumping System||Transfer tube||S valve/Rock Valve|
|Lubricating method||Automatic lubrication|
|Maximum concrete outlet pressure (Mpa)||8/13|
|Inner diameter/stroke of delivery cylinder||φ230x1600|
|Filling height||1540 mm|
|Dimension of allowable maximum aggregate (MM)||40|
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
