SINOTRUK T5G Mounted Concrete Mixer Pump Truck

SINOTRUK T5G Mounted Concrete Mixer Pump Truck is suitable for agitating and transiting concrete, for construction site, road repairing and some other infrastructure construction business. Concrete Howo mixer truck is optimization of body structure, special mold production, beautiful appearance, concrete mixing, discharge uniformity, low rate of residual. Cost-effective concrete mixer truck with competive price is your best choice.
  • ZZ1257N3847
  • Sinotruk HOWO

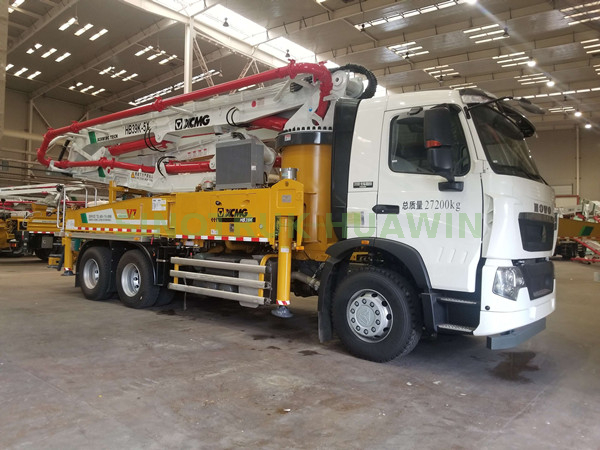

                                       Sinotruk T5G Concrete Mixer Pump Truck

XCMG   brand 36.5m concrete pump truck
Chassis Chassis   Brand Sinotruk   T5G
Engine Power 310HP
Driving Type 6*4
Emission Standard Euro   5
Steering Type Left   Hand Drive
Tire 12.00R20,   11 Pieces
Placing   boom  Max.   Vertical height(M) 36.5
Max. Horizontal Concrete Placing radius (M) 34
Concrete placing depth(M) 24.9
Rotating angle of each boom 90°/180°/180°/230°/210°
Control mode Electric   proportion
Folding type of boom RZ   type
Slewing angle 360°
Span distance of front landing leg (MM) 6100
Span distance of rear landing leg (MM) 7350
Longitudinal distance between front and rear   landing leg (MM) 6700
Pumping   System Transfer   tube  S   valve/Rock Valve
Lubricating method Automatic   lubrication
Maximum concrete outlet pressure (Mpa) 8/13
Inner diameter/stroke of delivery cylinder φ230x1600
Filling height 1540   mm
Dimension of allowable maximum aggregate (MM) 40

1 (1)


1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.

Our Advantage

1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers


1. One year quality guarantee for three key parts axles, engine, transmission or within 100000km, which comes the first.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);

5.Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.

Our certificates


Main products
1. Tractor Truck, Cargo Truck, Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, fuel tank semi trailer, etc. )

Company Introduction
SINOTRUK is one of the biggest heavy duty truck manufacturer in China, also the absolute No. 1 for exporting.
We manufacture HOWO tractor truck, dump truck, concrete mixer, tanker truck, flat bed semi trailer and other special trucks, etc....

Factory view

factory view


About the shipping, we SINOTRUK have rich experience in RORO, BULK CARGO, 40HQ, 40FR etc. Every year thousands of our trucks and trailers are sold to Myanmar, Tanzania, Zambia, Ethiopia, Nigeria, Australia, Russia and etc, they have gained great popularity and excellent feedback from our customers. We also export thousands of spare parts to different countries.


Welcome to visit our factory.





SINOTRUK Hubei Huawin Special Vehicle Co., LTD is branch factory and a key member of SINOTRUK group, which is one of the world's leading manufacturers of trucks and the absolute NO. 1 for exporting from China. SINOTRUK employs more than 150,000 people, has production facilities in 8 countries and sales of products in more than 90 markets.
