ZZ3257N3667D
SINOTRUK HOWO

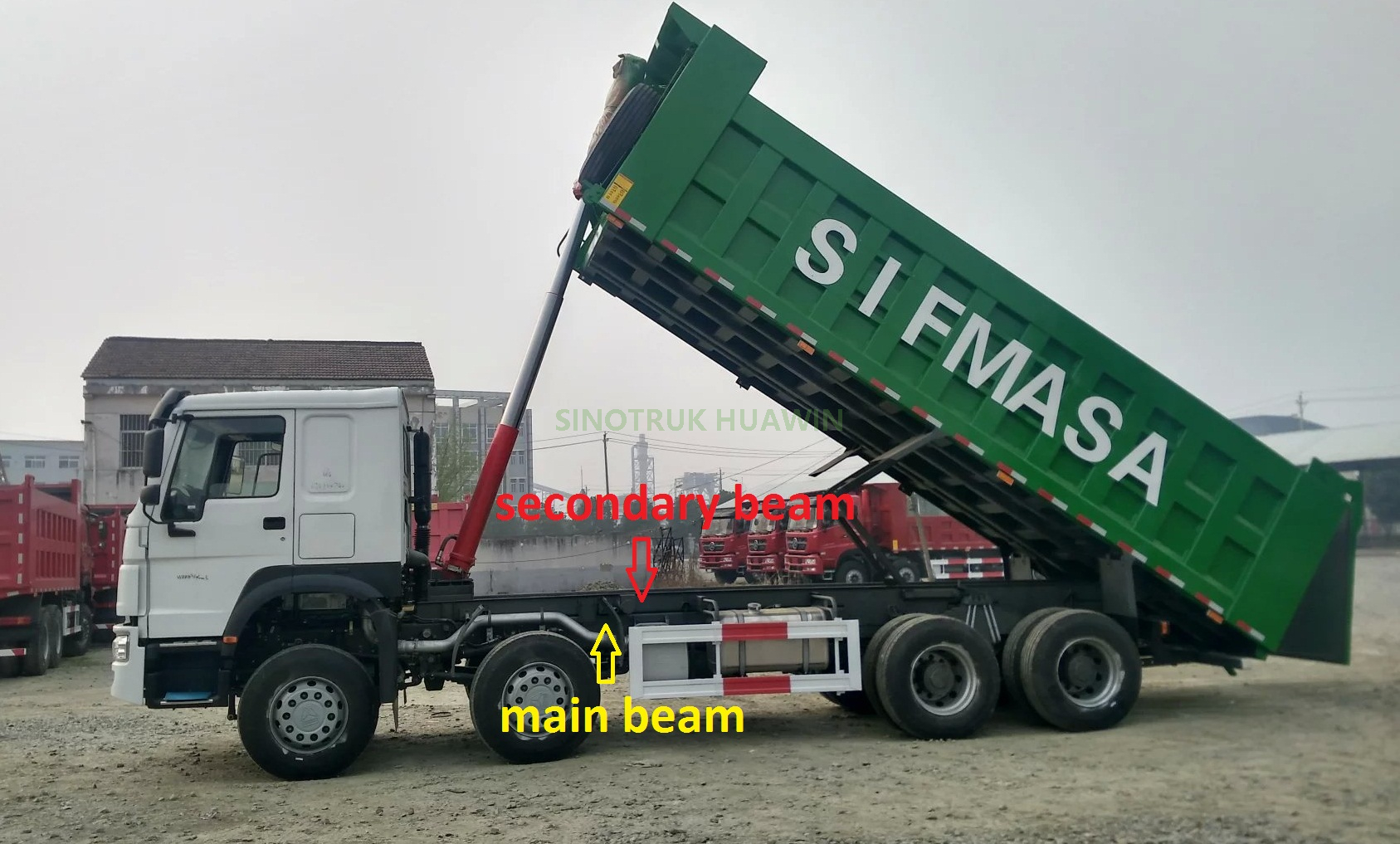

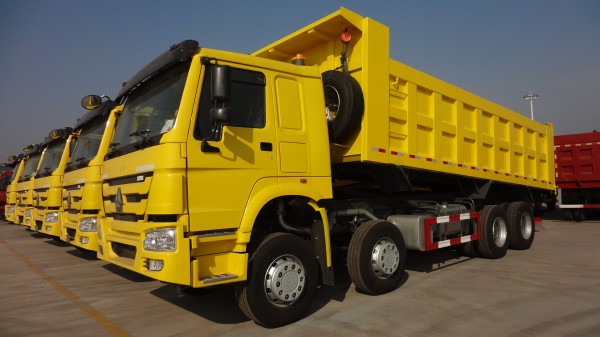

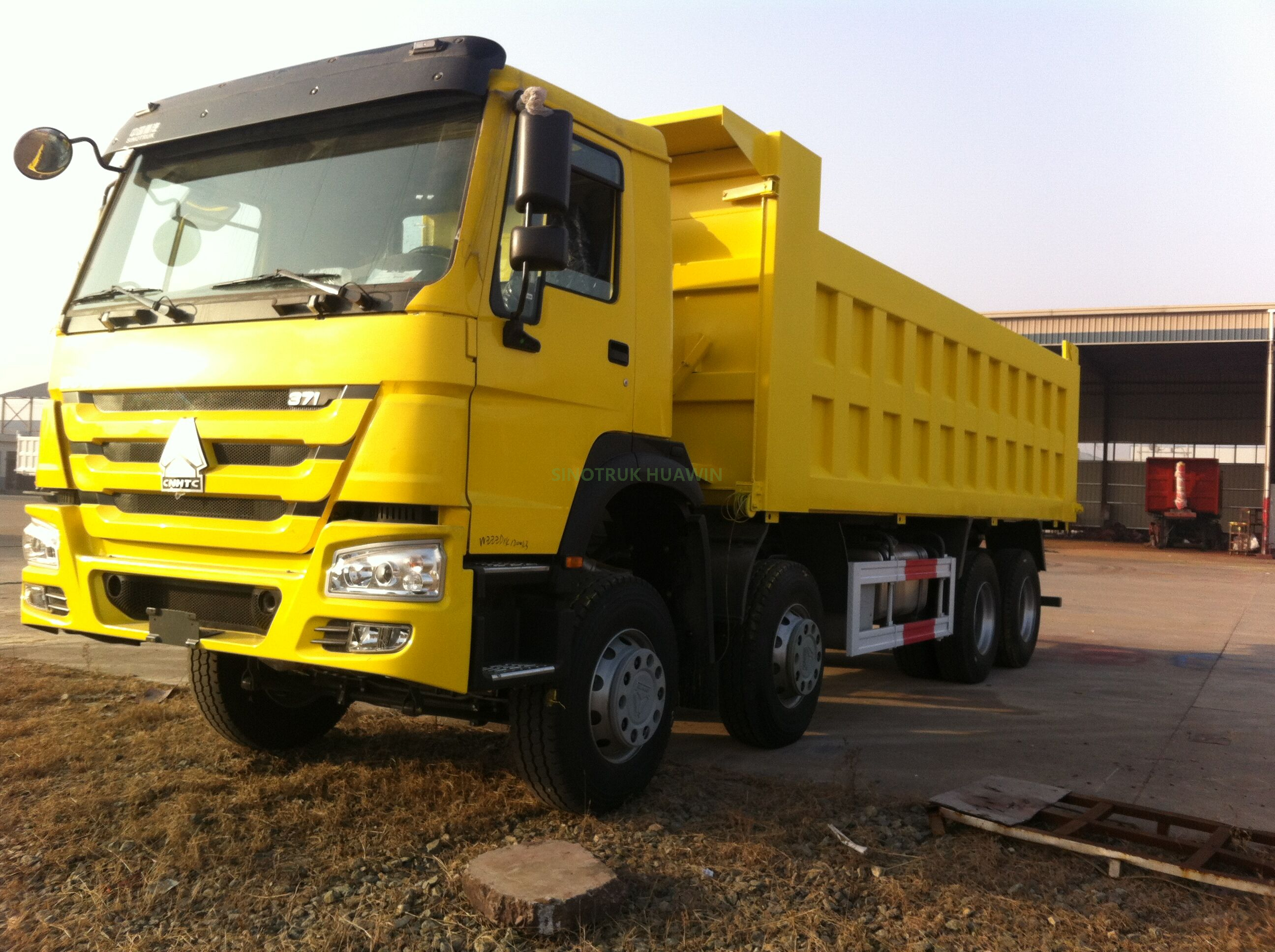

Sinotruck HOWO 8X4 Front tipping Dump Truck for sale
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 10310×2500×3400 |
Wheel base (mm) | 1800+3500+1350 | |
Wheel track (front/rear) (mm) | 2022/1830 | |
Approach/Departure angle(°) | 16/23 | |
Weight in KGS | Tare Weight | 15200 |
payload | 45000 | |
Front axles loading capacity | 2x9000 | |
Rear axles loading capacity | 2x16000 | |
Max. driving speed（km/h） | 75 | |
Engine | Brand | Sinotruk |
Model | WD615.47 | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power（HP) | 371 | |
Emission standard | Euro Ⅱ | |
Gearbox | HW19710, 10 Forwards gear & 2 reverse gear | |
Clutch | Reinforced diaphragm clutch, diameter 430mm | |
Steering Gear | ZF 8118,power steering, hydraulic steering with power assistance | |
Fuel tank (L) | 400 | |
Tire | 12R22.5 tubeless tyre 13 pcs including one spare tire | |
Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake | |
Bin size | 7300*2300*1500mm, side is 6 mm, front and bottom 8 mm | |
Hydraulic system | HYVA cylinder, front lift | |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
Sinotruck HOWO 8X4 Front tipping Dump Truck for sale
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 10310×2500×3400 |
Wheel base (mm) | 1800+3500+1350 | |
Wheel track (front/rear) (mm) | 2022/1830 | |
Approach/Departure angle(°) | 16/23 | |
Weight in KGS | Tare Weight | 15200 |
payload | 45000 | |
Front axles loading capacity | 2x9000 | |
Rear axles loading capacity | 2x16000 | |
Max. driving speed（km/h） | 75 | |
Engine | Brand | Sinotruk |
Model | WD615.47 | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power（HP) | 371 | |
Emission standard | Euro Ⅱ | |
Gearbox | HW19710, 10 Forwards gear & 2 reverse gear | |
Clutch | Reinforced diaphragm clutch, diameter 430mm | |
Steering Gear | ZF 8118,power steering, hydraulic steering with power assistance | |
Fuel tank (L) | 400 | |
Tire | 12R22.5 tubeless tyre 13 pcs including one spare tire | |
Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake | |
Bin size | 7300*2300*1500mm, side is 6 mm, front and bottom 8 mm | |
Hydraulic system | HYVA cylinder, front lift | |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
