| Quantity: | |
|---|---|
SGZ
Sinotruk
Sinotruk 4 Axles Lowbed Semi Trailer
| DIMENSIONS | |
| Tare Weight | 10500kg |
| Overall Length | 13000mm |
| Deck Length | 8500mm |
| Deck Height | 1150mm |
| Overall Width | 3000mm |
| Payload | 45000kg |

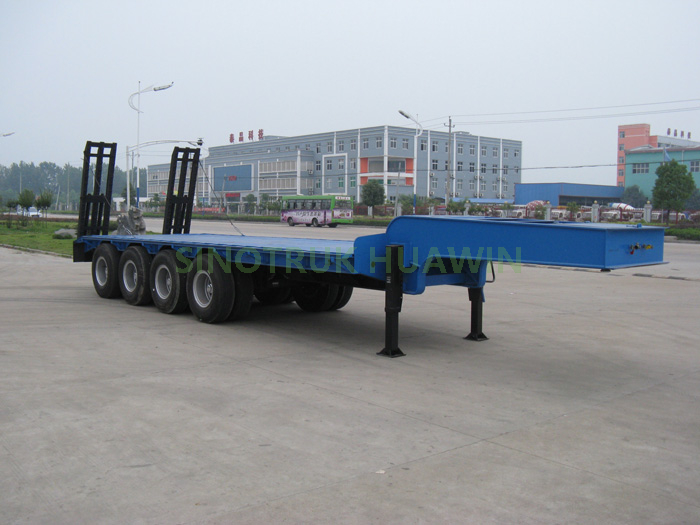

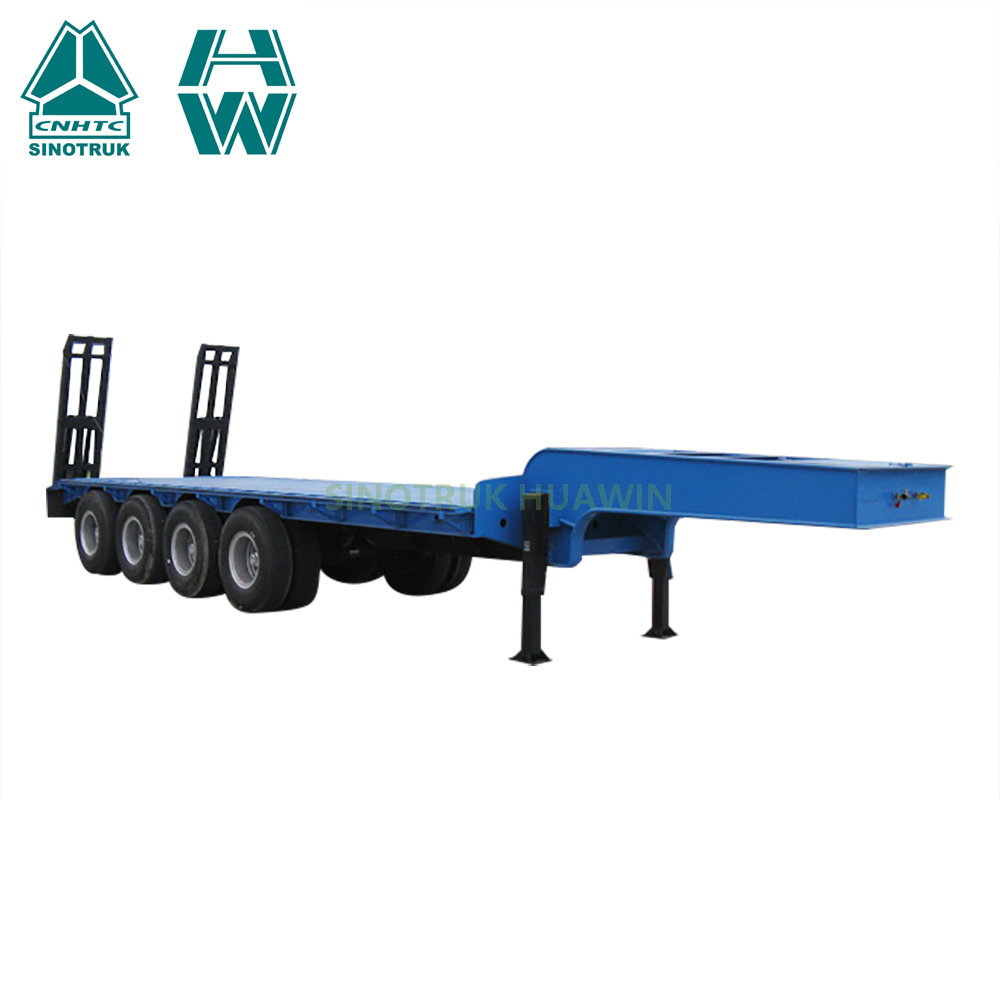

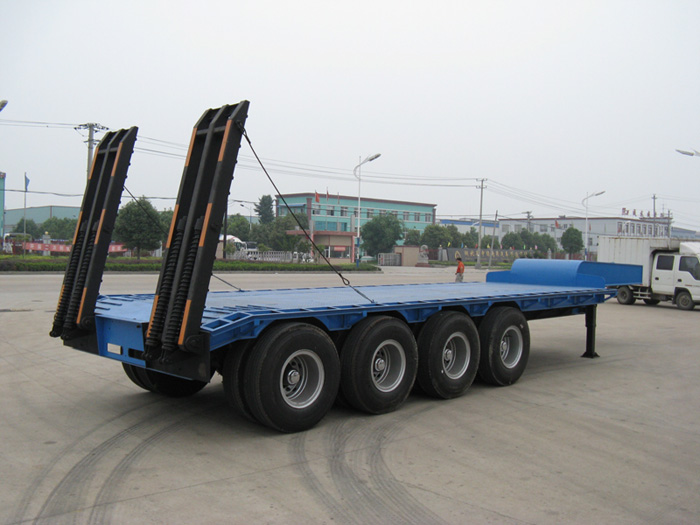

| Photo for reference. | |
| SPECIFICATION | |
| Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm; Bottom Flange 16mm,width 140mm. |
| Axle | 4 axles. 12Ton, 13Ton, 14Ton optional upon choice |
| Suspension | Mechanical suspension or air suspension optional upon choice |
| Floor | 3mm checker plate |
| Leaf Spring | 8-piece leaf spring |
| King Pin | JOST brand 3.5" Bolt-in King Pin |
| Ramp | Mechanical spring ramp or hydraulic lifting ramp-Optional upon requirement |
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear |
| Wheel Rim | 8.5-20, 8.25-22.5, 9.0-22.5-Optional upon tire requirement |
| Tyre | 11.00-20, 12.00-20, 11.00R20, 12.00R20, 11R22.5, 12R22.5-Optional |
| Spare Tire | One set of spare tire including a carrier |
| Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Accessories | One standard tool box |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
