ZZ3257N3647
SINOTRUK HOWO

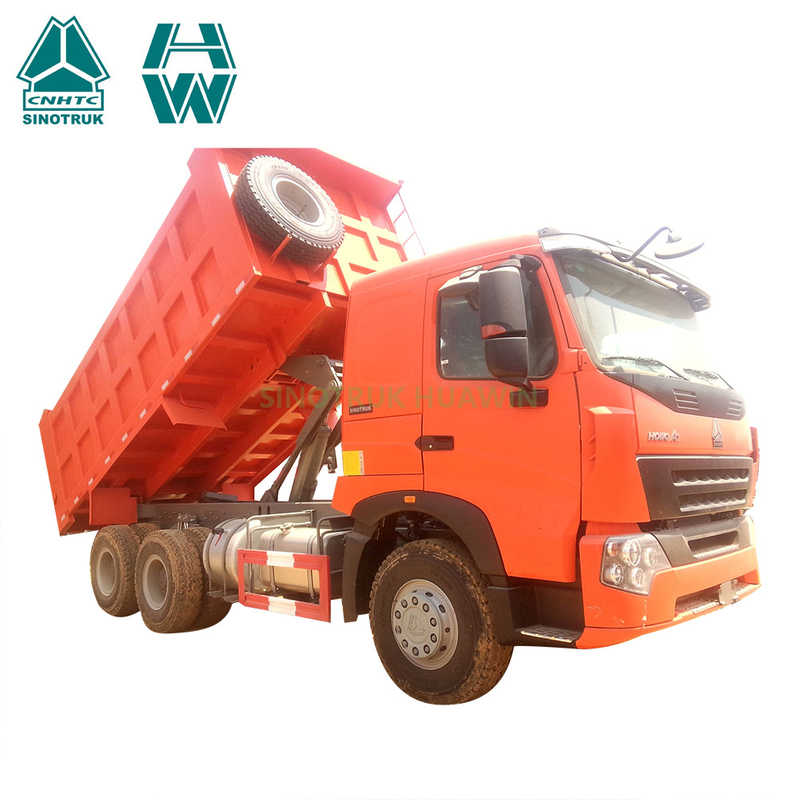

Sinotruk A7 6X4 Middle Tipping Dump Truck for sale
| Cabin | A7-W cabin with A/C and one sleeper, 70°hydraulically tillable to the front as attached photo for ref. | |
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 8400×2500×3450 |
| Wheel base (mm) | 3825 | |
| Weight in KGS | Tare Weight | 14500 |
| Payload | 25000 | |
| Front axles loading capacity | 1x9000 | |
| Rear axles loading capacity | 2x16000 | |
| Max. driving speed(km/h) | 85 | |
| Engine | Brand | SINOTRUK |
| Model | D10.38-40 | |
| Type | Euro-2 emission, intercooler, turbocharge | |
| Horse Power | 380 HP | |
| Max Torque | 1500 N.m | |
| Gearbox | HW19710, 10-forward & 2 reverse gear | |
| Brake | Service brake:Dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheel | |
| Steering | ZF 8118,power steering, hydraulic steering with power assistance | |
| Clutch | Reinforced diaphragm clutch, diameter 430mm | |
| Tire | 12R22.5 tubeless tyre, 11 pieces including one spare tire | |
| Axle | Front axle: HF9 Rear axle:HC16 ,ratio 5.73 | |
| Cargo Body | 5600*2300*1560 mm made of high tensile steel, side is 6 mm, front and bottom 8 mm, effective volume 20 cbm | |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
