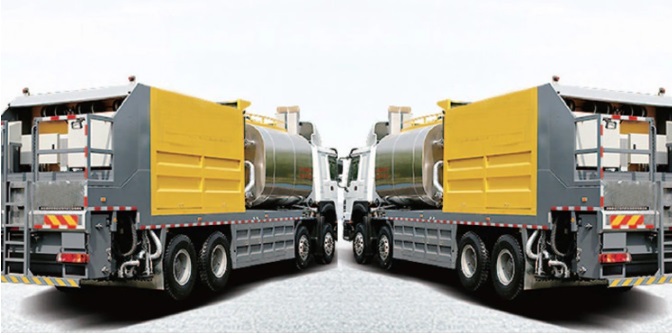

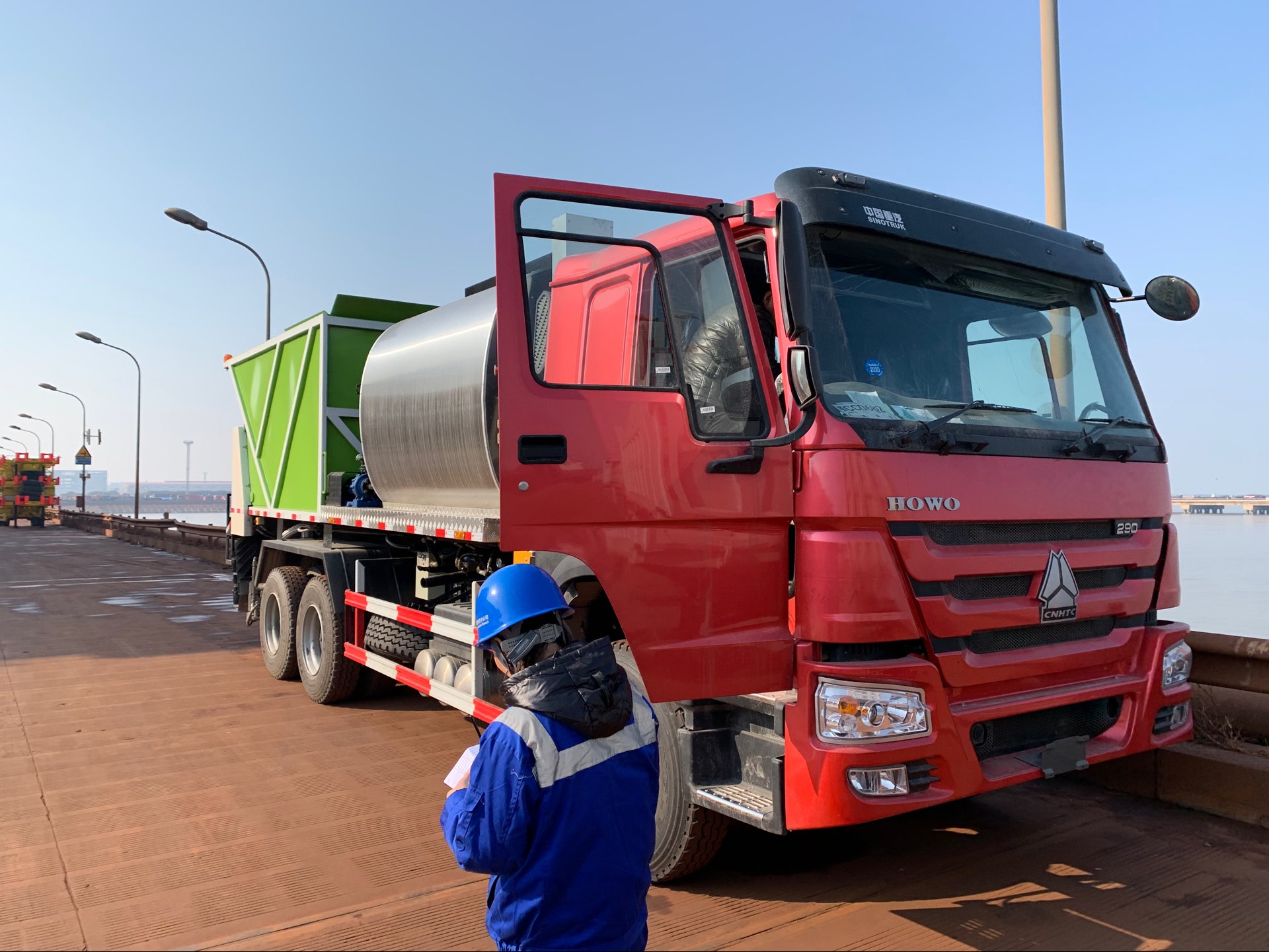

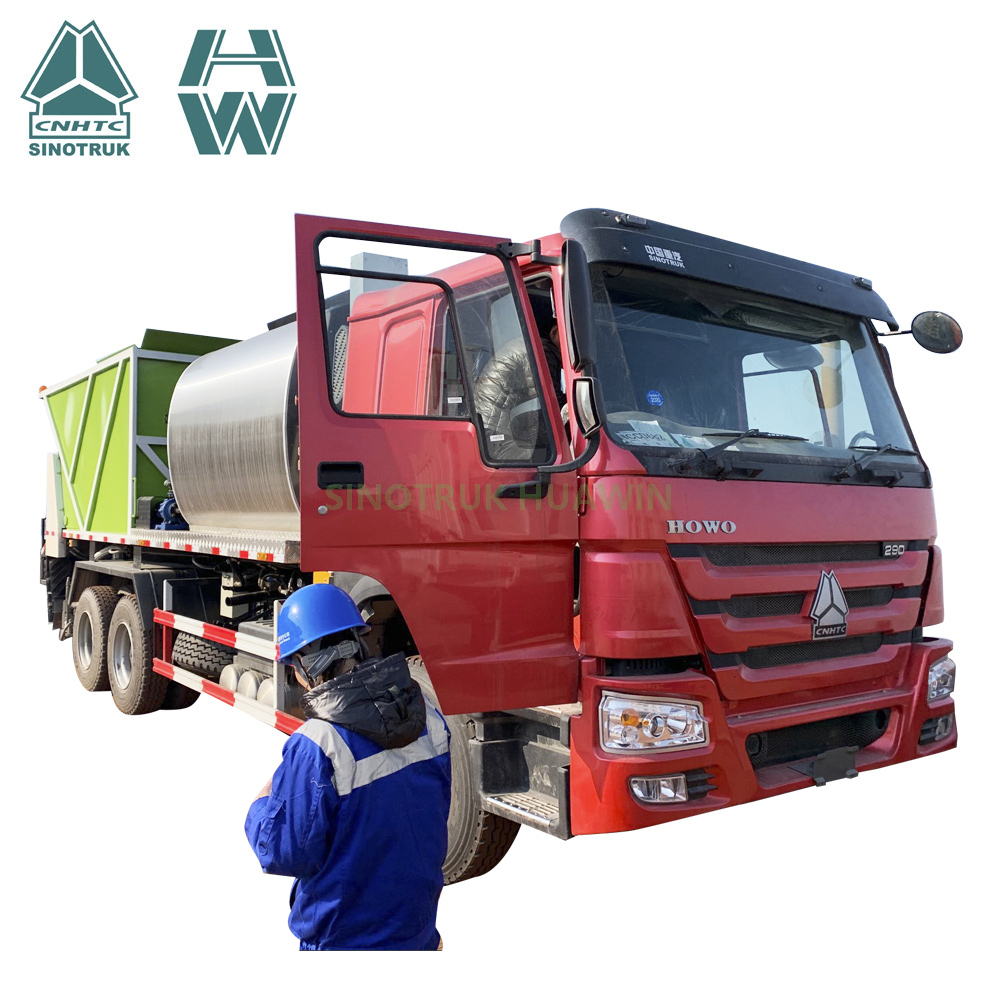

Sinotruk HOWO 6X4 Asphalt Distributor
| Cabin ||Left hand drive/right hand drive |
|HW76 Cabin, with one bed and two seats, with AC |
|Vehicle Main Dimensions ||Overall dimensions (L x W x H)mm ||10210×2495×3450 |
|Wheel base (mm) ||4600+1350 |
|Weight in KGS ||Tare Weight ||16000 |
|Payload ||16000 |
|Front axles loading capacity ||1x7000 |
|Rear axles loading capacity ||2x16000 |
|Max. driving speed(km/h) ||90 |
|Engine ||Brand ||SINOTRUK |
|Model ||WD615.69 |
|Type ||4-stroke direct injection,6-cylinder in-line , turbo-charging and inter-cooling |
|Horse Power ||336 HP |
|Emission Standard ||EURO II |
|Gearbox ||HW19710, 10-forward & 2 reverse gear |
|Steering ||Power steering |
|Brake ||Dual air compressed brake |
|Tire ||12R22.5 radial tyre with one spare |
|Sprinkler Device ||Bitumen Tank size : 6cbm |
Rock tank size : 10cbm
Bitumen pump: QGB 950 , 950L/Min
Hydraulic system : GPC4-50-25
Hydraulic motor: 05-130-BD31
Bitumen nozzle : 30
Spraying width: 3.75m
Spraying capacity: 0.25-4 kg/m2
Generator : Honda 5.5KW
|Control System ||German SIEMENZ, computer controlled |
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers
1. One year quality guarantee for three key parts axles, engine, transmission or within 100000km, which comes the first.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);
5.Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.
1. Tractor Truck, Cargo Truck, Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, fuel tank semi trailer, etc. )
SINOTRUK is one of the biggest heavy duty truck manufacturer in China, also the absolute No. 1 for exporting.
We manufacture HOWO tractor truck, dump truck, concrete mixer, tanker truck, flat bed semi trailer and other special trucks, etc....
About the shipping, we SINOTRUK have rich experience in RORO, BULK CARGO, 40HQ, 40FR etc. Every year thousands of our trucks and trailers are sold to Myanmar, Tanzania, Zambia, Ethiopia, Nigeria, Australia, Russia and etc, they have gained great popularity and excellent feedback from our customers. We also export thousands of spare parts to different countries.
