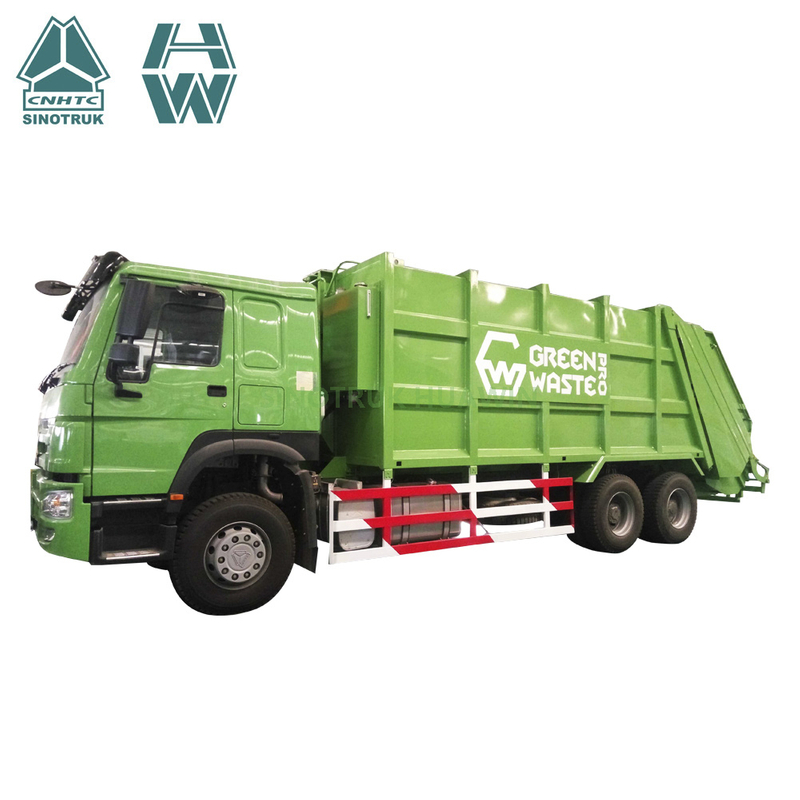

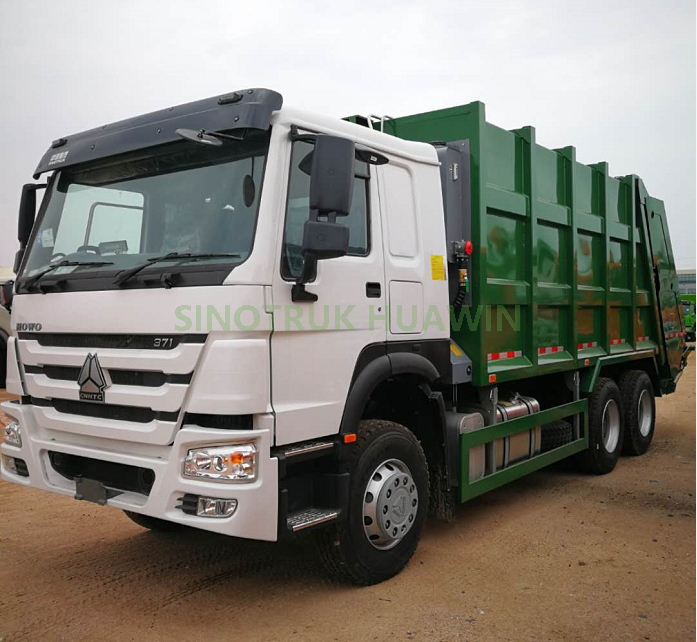

Sinotruk howo high performance 20 CBM garbage compactor collection truck is complete, easy to operate, garbage loading, the hydraulic drive and electronic program controller control, accurate, reliable performance, performance and reliable. Full volume utilization rate can reach more than 97%.
SINOTRUK HOWO 6X4 Garbage Compactor
Driving type 6x4 LHD
|HW76 Cab, with A/C and two seats, one bed, 70°hydraulically tillable to the front|
|Vehicle Main Dimensions||Overall dimensions (L x W x H)mm||9800×2500×3290|
|Wheel base (mm)||3825+1350|
|Wheel track (front/rear) (mm)||2022/1830|
Weight in KGS
|Front axles loading capacity||1x7000|
|Rear axles loading capacity||2x16000|
|Max. driving speed（km/h）||90|
|4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling|
|Horse Power(HP)||336 HP|
|Emission standard||Euro Ⅱ|
|Gearbox||HW19710, 10-speed forward and 2-reverse|
|Clutch||Reinforced diaphragm clutch, diameter 430mm|
|Steering||German ZF8098, power steering, hydraulic steering with power assistance|
|Oil tank||400 L|
|Tire||12R22.5 tubeless tire, 11pcs including one spare tire|
|Boday volume||20 CBM|
|Filler volume||2 CBM|
|Cycle Time of Filling||≤25 S|
|Lifting Time of Filler||10 S|
1. Tractor Truck, Cargo Truck, Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, fuel tank semi trailer, etc. )
SINOTRUK is one of the biggest heavy duty truck manufacturer in China, also the absolute No. 1 for exporting.
We manufacture HOWO tractor truck, dump truck, concrete mixer, tanker truck, flat bed semi trailer and other special trucks, etc....
About the shipping, we SINOTRUK have rich experience in RORO, BULK CARGO, 40HQ, 40FR etc. Every year thousands of our trucks and trailers are sold to Myanmar, Tanzania, Zambia, Ethiopia, Nigeria, Australia, Russia and etc, they have gained great popularity and excellent feedback from our customers. We also export thousands of spare parts to different countries.
Welcome to visit our factory.
