SGZ
Sinotruk
V Type 3 Axles Bulk Cement Tanker Semi Trailer-35CBM
Main Dimensions | |||||
Overall Length | 12500mm |
| |||
Overall Height | 3800MM | ||||
Tare Weight | 13000KGS | ||||
Total Volume | 35CBM | ||||
Pay Load | 45Tons | ||||

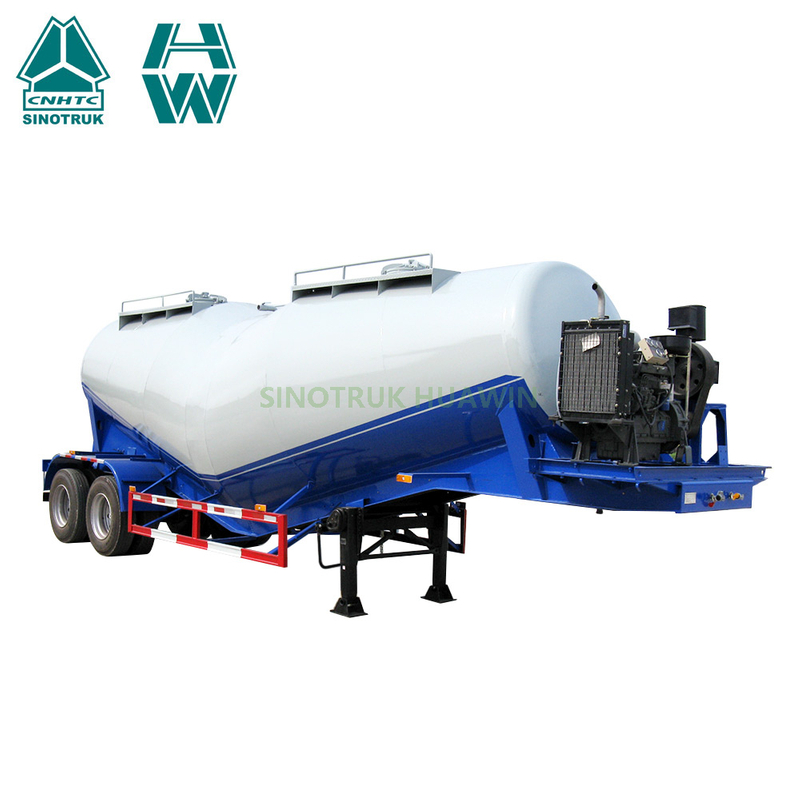

Photo for reference, final products can be made according to exact requirements | |||||
Tanker Body | |||||
Inner Fluidized Bed | Air bag | Rated work Pressure | 0.2MPa | ||
Tanker Body | Q235A/ 6mm steel sheet | Compartment | Single | ||
End plate | Q235A/6mm, ball shape | Shape | V type | ||
Chassis | |||||
Axles | 3 axles, BPW/ FUWA/HJ/L1 Brand 12 ton | ||||
Suspension | Mechanical suspension with 13-pcs leaf spring | ||||
Braking System | WABCO Emergency Relay Valve; T30/30+T30 air chamber | ||||
Rim & Tire | 12R22.5 tubeless tire with one spare tire with 9.0-22.5 wheel rim, 13 pieces | ||||
Key Accessories | |||||
Air compressor | 45KW, 0.2Mpa, 1000r/Min | ||||
Engine | Diesel engine | ||||
Manhole Cover | 500mm manhole cover, 3 sets | ||||
Air-charging system | 2” main hole, 2”check valve, 1.5” safe valve, 0.4Mpa gauge | ||||
Discharge Pipe | 4” seamless steel tube | ||||
Quadratic blow | 1” diameter check valve | ||||
Discharge valve | 4”disc valve | ||||
Outlet discharging pipe | 4” rubber hose | ||||
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
