Vehicle Side Guards

Views: 0     Author: Site Editor     Publish Time: 2022-02-10      Origin: Site

Both sides of the vehicle must be equipped with side guards that meet the following requirements, except that the structure of the vehicle itself can prevent pedestrians, motorcycles and cyclists from being involved.

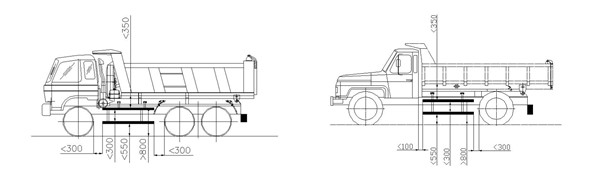

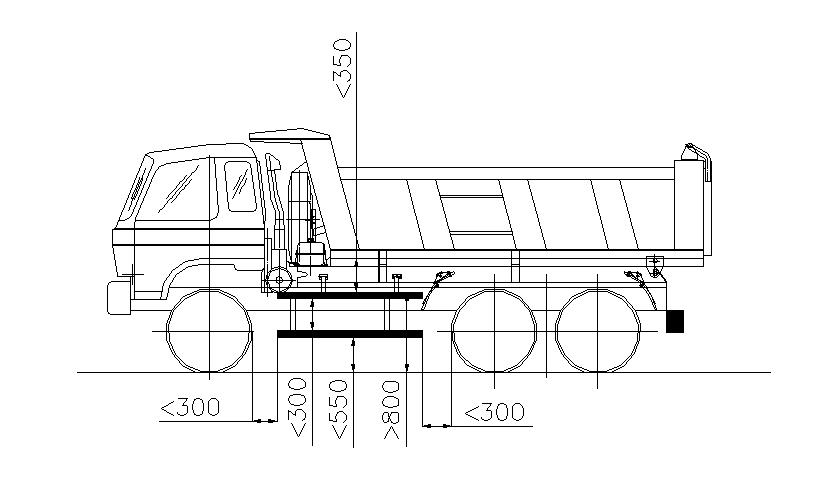

  • In the no-load state, the height of any point on the lower edge of the side protection device from the ground shall not be greater than 550mm, and the height of the upper edge shall not be less than 800mm, the distance between the upper edge and the bottom edge of the box is not more than 350mm.

  • For flat-headed vehicles, the horizontal distance between the front edge of the side guard and the rear end of the nearest wheel and tire is not more than 300m.b. For long-headed vehicles, the distance between the front edge of the side guard and the rear wall of the cab is not more than 200mma

The closest distance between the rear edge of the face guard and the nearest wheel is not more than 300mm. The outer edge of the face guard cannot exceed the maximum width of the vehicle

The outer plane and both ends of the face guard shall not have acute angles, and rounded corners with a radius of not less than 2.5mm shall be processed at the sharp corners.
