SINOTRUK
SINOTRUK refrigerator truck, cooling van truck, suitable for fruits, vegitable, fish, meet transport.
Carrier refrigerator or Thermo King refrigerator are available.
Inner temperature is adjustable from -18℃ to above.
The box size could be customized, material by polyurethane, floor thickness 100mm, wall thickness 80mm.
Optional items: aluminum floor, side rail, top hooks, ect.
Cabin | Driving type 6x4 LHD/ RHD |
|
HOWO 76 cab, with air condition and one beds. 70°hydraulically tillable to the front as attached photo for ref. | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H) mm | 11600×2550×3850 |
Wheel base (mm) | 5800+1400 | |
Wheel track (front/rear) (mm) | 2022/1830 | |
Weight in KGS | Tare Weight | 11800 |
payload | 30000 | |
Front axles loading capacity | 1x7000 | |
Rear axles loading capacity | 2x16000 | |
Max. driving speed（km/h） | 101 | |
Engine | Brand | WEICHAI |
Model | WP12.400E201 | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power（HP) | 400HP | |
Emission standard | Euro Ⅱ | |
Gearbox | HW19710,10 Forwards gear & 2 reverse gear | |
Steering | ZF8098 power steering, hydraulic steering with power assistance | |
Clutch | Reinforced diaphragm clutch, diameter 430 mm | |
Fuel tank | 400 L | |
Tire | 12R22.5 tubeless tyre, 11 pieces including one spare | |
Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake | |

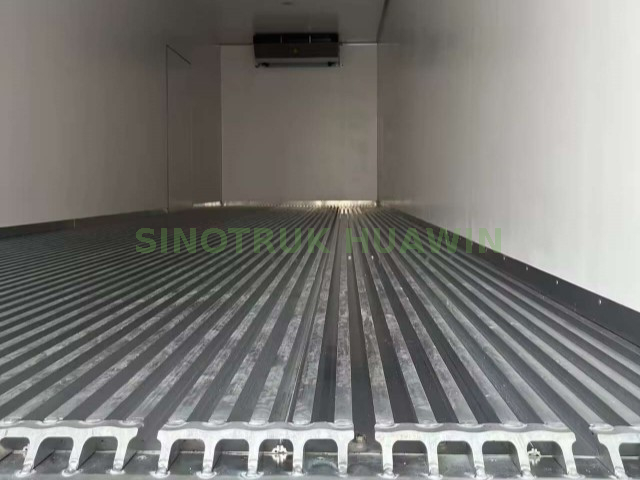

Cargo box | Inner size 8700x2300x2300(mm), one rear door. Bottom floor 105mm, side wall 95mm.High density polyurethane insulating layer. | |
Cooling system | America brand Termo King T800 independent cooling system with backup electric power system. Working temperature: - 20℃ Independent generator: TK370, 11.2KW. Compressor: model X214, High tensil aluminum alloy material, displacement: 228cm³ Emergency power supply: 380V/3Ph/50Hz, 4.5kw Cryogen: 3.9kg. | |
