Five SINOTRUK Palm Oil Tank Semi-trailer 3-Axle delivered to Gabon

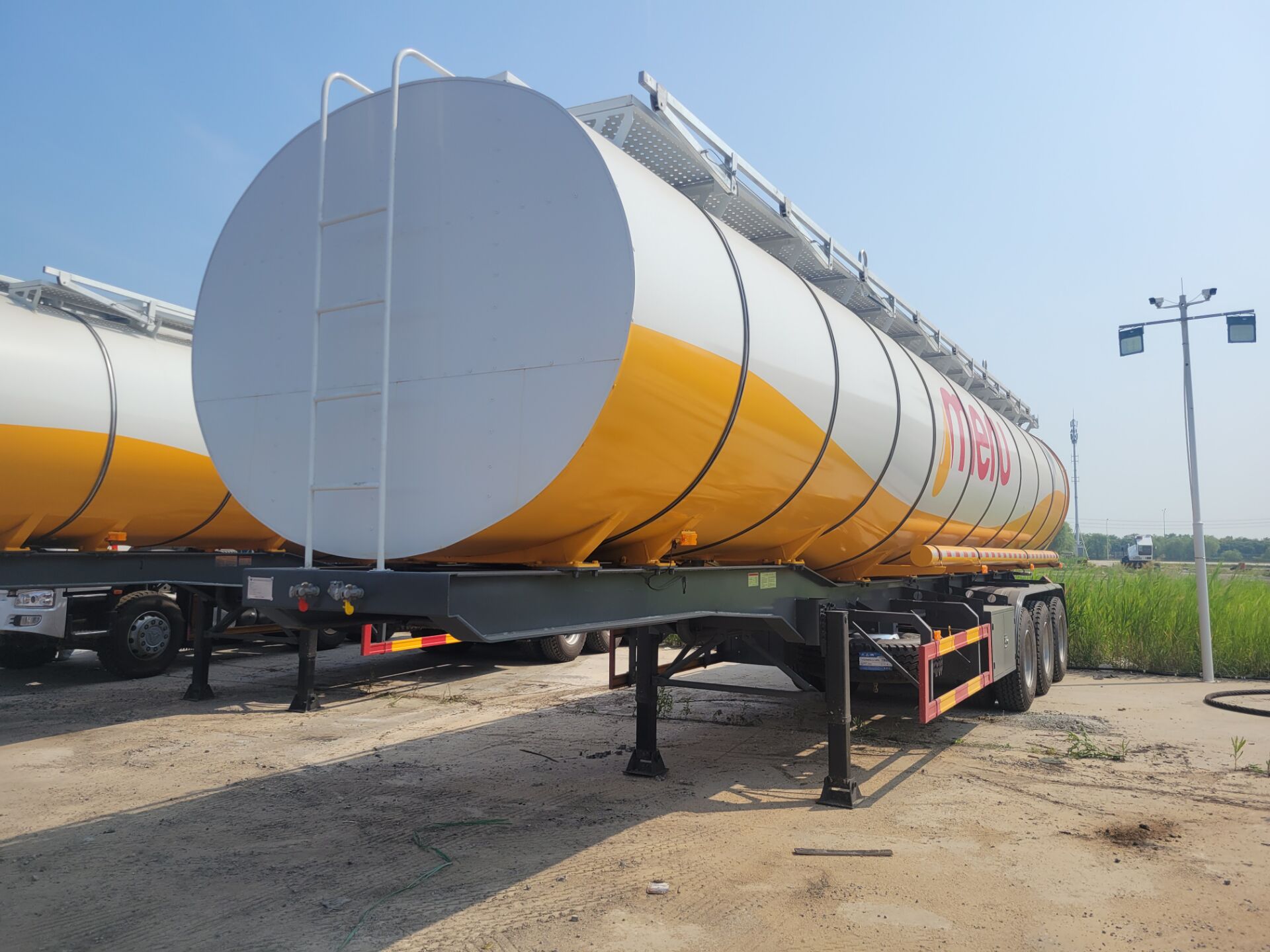

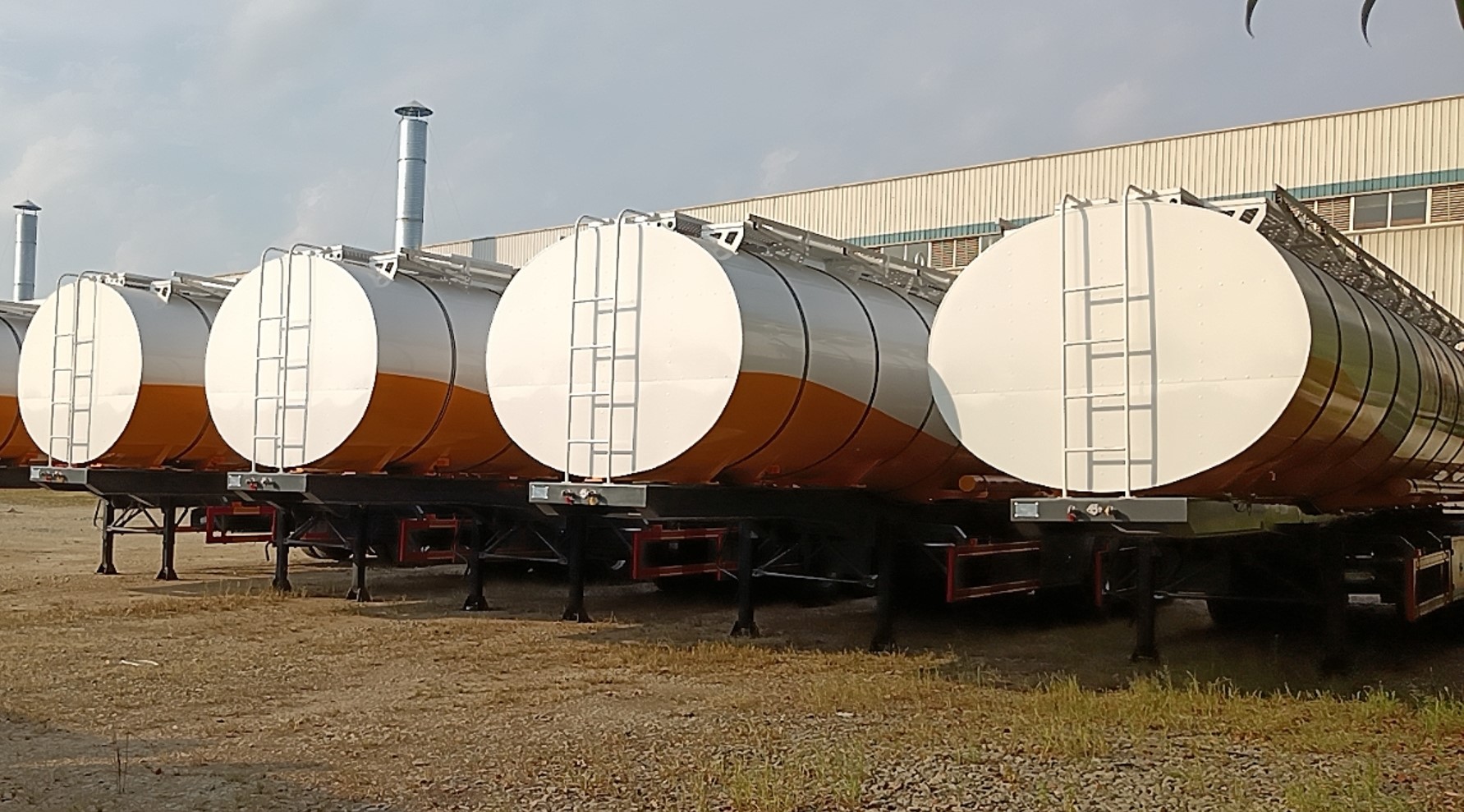

The basic pictures and details:

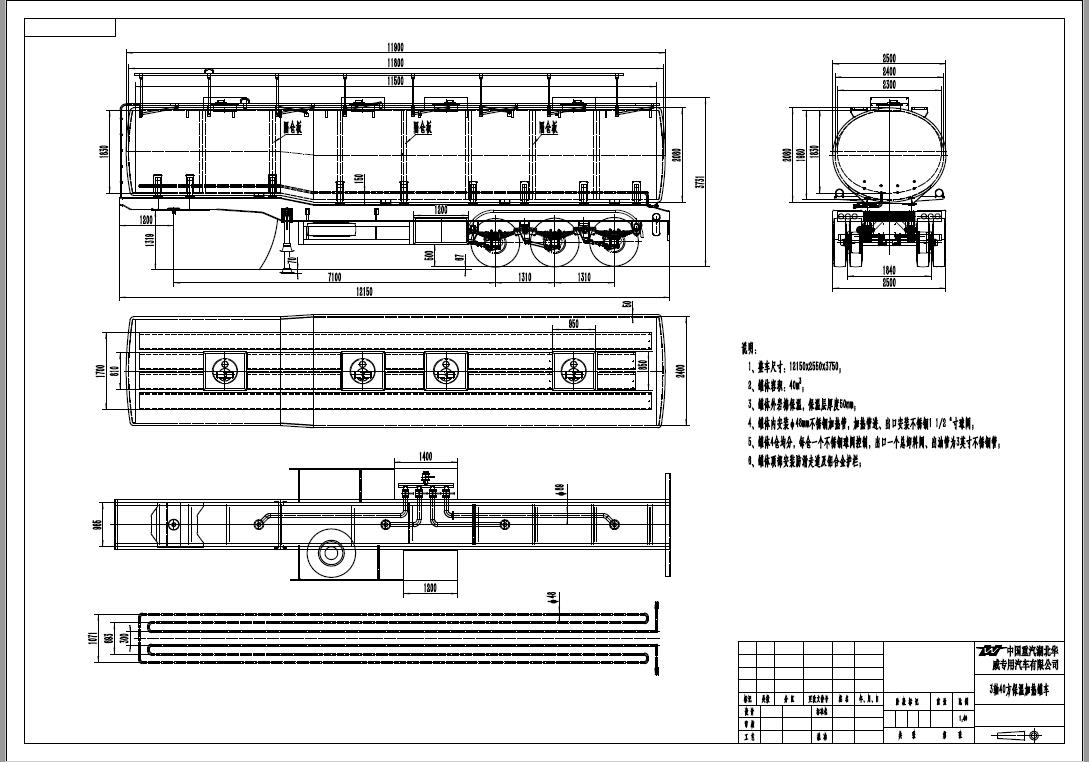

The Drawing of the truck designed specifically by SINOTRUK Huawin

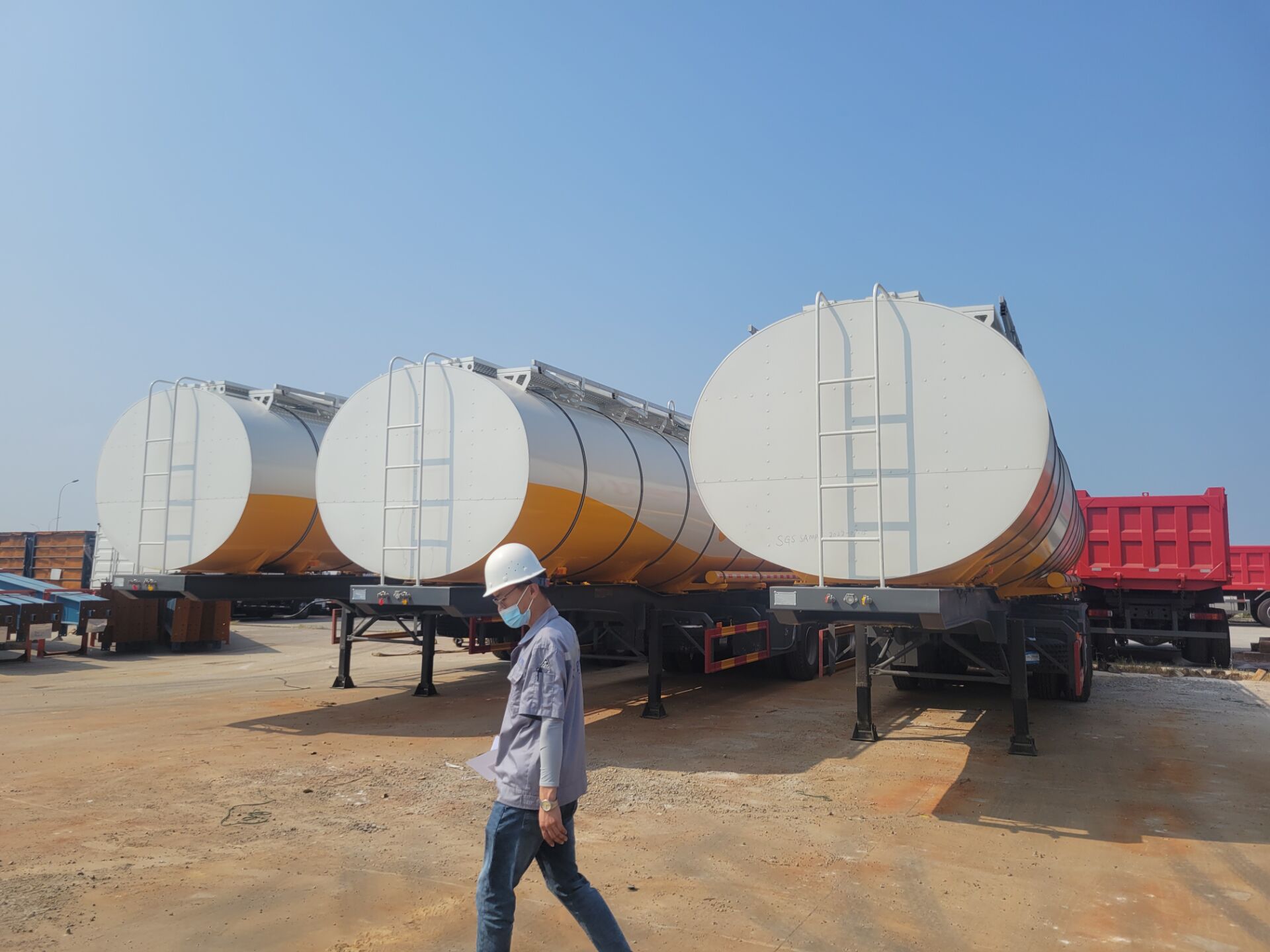

Photos of shipment at the dock
The parameters: SINOTRUK 3-axle Palm Oil Tanker Semi Trailer (40CBM)
Main Dimensions | |||
Overall Length | 11565mm |
| |
Overall Height | 3660mm | ||
Tare Weight | 12750KGS | ||

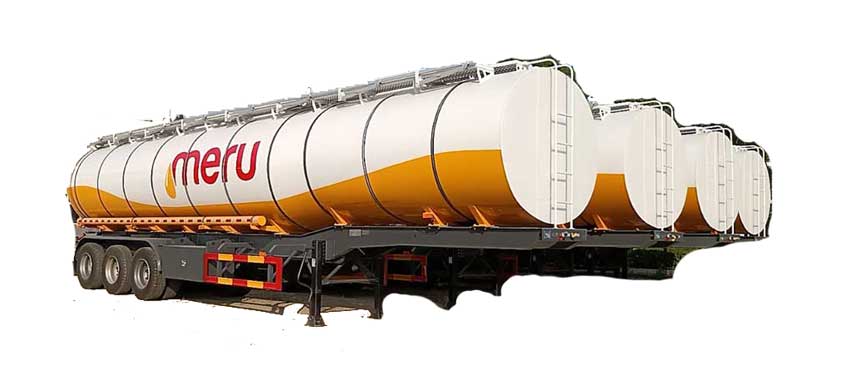

Photo only for reference, final product can be made according to exact requirements | |||
Tank Body | |||
Shape | Oval Cylinder | ||
Total Volume（m3） | 40CBM (4 compartments) 4*10,000L | ||
Tanker Body Material | 5mm steel / Q235 high tensile strength steel | ||
End plate | 6mm steel sheet/Q235 high tensile strength steel | ||
Manhole cover | 500mm*4 | ||
Discharging valve | 1 sets 3 inch SS discharging Ball valve | ||
Insulation Layer | 50mm rock wool insulation layer, outsourcing 1.2mm cold-rolled sheet | ||
Top | With stainless steel 304 steam pipe, non-slip walkway above the tank. | ||
Inner Body | Epoxy coating inside the tank. | ||
Chassis | |||
Main Beams | Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation; | ||
Axle | 3 axles | ||
FUWA1 Brand 13 ton | |||
Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | ||
King Pin | JOST brand 2” bolt-in king pin | ||
Suspension | German design heavy duty mechanical suspension | ||
Pneumatic Braking System | WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. | ||
Wheel rim | 9.0-22.5 wheel rim, 13 pieces | ||
Tire | 315/80R22.5 tubeless ire with one spare tire, 13 pieces | ||
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | ||
Accessories | One standard tool box | ||
